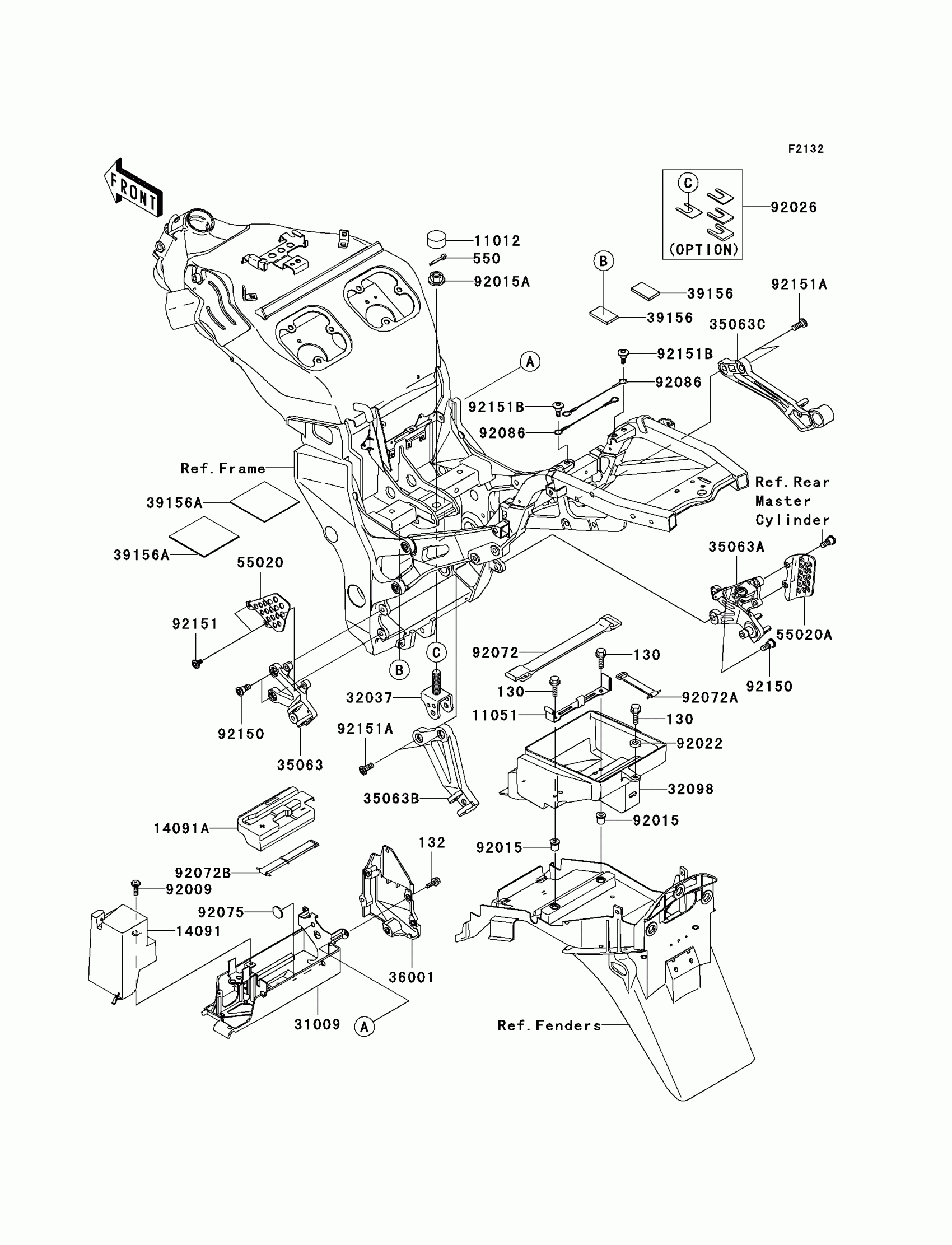

Kawasaki Ninja® ZX™-12R Battery Case Diagram

#

Description
Price

130

BOLT-FLANGED,6X25

130J0625

Unavailable

132

BOLT-FLANGED-SMALL,6X16

132J0616

Unavailable

550

PIN-COTTER,4.0X25

550D4025

Unavailable

11012

CAP,AXLE NUT

11012-1592

$5.76

11051

BRACKET,TOOL CASE

11051-1377

$17.86

14091

COVER,FUSE

14091-1238

$48.53

14091A

COVER,BATTERY

14091-1288

$45.64

31009

CASE-COMP-BATTERY

31009-1056

$139.89

32037

BRACKET-SHOCKABSORBER

32037-1800

$46.41

32098

CASE-TOOL

32098-1131

$112.33

35063

STAY,FR,LH

35063-1062

$167.20

35063A

STAY,FR,RH

35063-1063

$179.45

35063B

STAY,RR,LH

35063-1064

$147.95

35063C

STAY,RR,RH

35063-1065

$147.95

36001

COVER-SIDE,FRAME,RH,F.S.BLACK

36001-1643-8F

Unavailable

39156

PAD

39156-1649

$2.47

39156A

PAD

39156-1650

$11.59

55020

GUARD,FRONT STEP,LH

55020-1696

$30.61

55020A

GUARD,FRONT STEP,RH

55020-1697

$30.61

92009

SCREW,5X16

92009-1909

$1.47

92015

NUT

92015-1700

$6.55

92015A

NUT,FLANGED,16MM

92015-1881

$21.63

92022

WASHER,7X16X1.2

92022-1344

$2.99

92026

SPACER,SET

92026-1586

$124.23

92072

BAND,L=150

92072-1203

$10.80

92072A

BAND,TOOL

92072-1349

$15.98

92072B

BAND,L=290

92072-1377

$20.05

92075

DAMPER,RUBBER

92075-261

$3.85

92086

WIRE,L=150

92086-1075

Unavailable

92150

BOLT,SOCKET,8X20

92150-1839

$1.57

92151

BOLT,6MM

92151-1334

$2.34

92151A

BOLT,SOCKET,10X30

92151-1372

$5.81

92151B

BOLT,SOCKET,6X21

92151-1880

Unavailable
