1993 Kawasaki Ninja® ZX™-11 Swing ARM Diagram

← All diagrams

Find the part on the Swing ARM diagram for your 1993 Kawasaki Ninja® ZX™-11, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

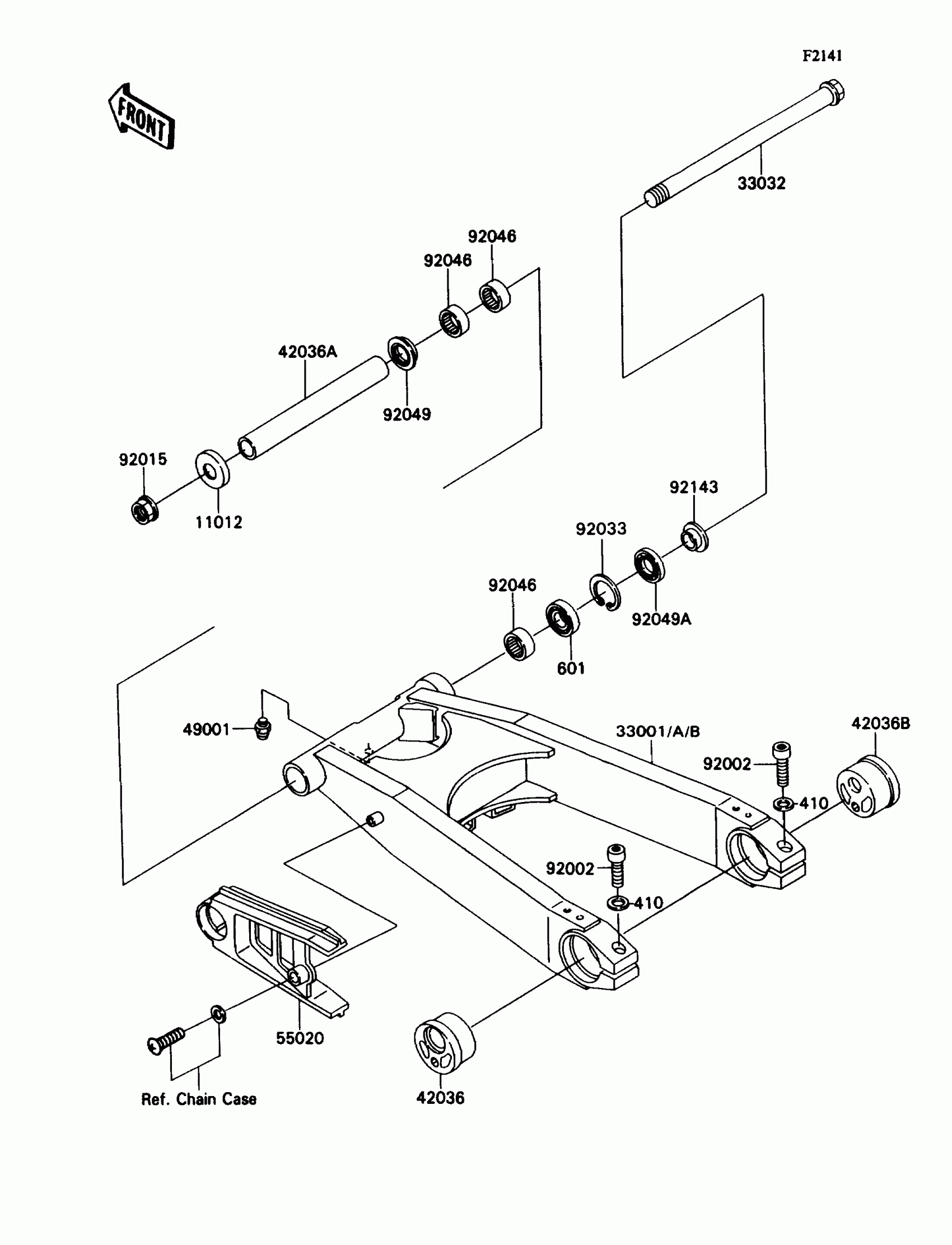

1993 Kawasaki Ninja® ZX™-11 Swing ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-1658

1
Out of stock

33001B

ARM-COMP-SWING,BLACK

33001-1351-10

1
Out of stock

33032

SHAFT-SWING ARM

33032-1157

1
Out of stock

42036

SLEEVE,REAR AXLE,LH

42036-1153

1
Out of stock

42036A

SLEEVE,SWING ARM,L=237

42036-1264

1
Out of stock

42036B

SLEEVE,REAR AXLE,RH

42036-1265

1
Out of stock

49001

NIPPLE-GREASE

49001-1051

1
Out of stock

55020

GUARD,CHAIN

55020-1365

1
Out of stock

92002

BOLT,SOCKET,10X40

92002-1452

1
Out of stock

92015

NUT,FLANGED,20MM

92015-1724

1
Out of stock

92033

RING-SNAP,42MM

92033-1041

1
Out of stock

92046

BEARING-NEEDLE,BM2817

92046-1111

1
Out of stock

92049

SEAL-OIL,28X34X5.7

92049-1181

1
Out of stock

92049A

SEAL-OIL,MHSA25X42X6

92049-1314

1
Out of stock

92143

COLLAR,SWING ARM,L=12.5

92143-1227

1
Out of stock

410

W-PLAIN-S

410E1000

1
Out of stock

601

BEARING-BALL,#6004

601A6004

1
Out of stock
