1993 Kawasaki Ninja® ZX™-11 Front HUB Diagram

← All diagrams

Find the part on the Front HUB diagram for your 1993 Kawasaki Ninja® ZX™-11, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

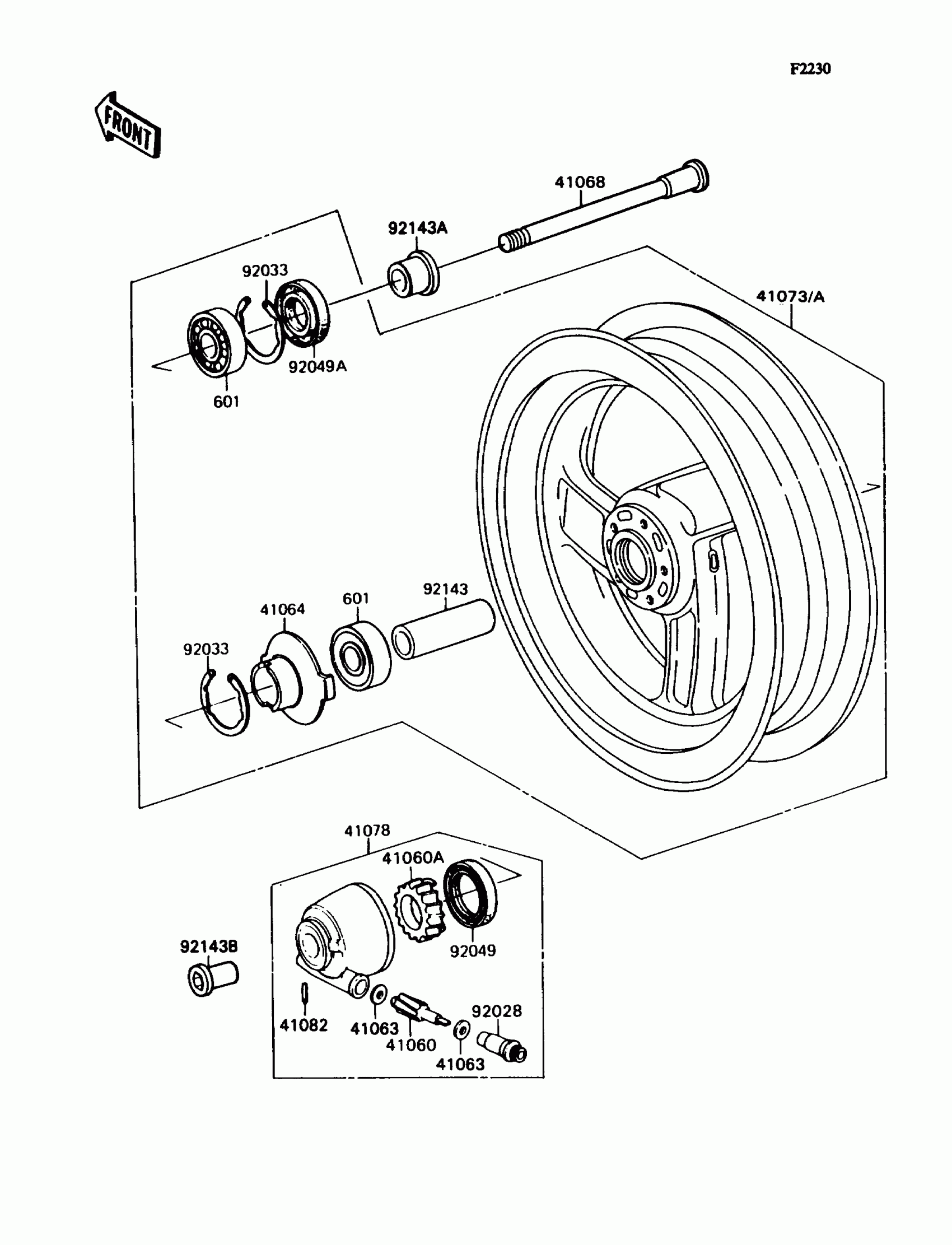

1993 Kawasaki Ninja® ZX™-11 Front HUB Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41060

GEAR-METER SCREW,9T

41060-1123

1

$19.10

In stock

41060A

1

$25.68

In stock

41063

WASHER,5.1X9X0.4

41063-001

1

$4.17

In stock

41064

RECEIVER-SPEEDOMETER

41064-1054

1
Out of stock

41068

AXLE,FR

41068-1311

1
Out of stock

41073A

WHEEL-ASSY,FR,GRAY

41073-1463-JF

1
Out of stock

41078

CASE-ASSY-METER GEAR

41078-1075

1
Out of stock

41082

PIN,SPRING

41082-001

1
Out of stock

92028

BUSHING,SPEEDOMETER

92028-1066

1
Out of stock

92033

RING-SNAP,47MM

92033-1042

1
Out of stock

92049

SEAL-OIL,BJN30427-C3

92049-1057

1
Out of stock

92049A

SEAL-OIL

92049-1337

1
Out of stock

92143

COLLAR,20.2X29X89

92143-1199

1
Out of stock

92143A

COLLAR,FR AXLE,L=19

92143-1300

1
Out of stock

92143B

COLLAR,FR AXLE,L=43.5

92143-1301

1
Out of stock

601

BEARING-BALL,6204UUC3

601B6204UU

1
Out of stock
