1993 Kawasaki Ninja® ZX™-11 Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 1993 Kawasaki Ninja® ZX™-11, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

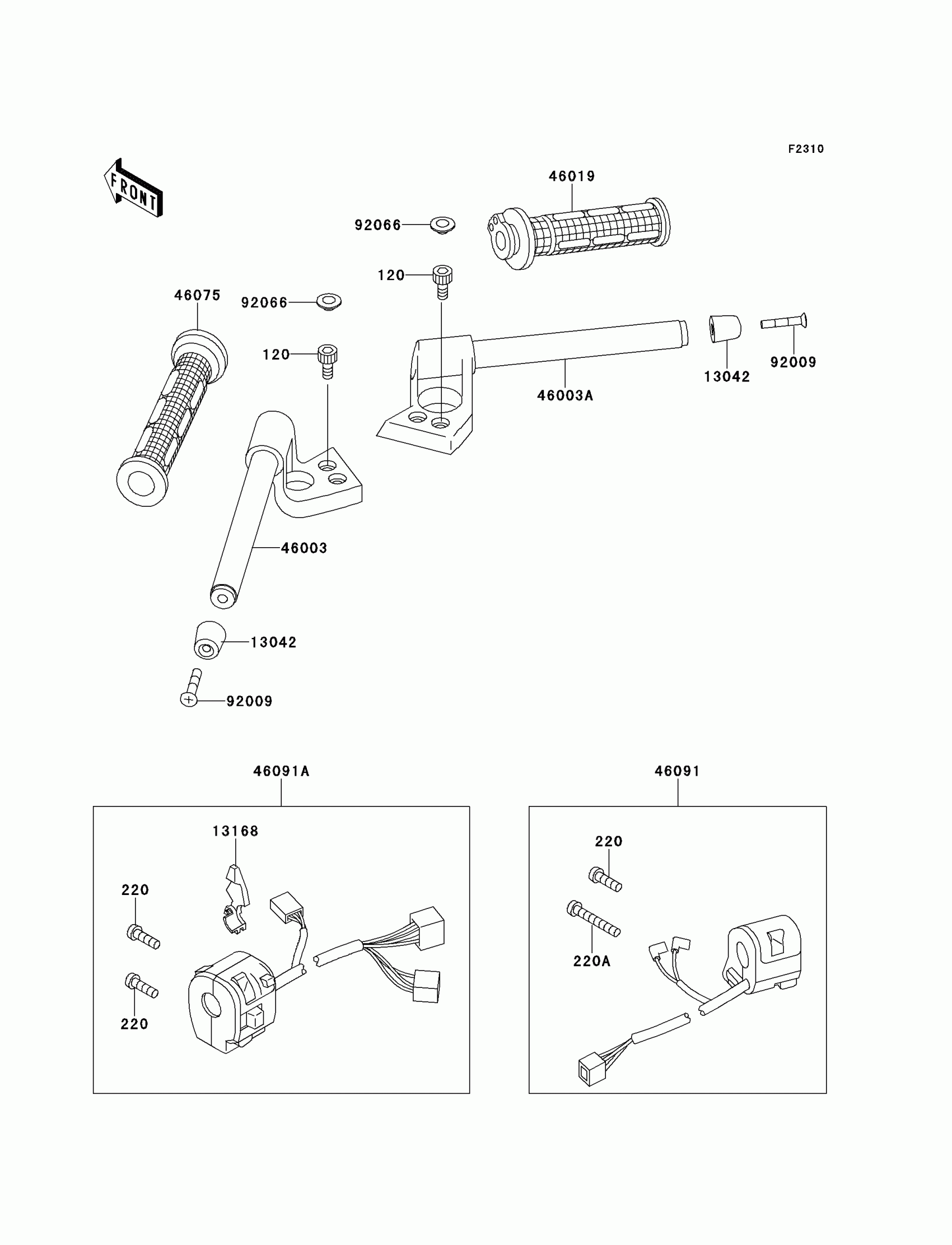

1993 Kawasaki Ninja® ZX™-11 Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13042

WEIGHT,HANDLE

13042-1005

1

$30.18

In stock

13168

LEVER,CHOKE

13168-1448

1

$20.12

In stock

46003C

HANDLE,LH,BLACK

46003-1336-10

1

$223.74

In stock

46003F

HANDLE,RH,BLACK

46003-1337-10

1

$223.74

In stock

46019

GRIP-ASSY,THROTTLE

46019-1072

1

$34.15

In stock

46075

GRIP,LH

46075-1088

1

$15.02

In stock

46091

1

$151.00

In stock

46091A

HOUSING-ASSY-CONTROL,LH

46091-1534

1
Out of stock

92009

SCREW,8X45

92009-1257

1
Out of stock

92066

PLUG

92066-1277

1

$5.90

In stock

120

BOLT-SOCKET,8X20

120S0820

1
Out of stock

220

SCREW-PAN-CROS

220C0520

1

$1.58

In stock
