1993 Kawasaki Ninja® ZX™-11 Shock Absorber Diagram

← All diagrams

Find the part on the Shock Absorber diagram for your 1993 Kawasaki Ninja® ZX™-11, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

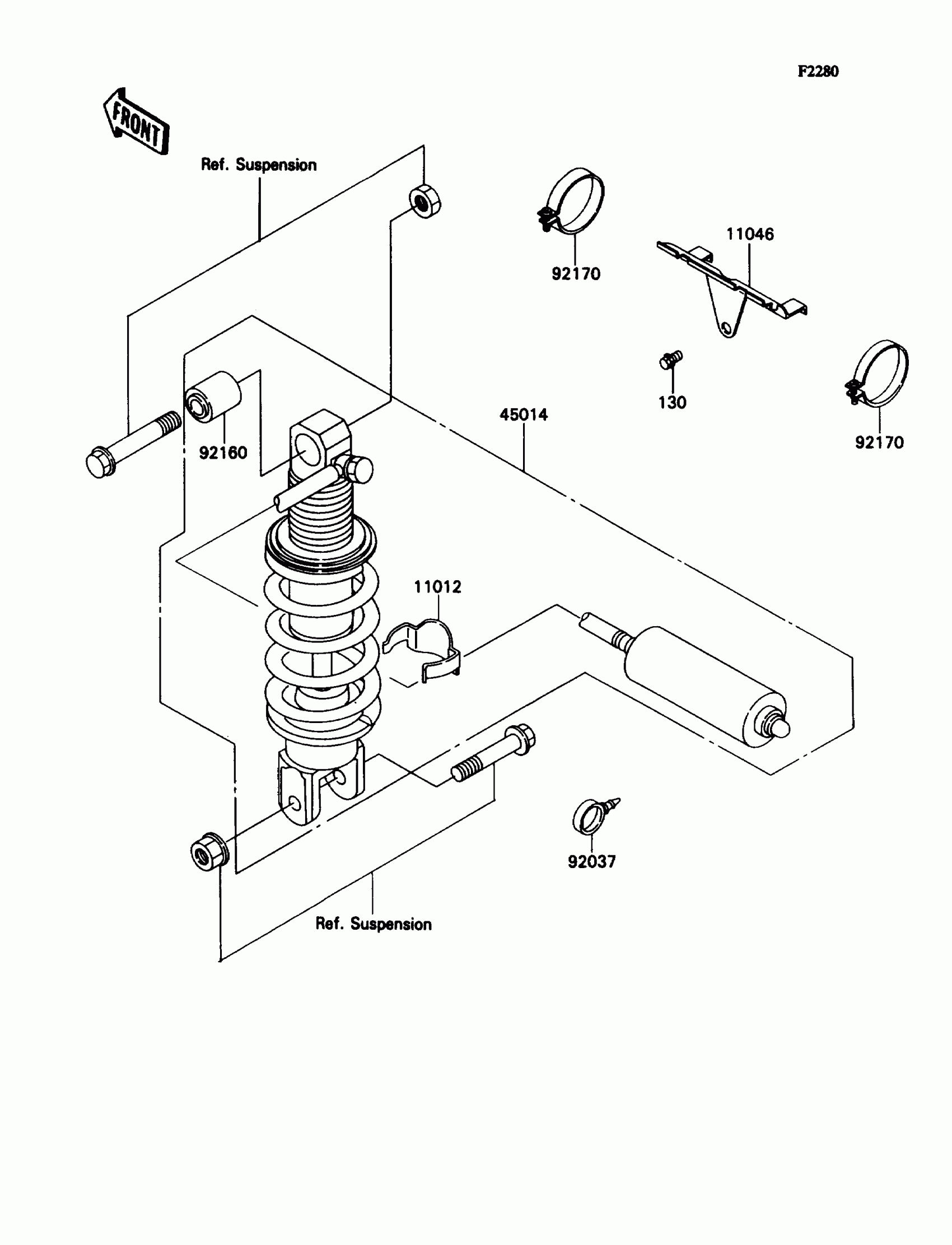

1993 Kawasaki Ninja® ZX™-11 Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,SHOCKABSORBER

11012-1398

1
Out of stock

11046

BRACKET,GAS TANK

11046-1935

1
Out of stock

45014

SHOCKABSORBER

45014-1465

1
Out of stock

92037

CLAMP,HOSE

92037-1827

1
Out of stock

92160

DAMPER,SHOCKABSORBER

92160-1161

1
Out of stock

92170

CLAMP

92170-1280

1
Out of stock

130

BOLT-FLANGED,6X14,BLACK

130J0614

1
Out of stock
← Rear HUB Suspension →

More Suspension & Wheels diagrams
