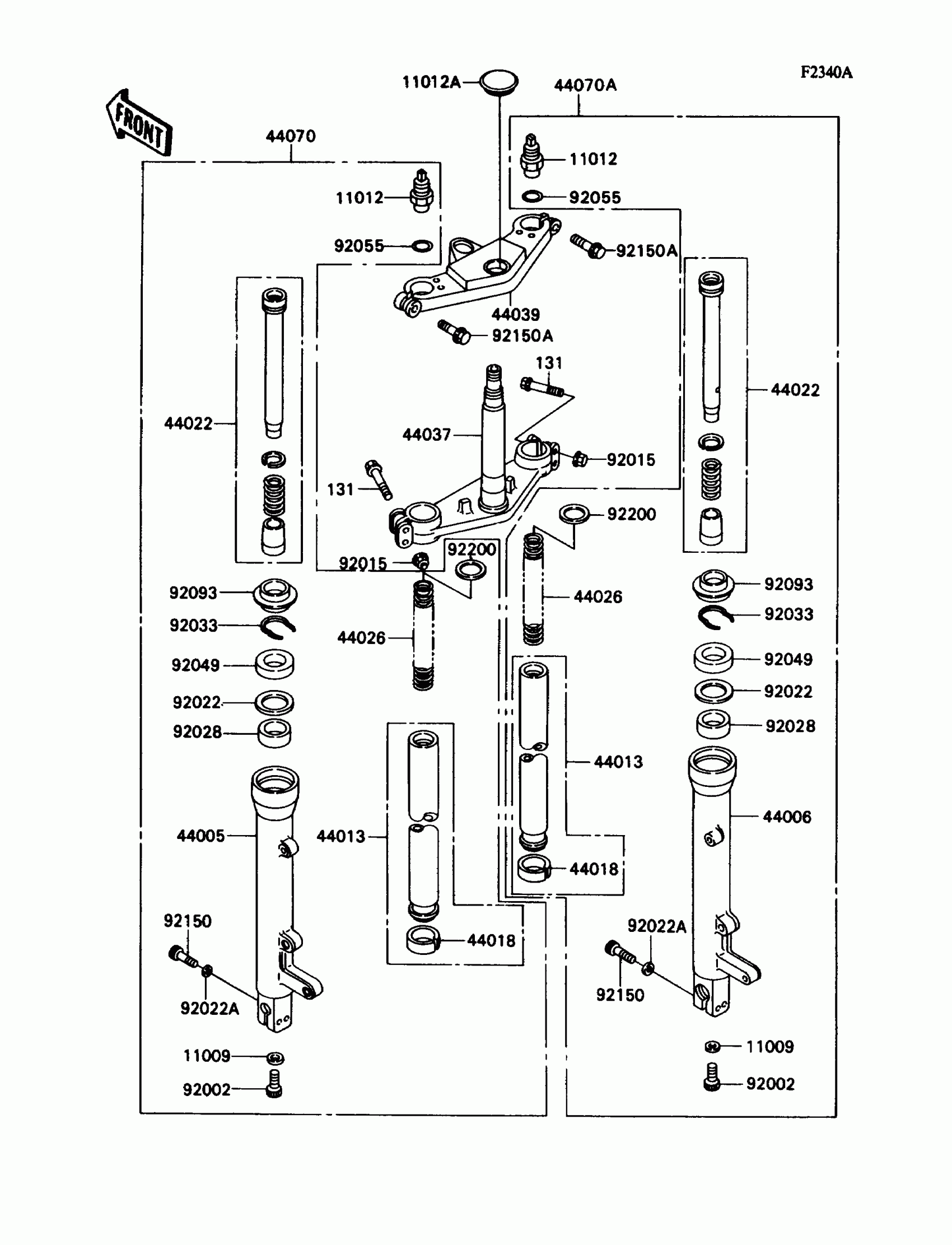

Kawasaki Ninja® ZX™-11 Front Fork(ZX1100-C3/C4) Diagram

Description

Price

11009

GASKET,FORK DRAIN PLUG

11009-1553

$4.41

11012

CAP,FORK

11012-1744

Unavailable

11012A

CAP,FORK,BLACK

11012-1750-10

Unavailable

44005

PIPE-LEFT FORK OUTER,BLACK

44005-1305-10

$475.38

44006

PIPE-RIGHT FORK OUTER,BLACK

44006-1302-10

$475.38

44013

PIPE-FORK INNER

44013-1316

Unavailable

44018

PISTON-FORK,INNER PIPE

44018-1053

$26.23

44022

CYLINDER-FORK

44022-1251

Unavailable

44026

SPRING-FRONT FORK

44026-1457

$91.54

44037

HOLDER-FORK UNDER

44037-1266

$583.65

44039

HOLDER-FORK UPPER,BLACK

44039-1200-10

$175.42

44070

DAMPER-ASSY,FORK,LH,BLACK

44070-1167-10

$728.05

44070A

DAMPER-ASSY,FORK,RH,BLACK

44070-1168-10

$678.60

92002

BOLT,FORK DRAIN

92002-1650

$12.12

92015

NUT,FLANGED,8MM

92015-1485

$4.46

92022

WASHER

92022-1299

$6.82

92022A

WASHER

92022-1598

$8.20

92028

BUSHING

92028-1553

$20.21

92033

RING-SNAP

92033-1077

$3.94

92049

SEAL-OIL,FORK OUTER TUBE

92049-1392

$23.37

92055

RING-O

92055-1123

$4.93

92093

SEAL,FORK OUTER TUBE

92093-1330

$22.28

92150

BOLT,SOCKET,8X40

92150-1194

$2.29

92150A

BOLT,FLANGED,10X45

92150-1210

$9.31

92200

WASHER

92200-1023

Unavailable

131

BOLT-FLANGED

131G0850

Unavailable
