1993 Kawasaki Ninja® ZX™-11 Suspension Diagram

← All diagrams

Find the part on the Suspension diagram for your 1993 Kawasaki Ninja® ZX™-11, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

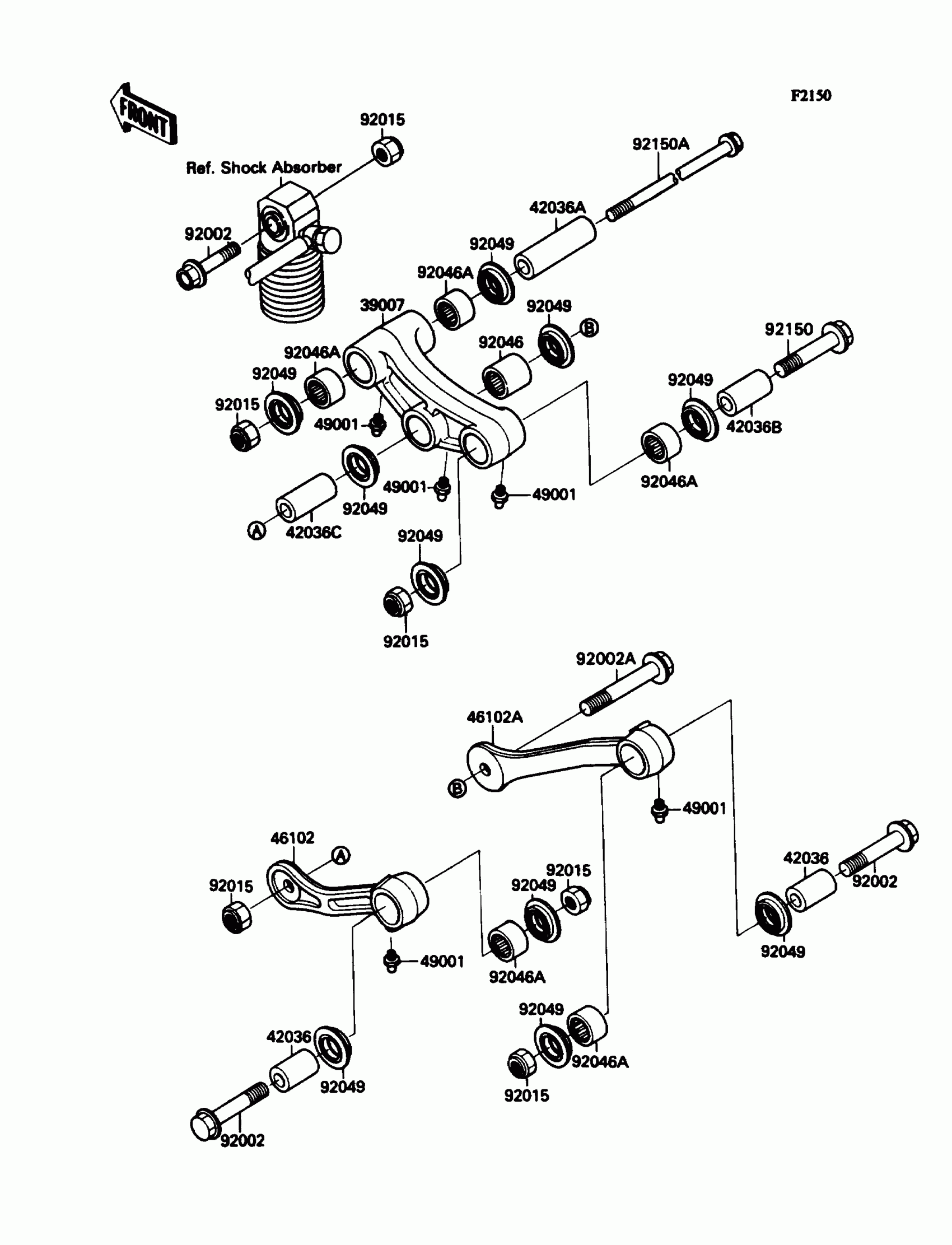

1993 Kawasaki Ninja® ZX™-11 Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39007

ARM-SUSP,UNI TRAK

39007-1107

1
Out of stock

42036

SLEEVE,12.1X20X32

42036-1077

1
Out of stock

42036A

SLEEVE,12.1X20X70

42036-1079

1
Out of stock

42036B

SLEEVE,12.1X20X40

42036-1108

1
Out of stock

42036C

SLEEVE,12.1X20X50

42036-1111

1
Out of stock

46102

ROD,SUSPENSION,LH

46102-1248

1
Out of stock

46102A

ROD,SUSPENSION,RH

46102-1249

1
Out of stock

49001

NIPPLE-GREASE

49001-1051

1
Out of stock

92002

BOLT,FLANGED,12X60

92002-1464

1
Out of stock

92002A

BOLT,SUSPENSION ARM,12MM

92002-1785

1
Out of stock

92015

NUT,LOCK,12MM,BLACK

92015-1190

1
Out of stock

92046

BEARING-NEEDLE,BM202726

92046-1110

1
Out of stock

92046A

BEARING-NEEDLE,BM202715

92046-1112

1
Out of stock

92049

SEAL-OIL,ARM

92049-1109

1
Out of stock

92150

BOLT,FLANGED,12X70

92150-1115

1
Out of stock

92150A

BOLT,FLANGED,12X165

92150-1116

1
Out of stock
