1995 Kawasaki Ninja® ZX™-11 Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1995 Kawasaki Ninja® ZX™-11, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

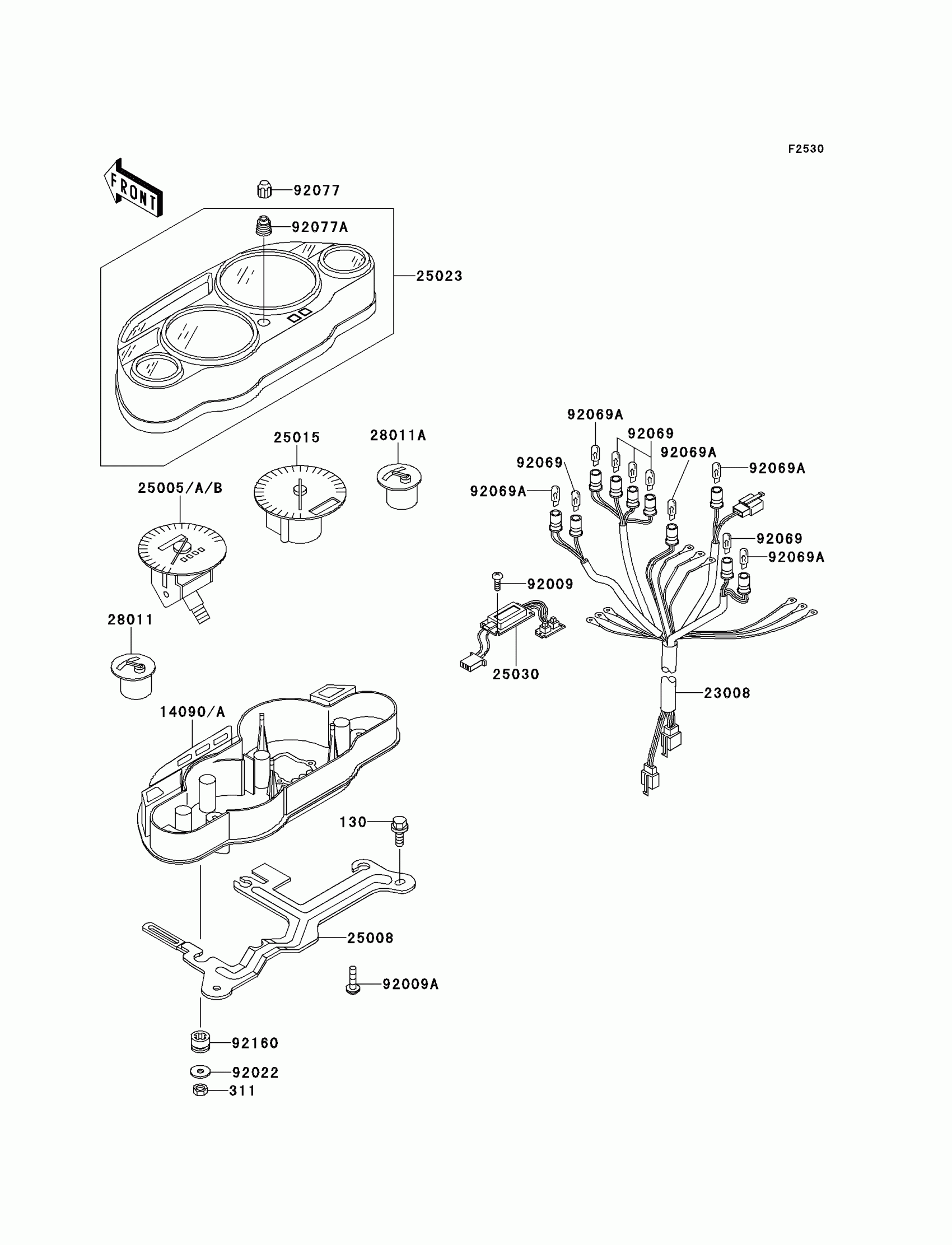

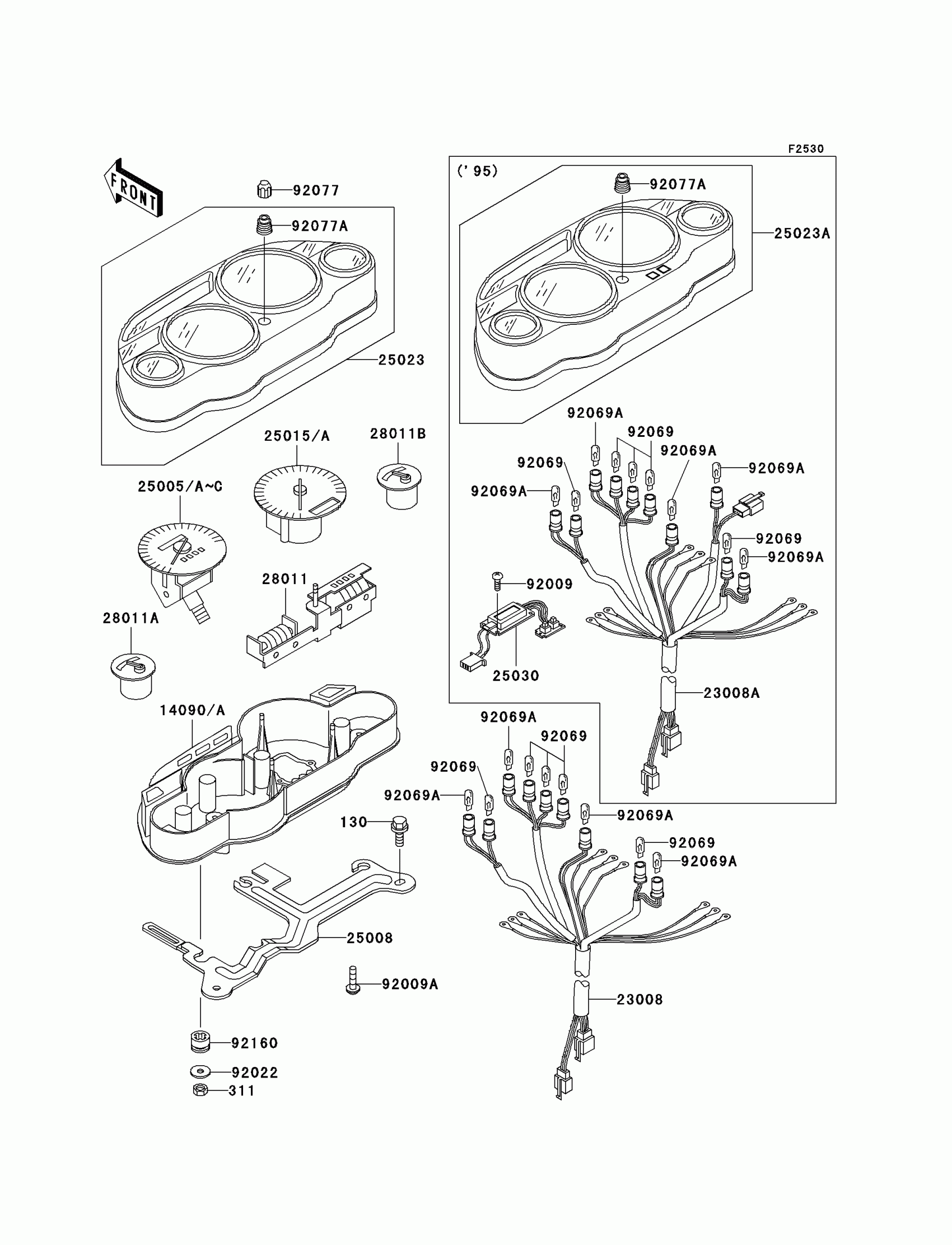

1995 Kawasaki Ninja® ZX™-11 Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X14,BLACK

130J0614

1
Out of stock

311

NUT 6MM

311B0600

1
Out of stock

14090A

COVER,METER HOUSING

14090-1541

1
Out of stock

23008A

SOCKET-ASSY,METER

23008-1543

1

$142.35

In stock

25008

BRACKET-METER

25008-1199

1

$86.76

In stock

25015A

1

$461.97

In stock

25023A

1

$152.26

In stock

25030

CLOCK,DIGITAL

25030-1003

1

$517.43

In stock

28011A

METER,FUEL

28011-1131

1

$128.17

In stock

28011B

METER,TEMP

28011-1132

1

$128.17

In stock

92009

SCREW,TAPPING,3X12

92009-1255

1
Out of stock

92009A

SCREW,TAPPING,4X14

92009-1503

1
Out of stock

92022

WASHER,6.2X18X1.2

92022-1369

1

$3.56

In stock

92069

BULB,12V 3.4W,T10

92069-1007

1

$3.97

In stock

92069A

BULB,12V 1.7W,T10

92069-1059

1

$3.94

In stock

92077

KNOB,TRIP RESET

92077-1094

1

$8.80

In stock

92077A

KNOB,TRIP RESET

92077-1112

1

$8.88

In stock

92160

DAMPER

92160-1461

1

$7.39

In stock

25005B

SPEEDOMETER,MPH

25005-1580

1
Out of stock

25005C

SPEEDOMETER,KPH

25005-1581

1
Out of stock
