1995 Kawasaki Ninja® ZX™-11 Ignition Switch/locks/reflectors Diagram

← All diagrams

Find the part on the Ignition Switch/locks/reflectors diagram for your 1995 Kawasaki Ninja® ZX™-11, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

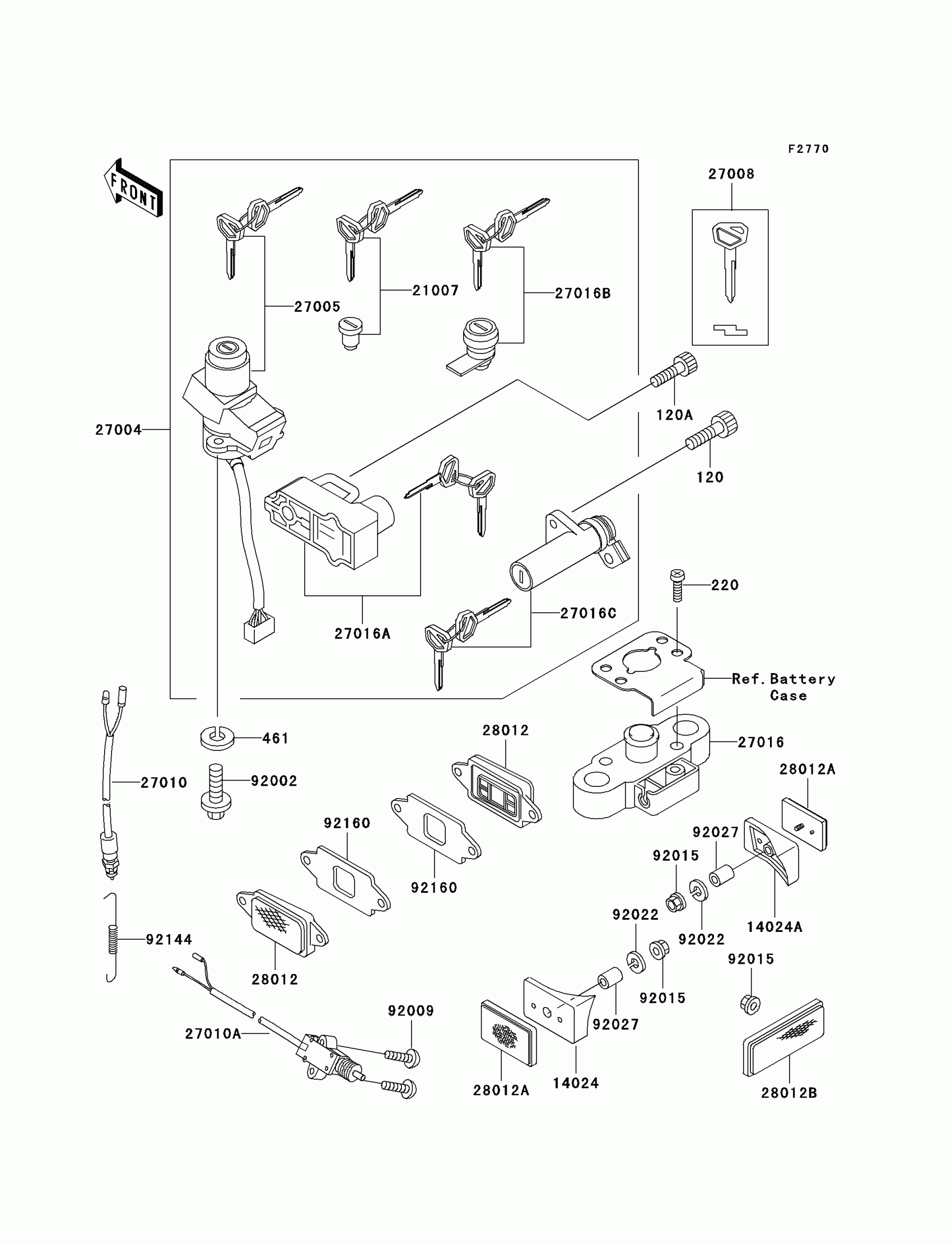

1995 Kawasaki Ninja® ZX™-11 Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,5X12

120S0512

1
Out of stock

120A

BOLT-SOCKET,6X16

120S0616

1
Out of stock

220

SCREW-PAN HEAD,6X30

220C0630

1
Out of stock

461

WASHER-SPRING

461L0600

1
Out of stock

14024

COVER,REFLECTOR,LH

14024-1940

1
Out of stock

14024A

COVER,REFLECTOR,RH

14024-1941

1
Out of stock

21007

ROTOR,LOCK,TANK CAP

21007-5037

1
Out of stock

27004

SWITCH-ASSY

27004-5452

1
Out of stock

27005

SWITCH-ASSY-IGNITION

27005-5101

1
Out of stock

27008

KEY-LOCK,BLANK

27008-1173

1
Out of stock

27010

SWITCH,BRAKE LAMP

27010-1093

1
Out of stock

27010A

SWITCH,SIDE STAND

27010-1226

1
Out of stock

27016

LOCK-ASSY,SEAT STRIKER

27016-1098

1
Out of stock

27016A

LOCK-ASSY,HELMET

27016-5203

1
Out of stock

27016B

LOCK-ASSY,TOOL BOX

27016-5204

1
Out of stock

27016C

LOCK-ASSY,SEAT

27016-5205

1
Out of stock

28012

REFLECTOR-REFLEX,FR,SIDE

28012-1068

1
Out of stock

28012A

REFLECTOR-REFLEX,RR

28012-1072

1
Out of stock

28012B

REFLECTOR-REFLEX

28012-1077

1
Out of stock

92002

BOLT,TORX,6X16

92002-1333

1
Out of stock

92009

SCREW,5X20

92009-1459

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92022

WASHER,5.2X16X1.2

92022-263

1
Out of stock

92027

COLLAR,5.6X8X14.5

92027-1789

1
Out of stock

92144

SPRING,REAR BRAKE SWITCH

92144-1283

1
Out of stock

92160

DAMPER,REFLECTOR

92160-1192

1
Out of stock
