1995 Kawasaki Ninja® ZX™-11 Ignition System Diagram

← All diagrams

Find the part on the Ignition System diagram for your 1995 Kawasaki Ninja® ZX™-11, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

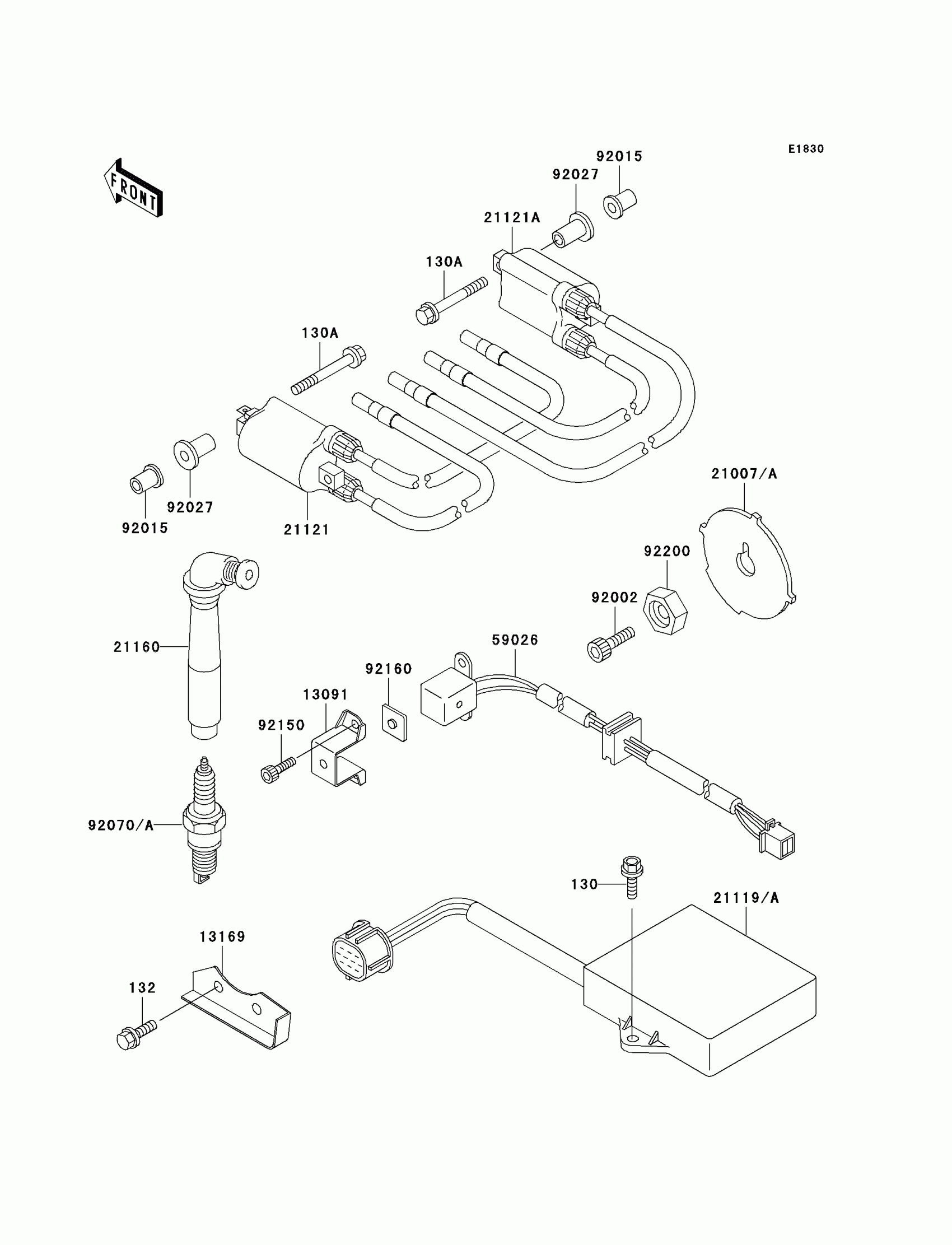

1995 Kawasaki Ninja® ZX™-11 Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X12

130G0612

1
Out of stock

130A

BOLT-FLANGED,6X45

130G0645

1
Out of stock

132

BOLT-FLANGED-SMALL

132G0612

1
Out of stock

13091

HOLDER

13091-1562

1

$8.73

In stock

13169

PLATE,CHAIN GUIDE

13169-1748

1

$14.63

In stock

21121

COIL-IGNITION,#1

21121-1220

1

$232.46

In stock

21121A

COIL-IGNITION,#2

21121-1221

1

$152.92

In stock

21160

CAP-ASSY-PLUG

21160-1087

1

$49.18

In stock

59026

COIL-PULSING

59026-1118

1

$150.54

In stock

92002

BOLT,SOCKET,8X25

92002-1442

1

$4.01

In stock

92015

NUT

92015-1700

1

$6.82

In stock

92027

COLLAR

92027-195

1

$5.21

In stock

92070

1

$5.67

In stock

92070A

Not Available As Spare Part - Friction Washer

1
Out of stock

92150

BOLT,SOCKET,5X14

92150-1180

1

$3.53

In stock

92160

DAMPER

92160-1091

1

$4.61

In stock

92200

WASHER,ROTOR

92200-1173

1
Out of stock

21007

ROTOR,PULSING

21007-1207

1
Out of stock

21007A

ROTOR,PULSING

21007-1214

1

$39.79

In stock

21119

IGNITER

21119-1370

1
Out of stock

21119A

IGNITER

21119-1386

1
Out of stock
