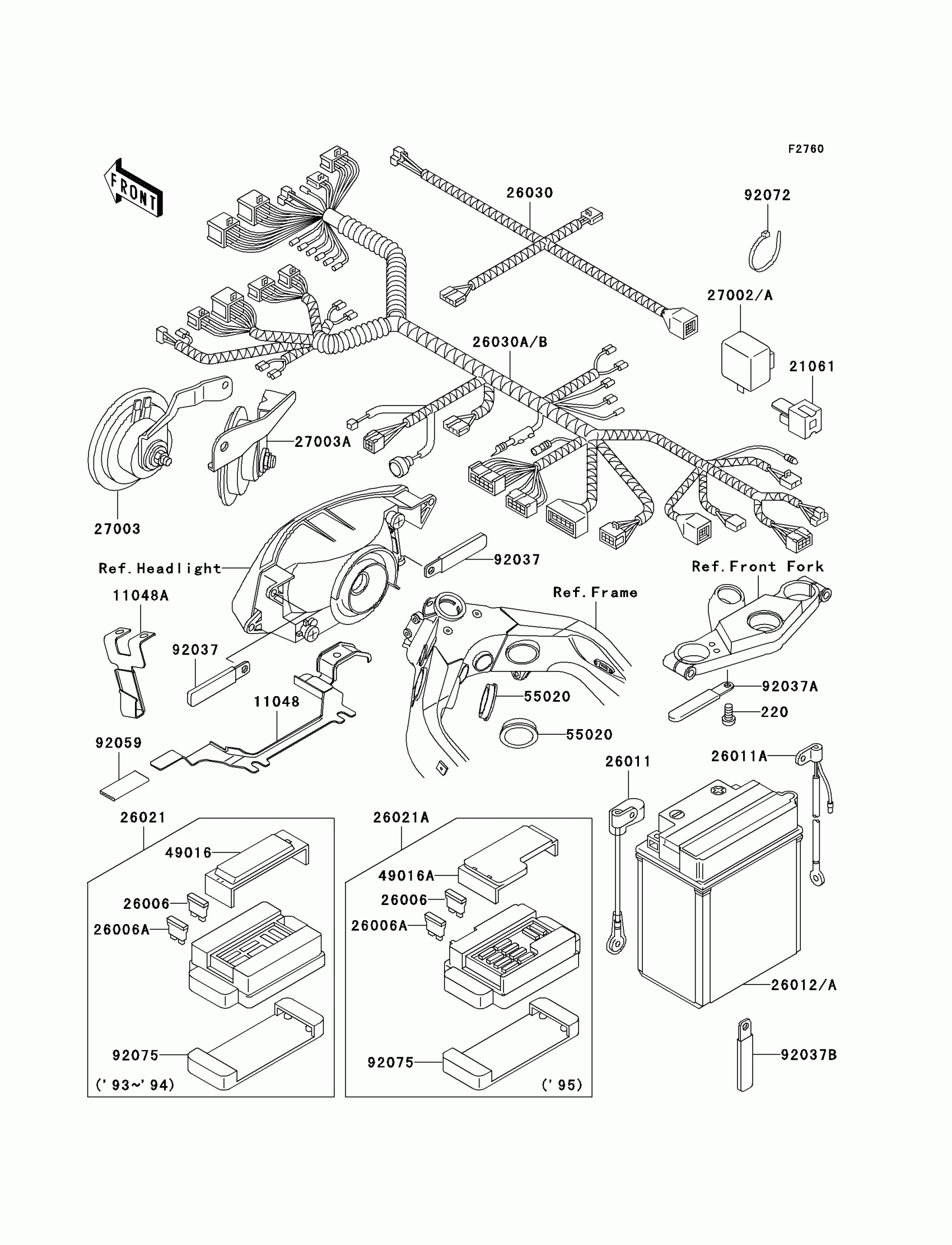

Kawasaki Ninja® ZX™-11 Chassis Electrical Equipment Diagram

Description

Price

220

SCREW-PAN-CROS,5X10

220C0510

Unavailable

11048

BRACKET,CLAMP

11048-1193

Unavailable

11048A

BRACKET,RELAY

11048-1241

Unavailable

26006

FUSE,BLADE,30A,GREEN

26006-1067

Unavailable

26006A

FUSE,10A-R

26006-1068

Unavailable

26011

WIRE-LEAD,BATTERY(-)

26011-1563

$25.88

26011A

WIRE-LEAD,BATTERY(+)

26011-1564

Unavailable

26021A

JUNCTION BOX

26021-1089

Unavailable

26030

HARNESS,FR

26030-1006

$88.98

26030B

HARNESS,MAIN

26030-1322

Unavailable

27002A

RELAY-ASSY,SIGNAL LAMP

27002-1092

$73.74

27003

HORN,LH

27003-1320

$85.46

27003A

HORN,RH

27003-1363

$85.46

49016A

COVER-SEAL,FUSE

49016-1177

Unavailable

55020

GUARD,HARNESS

55020-1481

Unavailable

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92037A

CLAMP,L=45

92037-1539

$4.42

92037B

CLAMP

92037-1993

$4.18

92059

TUBE,11X12X40

92059-1637

Unavailable

92072

BAND,L=202

92072-1195

$1.16

92075

DAMPER,JUNCTION BOX

92075-1688

$13.64

26012

BATTERY,YTX14-BS,12V 12AH

26012-1279

$125.31

26012A

BATTERY,YTX14-BS,12V 12AH

26012-1302

$125.31
