1995 Kawasaki Ninja® ZX™-11 Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 1995 Kawasaki Ninja® ZX™-11, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

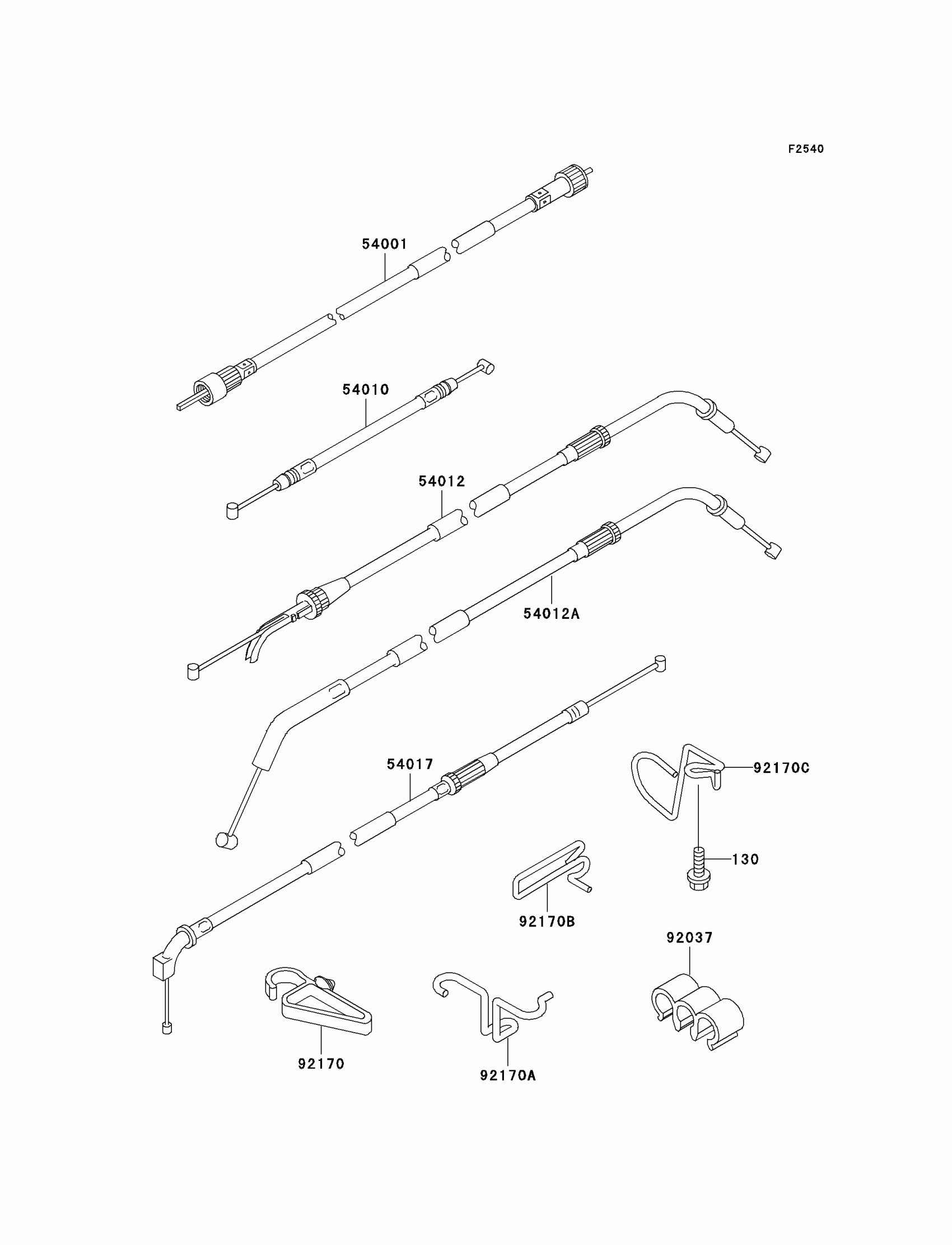

1995 Kawasaki Ninja® ZX™-11 Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED

130J0610

1
Out of stock

54001

CABLE-SPEEDOMETER

54001-1193

1

$20.43

In stock

54010

CABLE,SEAT LOCK

54010-1095

1

$41.00

In stock

54012

1

$37.59

In stock

54012A

1

$37.59

In stock

54017

CABLE-STARTER

54017-1088

1

$33.88

In stock

92037

CLAMP,CABLE

92037-1697

1

$7.49

In stock

92170

CLAMP,CABLE

92170-1186

1

$21.08

In stock

92170A

CLAMP,CABLE

92170-1207

1

$10.24

In stock

92170B

CLAMP,CABLE

92170-1389

1
Out of stock

92170C

CLAMP,CABLE

92170-1406

1
Out of stock
← Rear Master Cylinder Front Fork →

More Suspension & Wheels diagrams
