1995 Kawasaki Ninja® ZX™-11 Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1995 Kawasaki Ninja® ZX™-11, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

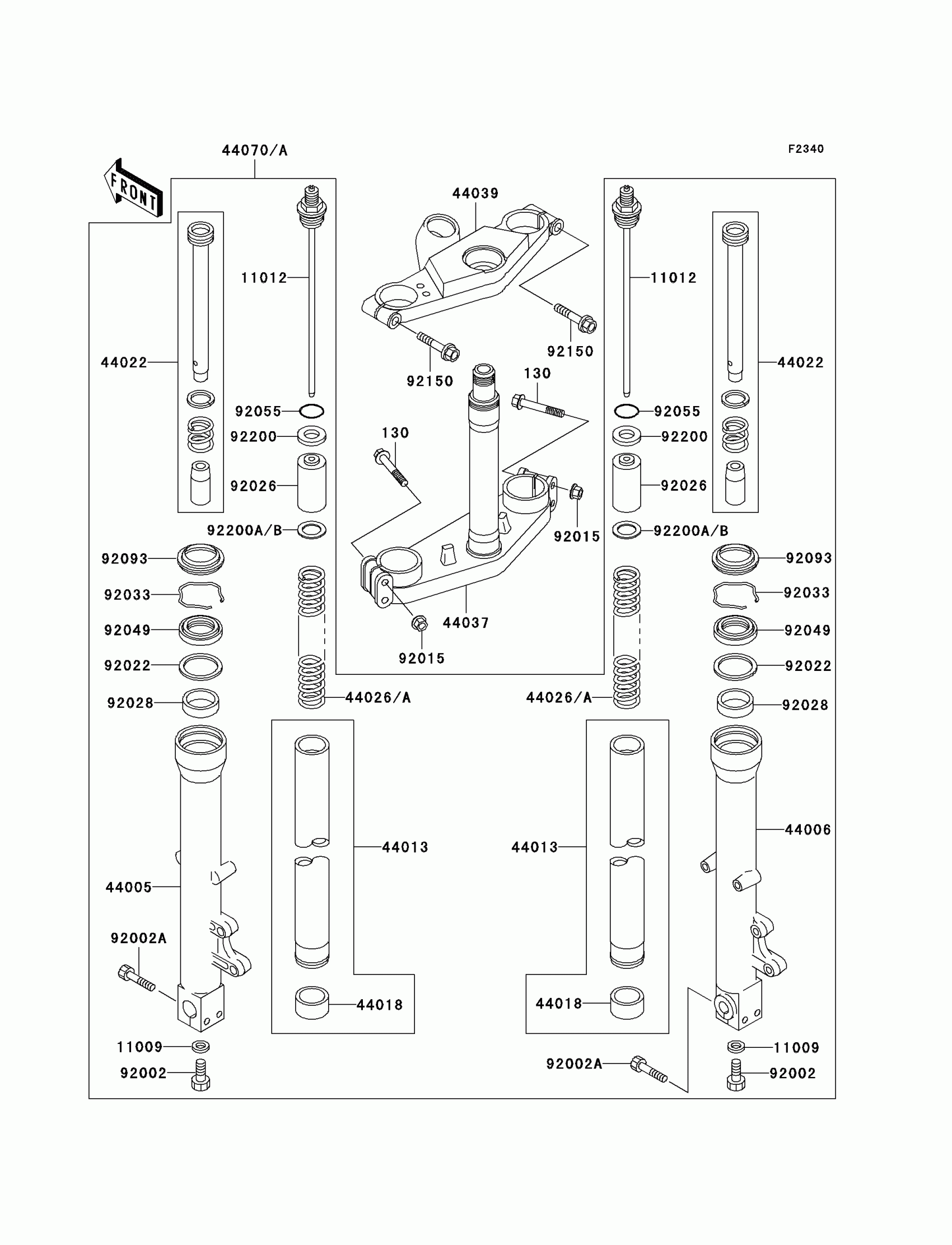

1995 Kawasaki Ninja® ZX™-11 Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X50

130G0850

1
Out of stock

11009

1

$4.41

In stock

11012

CAP,FORK

11012-1848

1
Out of stock

44005

1

$546.56

In stock

44006

PIPE-RIGHT FORK OUTER,C.GRAY

44006-1322-EZ

1
Out of stock

44013

PIPE-FORK INNER

44013-1384

1
Out of stock

44018

1

$26.23

In stock

44022

CYLINDER-FORK

44022-1287

1

$210.43

In stock

44026A

SPRING-FRONT FORK

44026-1579

1
Out of stock

44037

HOLDER-FORK UNDER

44037-1312

1
Out of stock

44039

HOLDER-FORK UPPER,C.GRAY

44039-1237-EZ

1

$292.91

In stock

44070

1

$1,755.40

In stock

92002

BOLT,FORK DRAIN

92002-1650

1
Out of stock

92002A

BOLT,SOCKET,8X45

92002-1847

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1485

1

$4.46

In stock

92022

WASHER

92022-1299

1

$6.82

In stock

92026

SPACER,FORK,L=125

92026-1421

1

$9.56

In stock

92028

BUSHING

92028-1581

1

$20.21

In stock

92033

RING-SNAP

92033-1077

1

$3.94

In stock

92049

SEAL-OIL,FORK OUTER TUBE

92049-1392

1
Out of stock

92055

RING-O

92055-1123

1

$4.93

In stock

92093

1

$22.28

In stock

92150

BOLT,FLANGED,10X45

92150-1210

1

$9.31

In stock

92200

WASHER

92200-1023

1
Out of stock

92200B

WASHER

92200-1253

1
Out of stock
