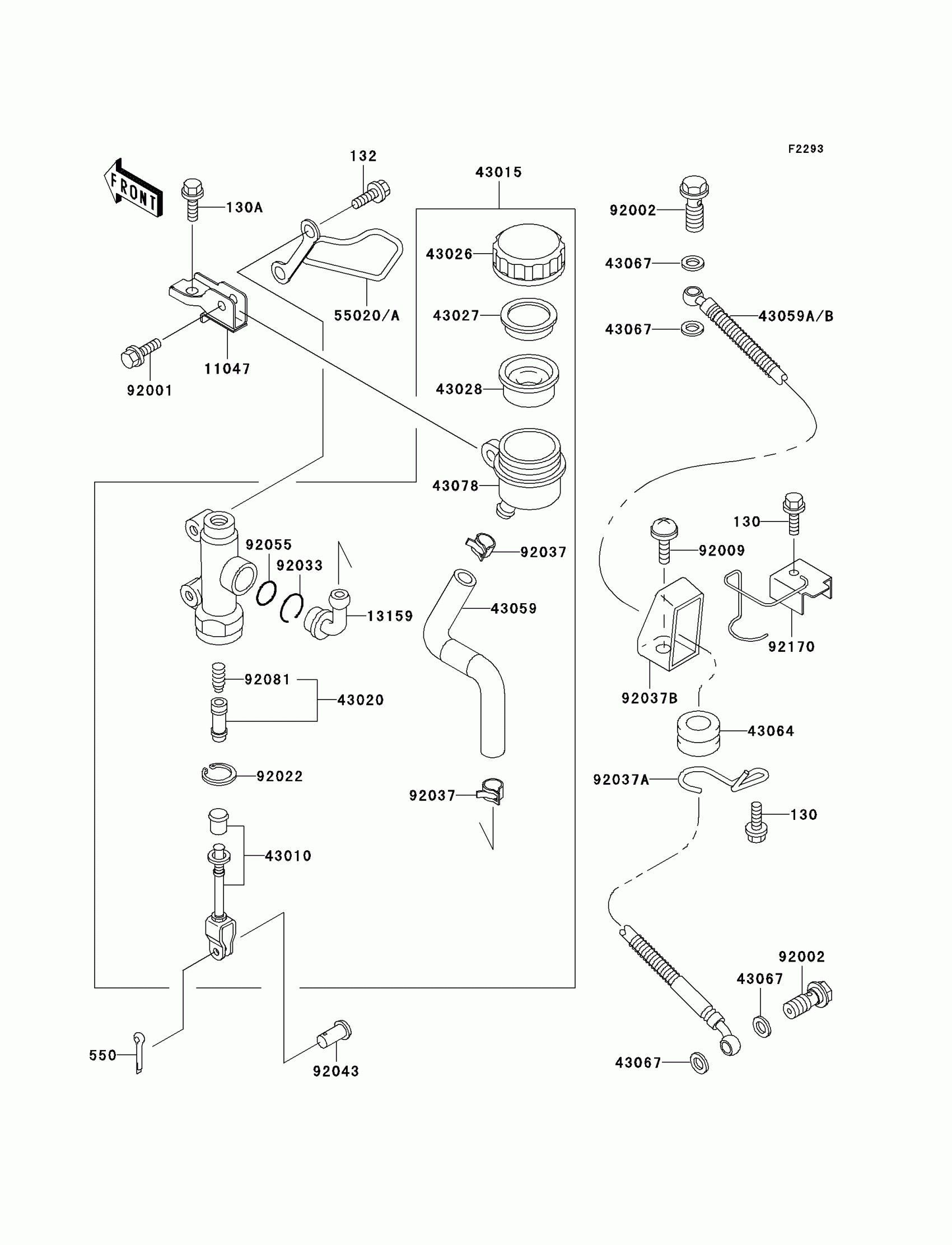

Kawasaki Ninja® ZX™-11 Rear Master Cylinder Diagram

Description

Price

11046

BRACKET,RESERVOIR TANK

11046-1929

Unavailable

43010

ROD-ASSY-BRAKE

43010-1067

Unavailable

43015

CYLINDER-ASSY-MASTER,RR

43015-1418

$424.38

43020

PISTON-COMP-BRAKE,RR

43020-1067

$67.66

43026

CAP-BRAKE

43026-1051

$30.63

43027

PLATE-DIAPHRAGM

43027-1051

$4.04

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$14.40

43059

HOSE-BRAKE,RR MASTER CYLINDER

43059-1566

$40.33

43059C

HOSE-BRAKE,RR

43059-1710

$105.03

43067

WASHER,10.5X15X1.5

43067-001

$1.57

43078

RESERVOIR,RR MASTER CYLINDER

43078-1058

$30.87

59071

JOINT,RR MASTER CYLINDER

59071-1132

$23.39

92001

BOLT,6X20

92001-1460

$2.99

92002

BOLT,SOCKET,8X25

92002-1442

$3.85

92002A

BOLT,OIL,L=23

92002-1888

$4.15

92009

SCREW,6X14

92009-1288

$2.99

92022

WASHER,CIRCRIP

92022-1601

Unavailable

92037

CLAMP,BRAKE HOSE

92037-1547

$11.81

92037A

CLAMP,HOSE

92037-1896

$22.64

92043

PIN,8MM

92043-1303

$2.98

92170A

CLAMP,HOSE

92170-1263

$8.12

92170C

CLAMP,HOSE

92170-1339

$12.98

130

BOLT-FLANGED

130J0610

Unavailable

130A

BOLT-FLANGED,6X14,BLACK

130J0614

Unavailable

550

PIN COTTER 2.0X15

550D2015

Unavailable
