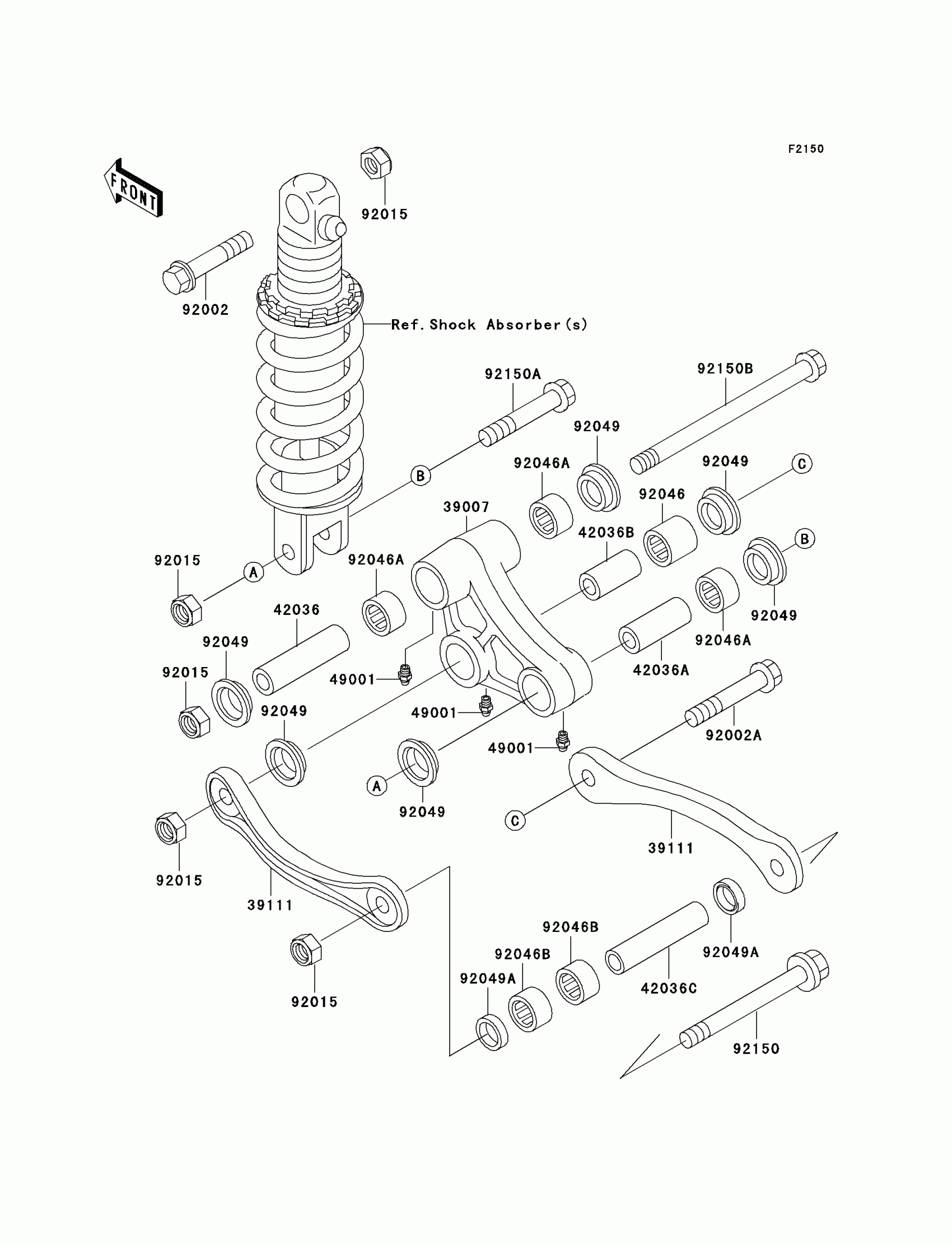

Kawasaki Ninja® ZX™-11 Rear Suspension Diagram

Description

Price

39007

ARM-SUSP,UNI TRAK

39007-1107

Unavailable

39111

ROD-TIE,SUSPENSION

39111-1130

Unavailable

42036

SLEEVE,12.1X20X70

42036-1079

$31.30

42036A

SLEEVE,12.1X20X40

42036-1108

$20.37

42036B

SLEEVE,12.1X20X50

42036-1111

$20.61

42036C

SLEEVE,12.1X18X82

42036-1231

$24.25

49001

NIPPLE-GREASE

49001-1051

$2.11

92002

BOLT,FLANGED,12X60

92002-1464

$12.19

92002A

BOLT,SUSPENSION ARM,12MM

92002-1785

$14.56

92015

NUT,LOCK,12MM,BLACK

92015-1190

$7.25

92046

BEARING-NEEDLE,BM202726

92046-1110

$18.91

92046A

BEARING-NEEDLE,BM202715

92046-1112

$16.90

92046B

BEARING-NEEDLE,18BM2416

92046-1144

$29.83

92049

SEAL-OIL,ARM

92049-1109

$7.08

92049A

SEAL-OIL,MHA18244

92049-1225

$7.08

92150

BOLT,FLANGED,12X110

92150-1088

$13.54

92150A

BOLT,FLANGED,12X70

92150-1115

Unavailable

92150B

BOLT,FLANGED,12X165

92150-1116

$23.58
