1995 Kawasaki Ninja® ZX™-11 Swingarm Diagram

← All diagrams

Find the part on the Swingarm diagram for your 1995 Kawasaki Ninja® ZX™-11, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

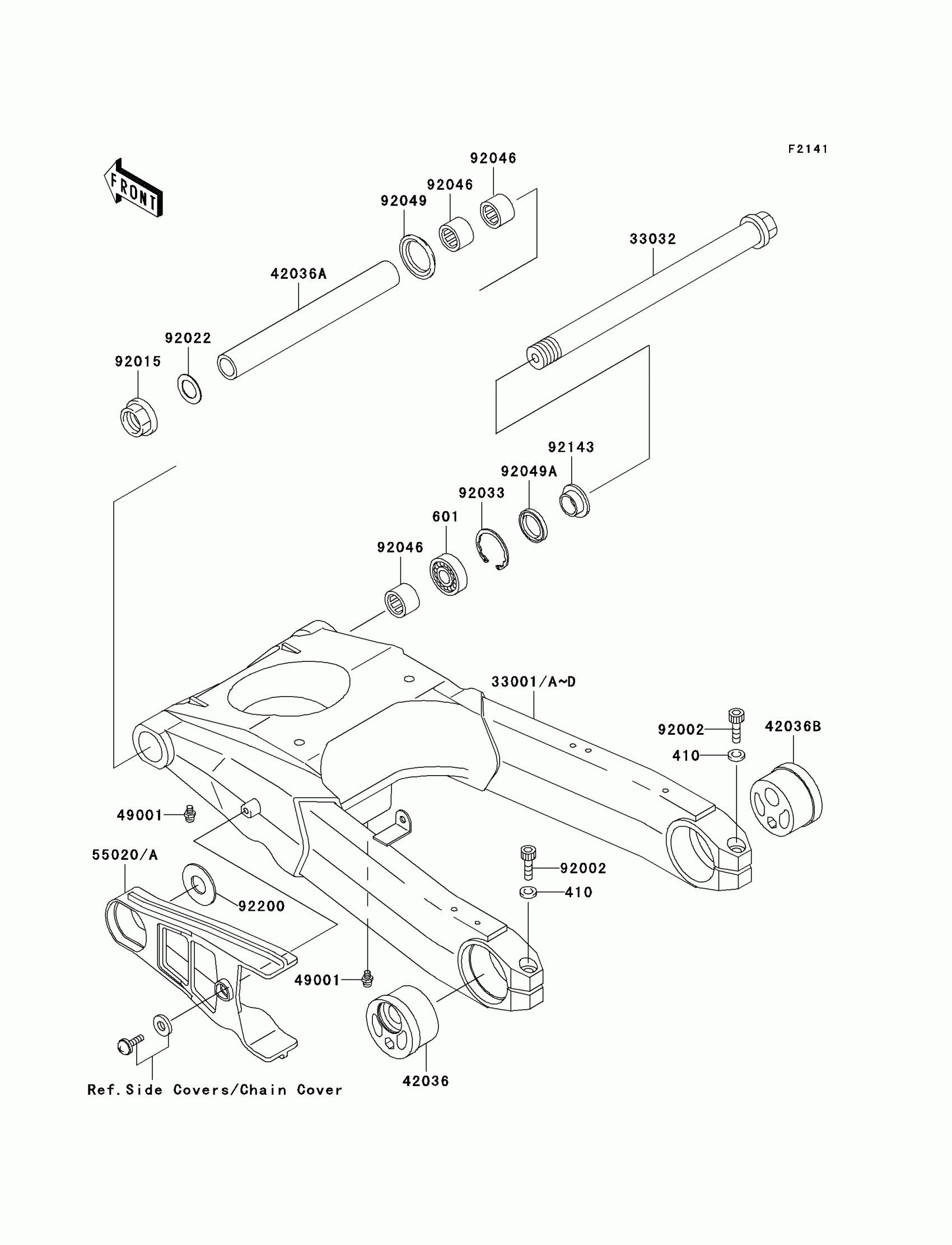

1995 Kawasaki Ninja® ZX™-11 Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

410

W-PLAIN-S

410E1000

1

$0.63

In stock

601

1

$9.42

In stock

33032

SHAFT-SWING ARM

33032-1170

1
Out of stock

42036

SLEEVE,REAR AXLE,LH

42036-1153

1

$80.17

In stock

42036A

1

$67.80

In stock

42036B

SLEEVE,REAR AXLE,RH

42036-1265

1

$80.17

In stock

49001

NIPPLE-GREASE

49001-1051

1

$2.44

In stock

55020A

GUARD,CHAIN

55020-1528

1

$78.41

In stock

92002

BOLT,SOCKET,10X40

92002-1452

1

$7.14

In stock

92015

NUT,FLANGED,20MM

92015-1724

1

$14.14

In stock

92022

1

$4.25

In stock

92033

RING-SNAP,42MM

92033-1041

1

$4.88

In stock

92046

BEARING-NEEDLE,BM2817

92046-1111

1
Out of stock

92049

SEAL-OIL,28X34X5.7

92049-1181

1
Out of stock

92049A

SEAL-OIL,MHSA25X42X6

92049-1314

1
Out of stock

92143

1

$7.13

In stock

92200

WASHER,20.3X48X2.3

92200-1167

1
Out of stock

33001C

ARM-COMP-SWING,G.GRAY

33001-1483-GD

1
Out of stock

33001D

ARM-COMP-SWING,SILVER NO.35

33001-1483-VZ

1
Out of stock
