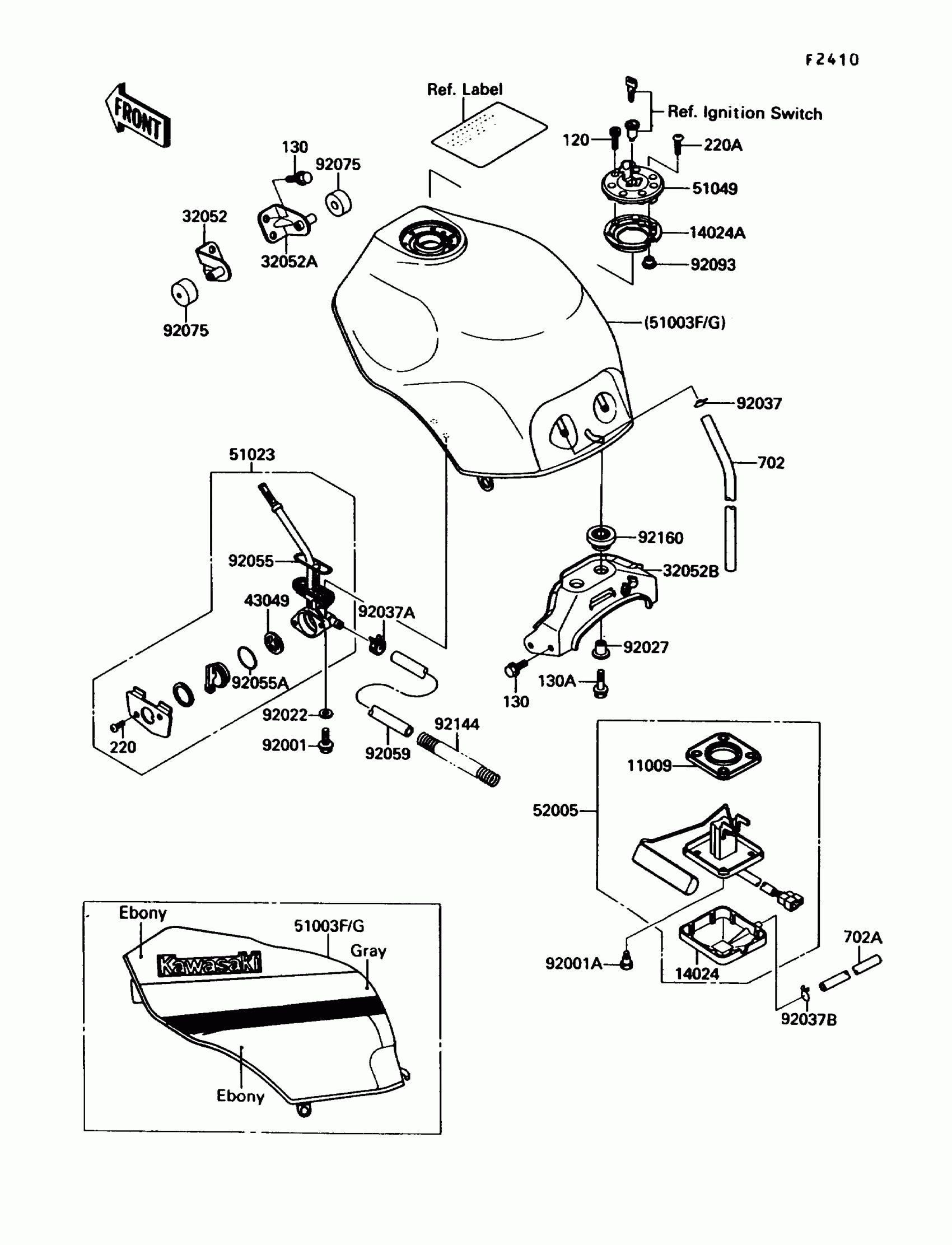

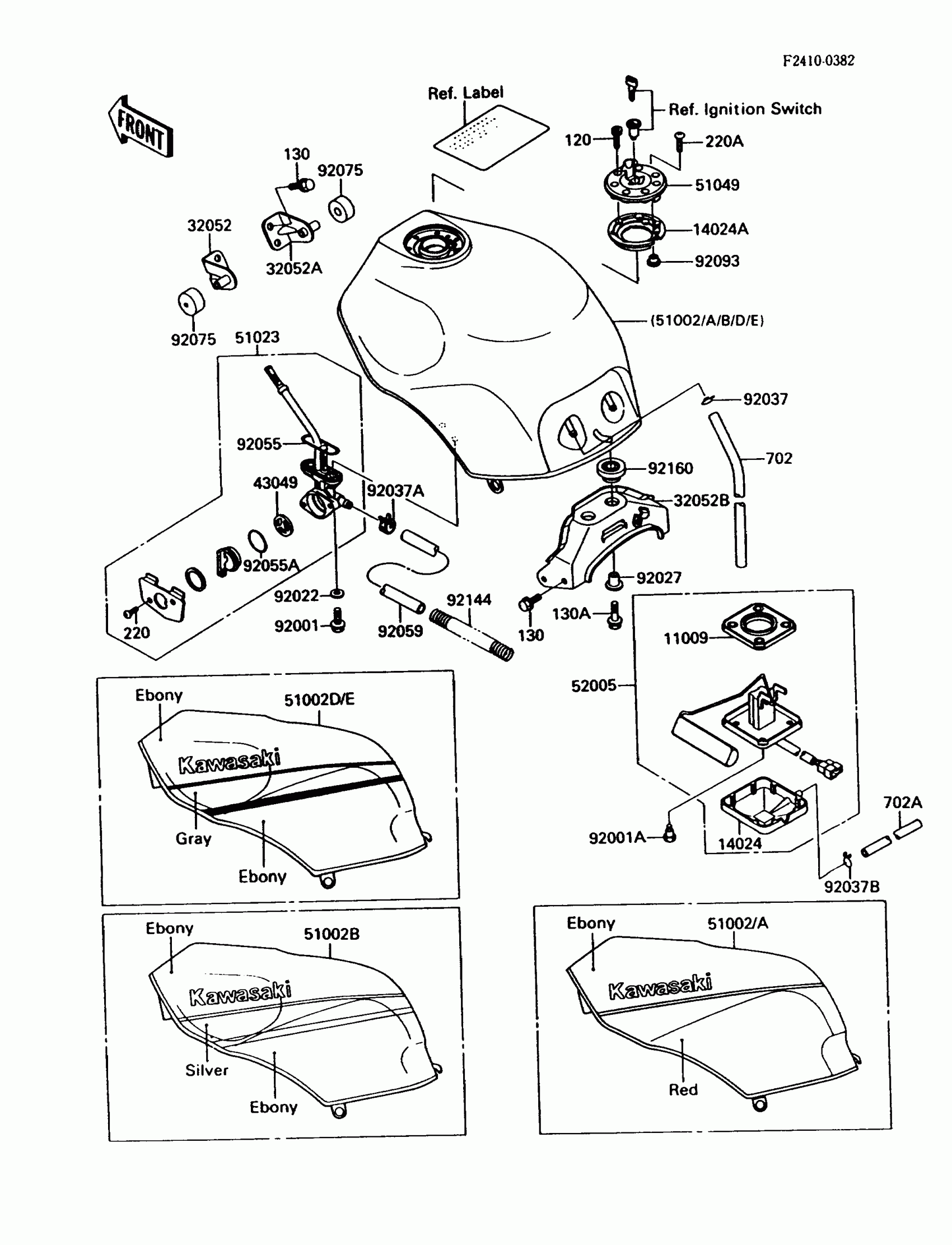

Kawasaki Ninja® ZX™-10 Fuel Tank Diagram

#

Description
Price

11009

GASKET,FUEL GAUGE

11009-1656

Unavailable

14024

COVER,FUEL GAUGE

14025-1536

Unavailable

14024A

COVER,TANK CAP

14025-1913

$17.42

32052

BRACKET-TANK,FR,LH

32052-1268

$10.68

32052A

BRACKET-TANK,FR,RH

32052-1269

Unavailable

32052B

BRACKET-TANK,RR

32052-1270

$35.08

43049

PACKING,TAP VALVE

43049-1066

$5.54

51023

TAP-ASSY,FUEL

51023-1151

Unavailable

51049

CAP-TANK,FUEL

51049-1079

$124.27

52005

GAUGE,FUEL

52005-1090

$157.44

92001

BOLT,6X20

92001-1091

$2.99

92001A

BOLT,FUEL GAUGE

92001-1705

Unavailable

92022

WASHER-PLAIN

92022-183

$2.99

92027

COLLAR,L=16.1

92027-1847

$4.67

92037

CLAMP,TUBE

92037-010

$2.99

92037A

CLAMP,HOSE CLIP

92037-1181

$2.31

92037B

CLAMP,TUBE

92037-147

$5.61

92055

RING-O,FUEL TAP PACKING

92055-1112

$3.81

120

BOLT-SOCKET,5X12

120S0512

Unavailable

130

BOLT-FLANGED,6X14,BLACK

130J0614

Unavailable

130A

BOLT-FLANGED,6X25

130J0625

Unavailable

220

SCREW-PAN-CROS,3X8

220C0308

$0.52

220A

SCREW-PAN-CROSS

220C0508

Unavailable

702

TUBE-RUBBER,7X10X400

702A07400

$10.11

702A

TUBE-RUBBER,7X10X640

702A07640

$10.11

92055A

RING-O,TAP LEVER

92055-1419

$3.81

92059

TUBE,8X13X210

92059-1932

$10.37

92075

DAMPER,FUEL TANK

92075-125

$4.67

92144

SPRING,HOSE PROTECTOR

92144-1347

$12.85

92160

DAMPER

92160-1046

$8.12

51002D

TANK-COMP-FUEL,EBONY/GRAY

51002-5465-T4

$961.34

51002E

TANK-COMP-FUEL,EBONY/GRAY

51002-5466-T4

$1,356.59

92093

SEAL,FUEL TANK CAP

92093-1030

$5.93
