1989 Kawasaki Ninja® ZX™-10 Carburetor Diagram

← All diagrams

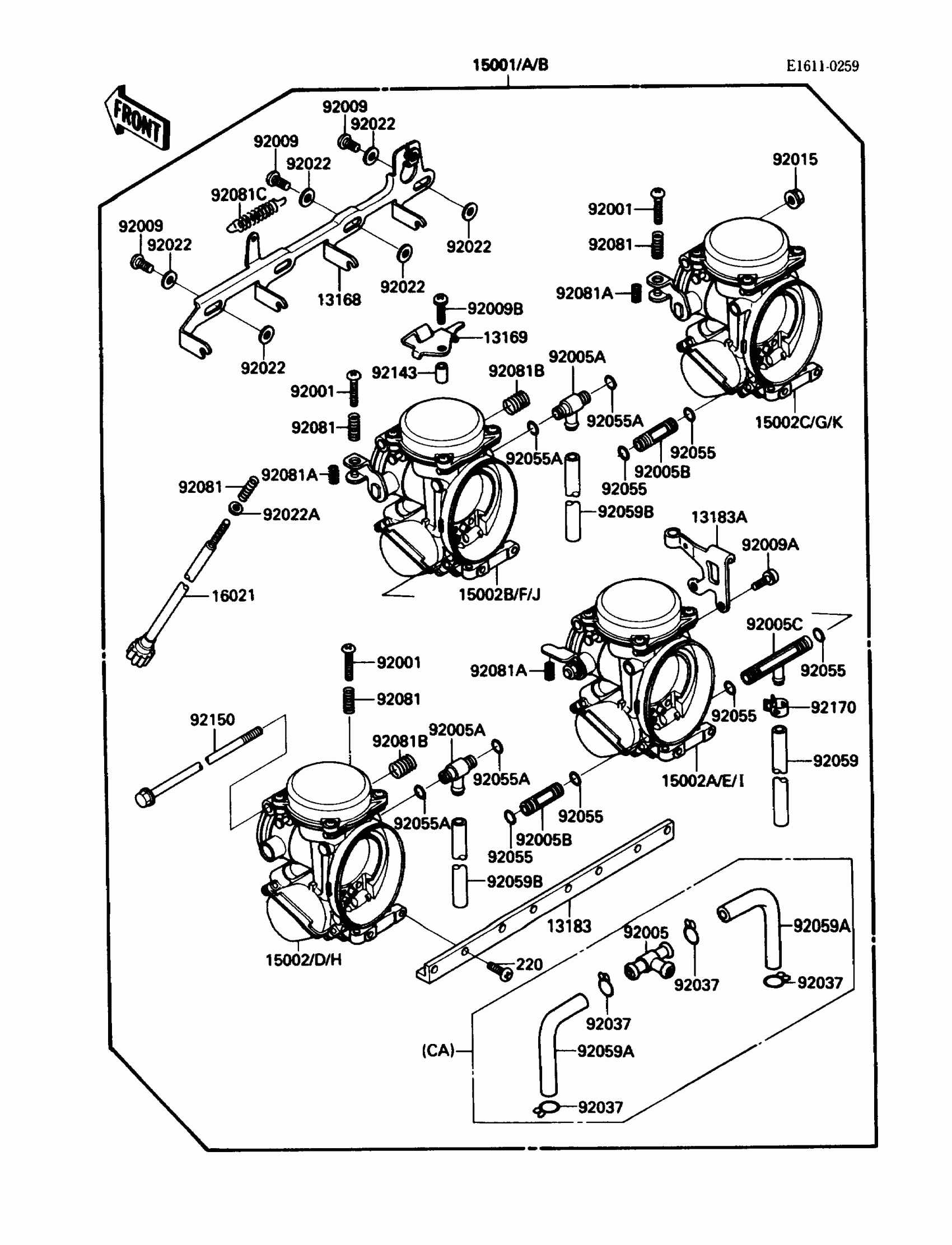

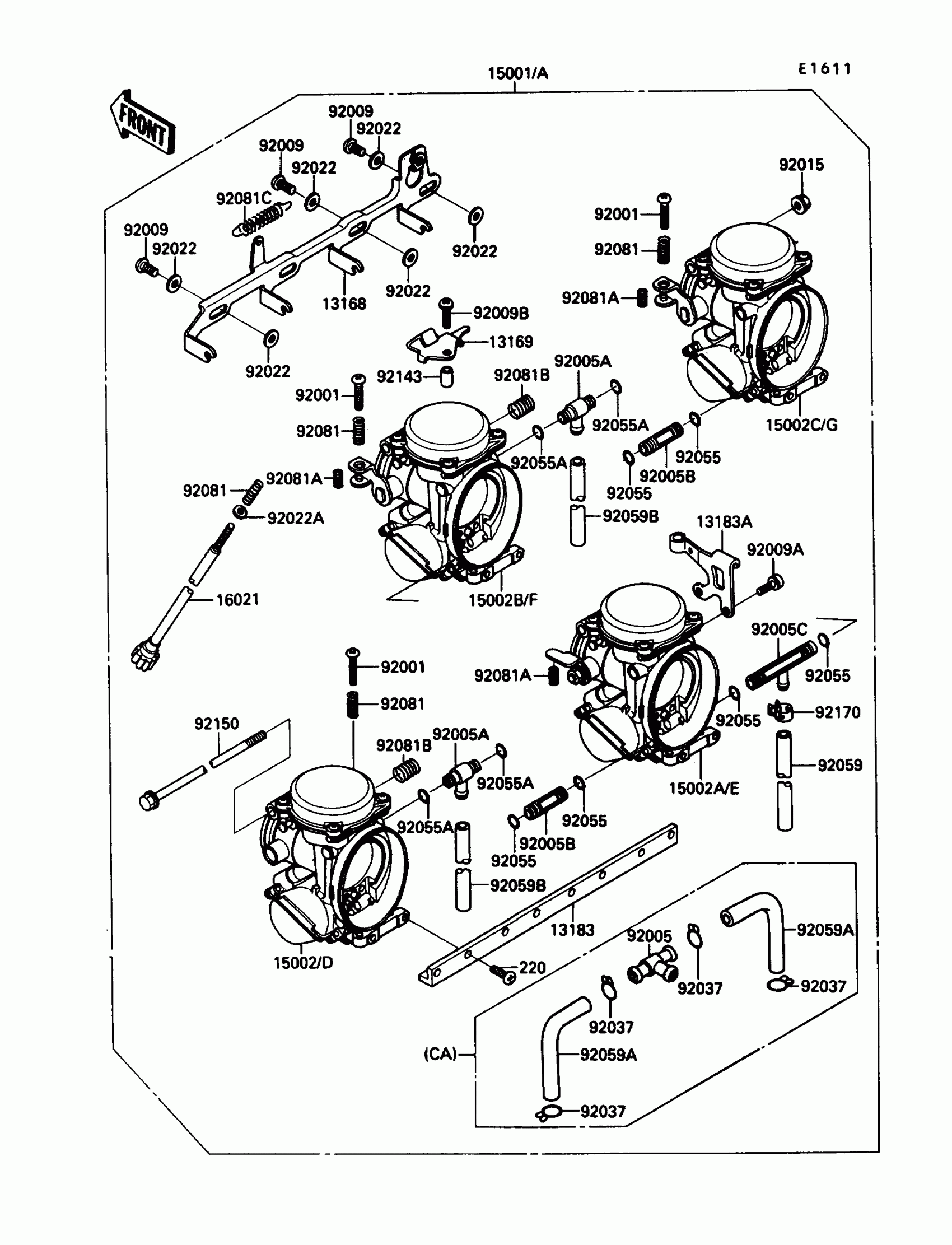

Find the part on the Carburetor diagram for your 1989 Kawasaki Ninja® ZX™-10, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki Ninja® ZX™-10 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13168

LEVER,STARTER

13168-1405

1
Out of stock

13169

PLATE,STARTER CABLE

13169-1965

1
Out of stock

13183

PLATE,CARBURETOR,STAY

13183-1321

1
Out of stock

13183A

PLATE,THROTTLE

13183-1322

1
Out of stock

16021

SCREW-THROTTLE STOP

16021-1131

1
Out of stock

92001

BOLT,THROTTLE ADJUST

92001-1998

1
Out of stock

92005A

FITTING,T-TYPE

92005-1125

1
Out of stock

92005B

FITTING

92005-1157

1
Out of stock

92005C

FITTING,T-TYPE

92005-1179

1
Out of stock

92009

SCREW

92009-1262

1
Out of stock

220

SCREW-PAN-CROS,5X14

220D0514

1
Out of stock

92009A

SCREW,5X10

92009-1365

1
Out of stock

92009B

SCREW,4X18

92009-1446

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92022

WASHER,6.1X11X0.8,POLYACETAL

92022-1199

1
Out of stock

92022A

WASHER,PLAIN,STOP SPRING

92022-1480

1
Out of stock

92055

RING-O

92055-1004

1
Out of stock

92055A

RING-O

92055-1223

1
Out of stock

92059

TUBE,5.3X10.5X160

92059-1139

1
Out of stock

92081

SPRING

92081-1620

1
Out of stock

92081A

SPRING,THROTTLE ADJUST LWR

92081-1621

1
Out of stock

92081B

SPRING,THROTTLE ADJUST CNT

92081-1622

1
Out of stock

92081C

SPRING,STARTER LEVER

92081-1762

1
Out of stock

92143

COLLAR,4X5.2X9.6

92143-1265

1
Out of stock

92150

BOLT,5X305

92150-1211

1
Out of stock

92170

CLAMP,TUBE

92170-1054

1
Out of stock

15001

CARBURETOR-ASSY

15001-1415

1
Out of stock

15001A

CARBURETOR-ASSY

15001-1416

1
Out of stock

15001B

CARBURETOR-ASSY

15001-1417

1
Out of stock

15002

CARBURETOR,LH,OUTSIDE

15002-1624

1
Out of stock

15002A

CARBURETOR,LH,INSIDE

15002-1625

1
Out of stock

15002B

CARBURETOR,RH,INSIDE

15002-1626

1
Out of stock

15002C

CARBURETOR,RH,OUTSIDE

15002-1627

1
Out of stock

15002D

CARBURETOR,LH,OUTSIDE

15002-1632

1
Out of stock

15002E

CARBURETOR,LH,INSIDE

15002-1633

1
Out of stock

15002F

CARBURETOR,RH,INSIDE

15002-1634

1
Out of stock

15002G

CARBURETOR,RH,OUTSIDE

15002-1635

1
Out of stock

15002H

CARBURETOR,LH,OUTSIDE

15002-1667

1
Out of stock

15002I

CARBURETOR,LH,INSIDE

15002-1668

1
Out of stock

15002J

CARBURETOR,RH,INSIDE

15002-1669

1
Out of stock

15002K

CARBURETOR,RH,OUTSIDE

15002-1670

1
Out of stock

92005

FITTING,T-TYPE

92005-1119

1
Out of stock

92037

CLAMP,TUBE

92037-1606

1
Out of stock

92059A

TUBE,7X11X140

92059-1688

1
Out of stock

92059B

TUBE,6.5X9.5X100

92059-1975

1
Out of stock
