1989 Kawasaki Ninja® ZX™-10 Fuel Pump Diagram

← All diagrams

Find the part on the Fuel Pump diagram for your 1989 Kawasaki Ninja® ZX™-10, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

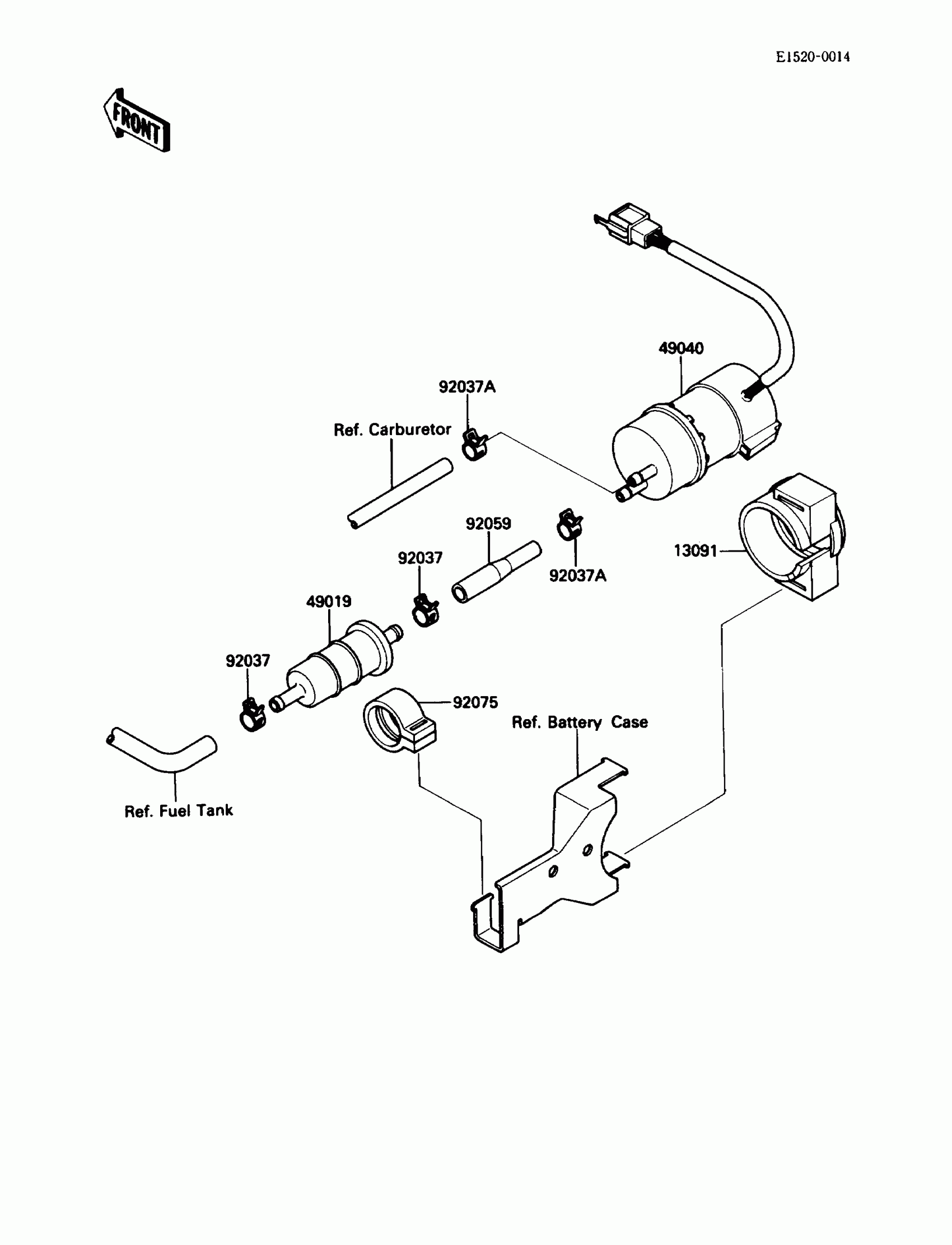

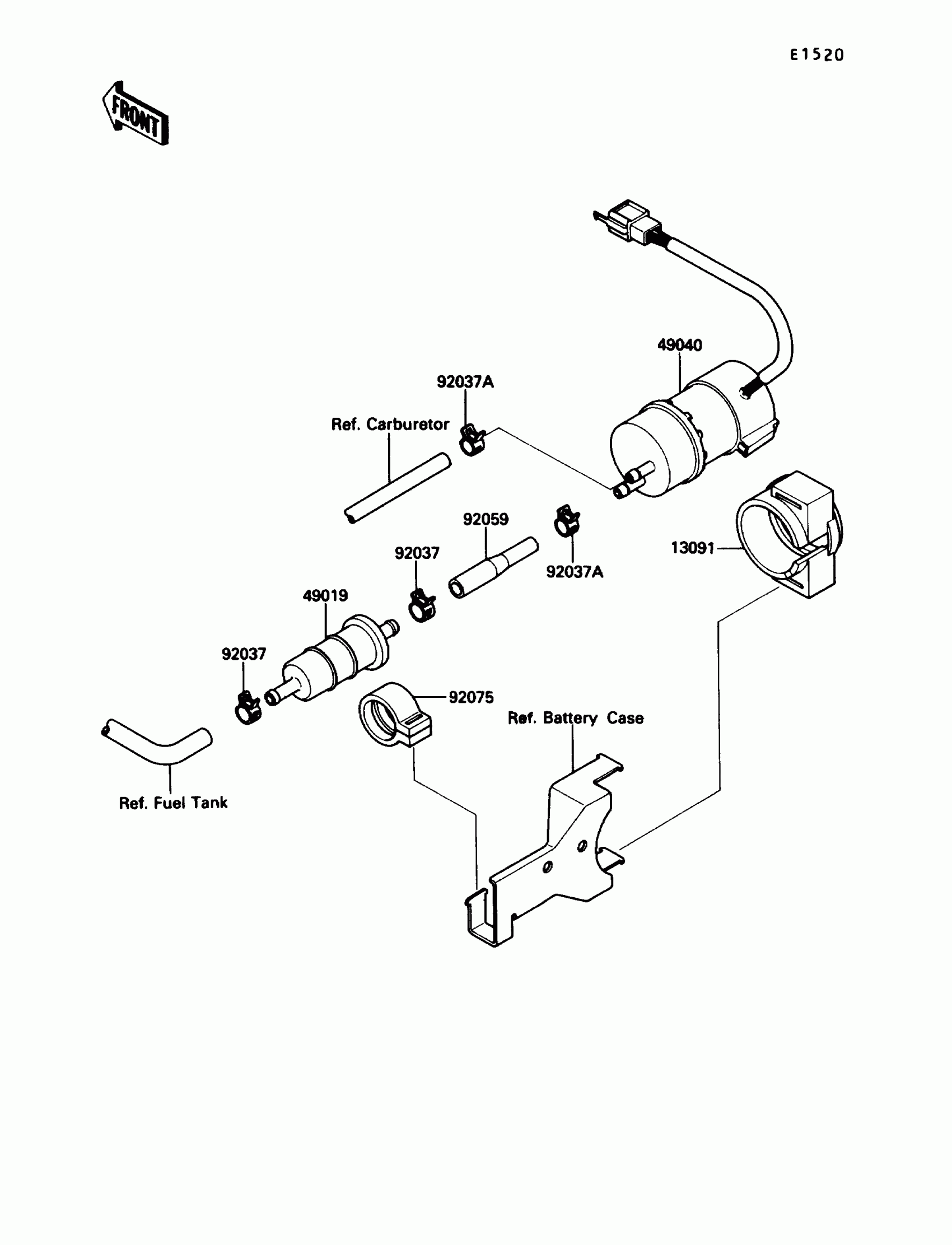

1989 Kawasaki Ninja® ZX™-10 Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13091

HOLDER

13091-1512

1
Out of stock

49019

FILTER-FUEL

49019-1055

1
Out of stock

49040

PUMP-FUEL

49040-1056

1
Out of stock

92037

CLAMP,HOSE CLIP

92037-1181

1
Out of stock

92037A

CLAMP,TUBE

92037-1505

1
Out of stock

92059

TUBE,FUEL

92059-1918

1
Out of stock

92075

DAMPER,FUEL FILTER

92075-1853

1
Out of stock
