1986 Kawasaki Ninja® Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 1986 Kawasaki Ninja®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

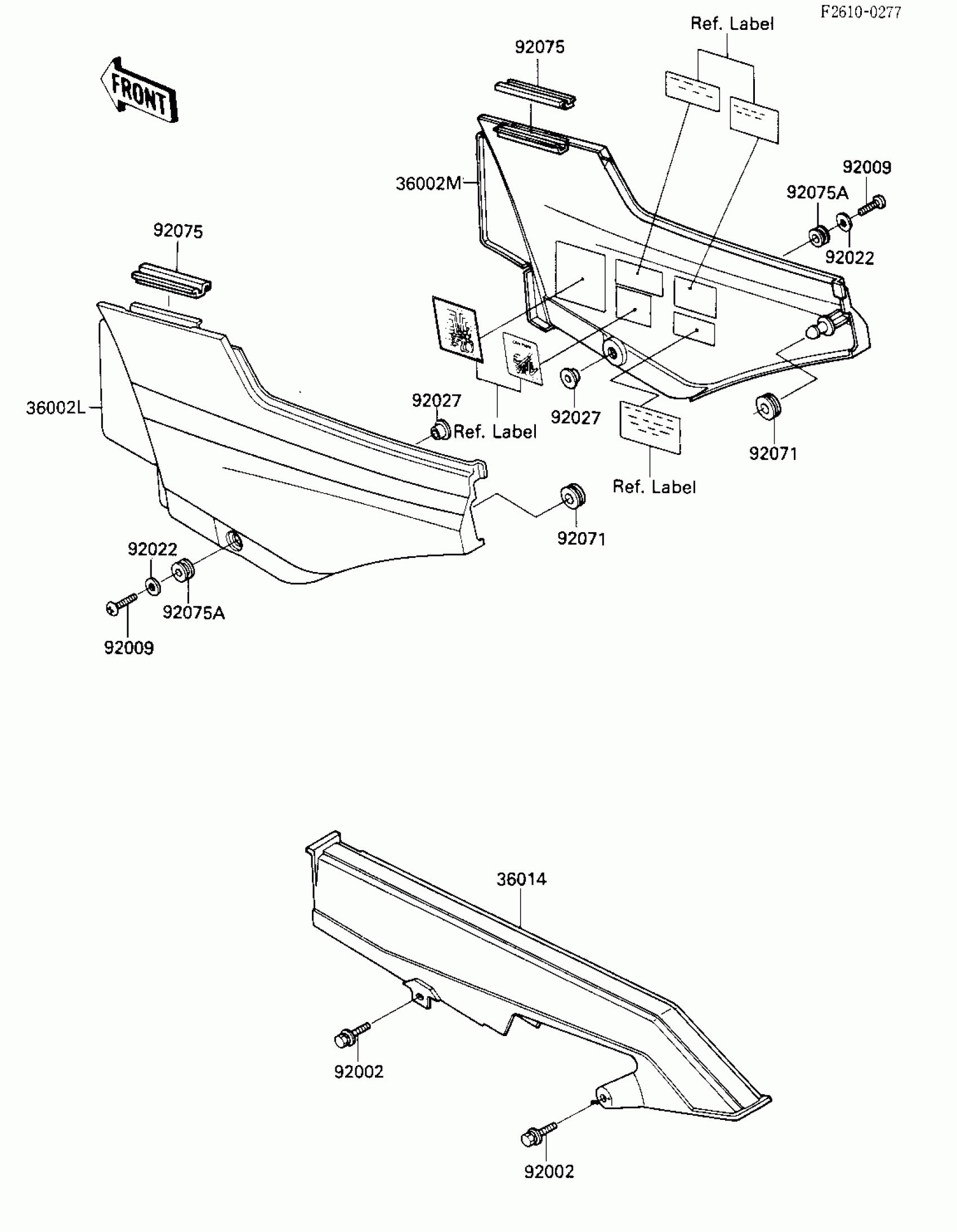

1986 Kawasaki Ninja® Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36002L

COVER-SIDE,LH,RED/WHI

36002-5116-R4

1
Out of stock

36002M

COVER-SIDE,RH,RED/WHI

36002-5117-R4

1

$180.31

In stock

36014

CASE-CHAIN

36014-1165

1
Out of stock

92002

BOLT,6X16

92002-1136

1
Out of stock

92009

SCREW,6X18

92009-1663

1
Out of stock

92022

1

$4.25

In stock

92027

COLLAR,L=9.1,WHITE

92027-1795

1

$4.87

In stock

92071

GROMMET

92071-056

1

$3.39

In stock

92075

DAMPER,SIDE COVER

92075-1601

1

$7.60

In stock

92075A

DAMPER

92075-1634

1

$3.72

In stock
