1985 Kawasaki Ninja® Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1985 Kawasaki Ninja®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

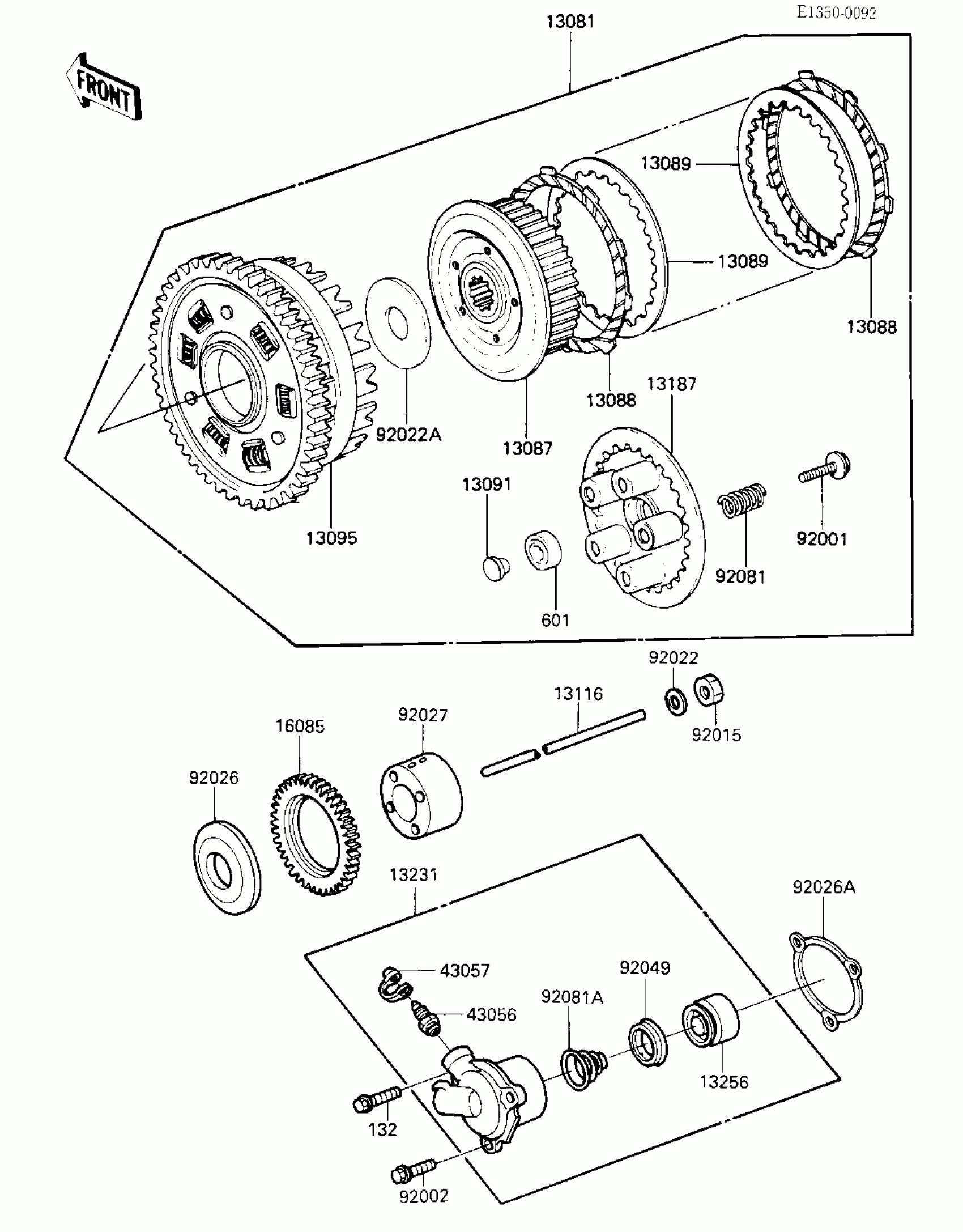

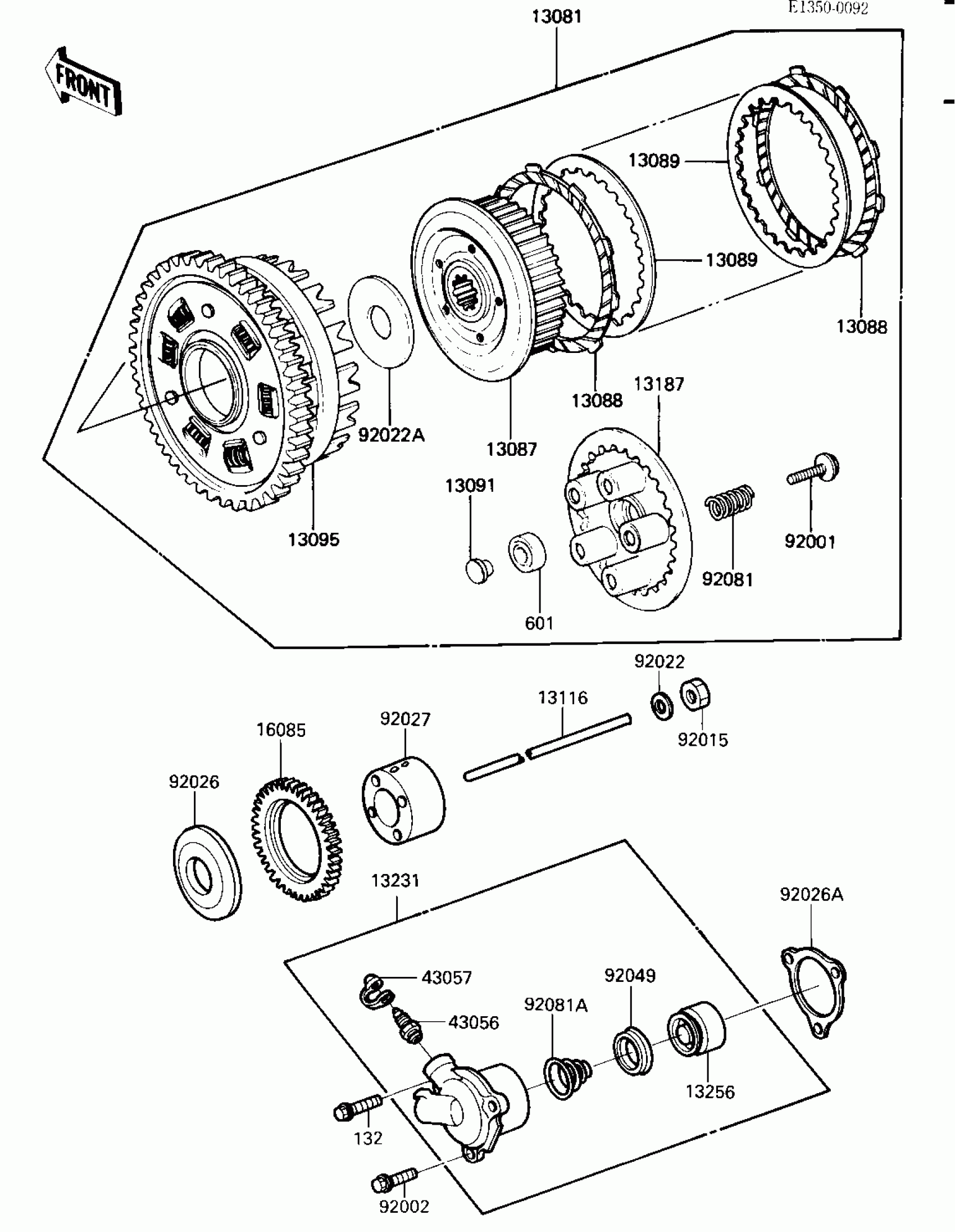

1985 Kawasaki Ninja® Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13081

CLUTCH-ASSY

13081-1175

1
Out of stock

13087

HUB-CLUTCH

13087-042

1
Out of stock

13088

PLATE-FRICTION

13088-1013

1

$12.46

In stock

13089

PLATE-CLUTCH

13089-027

1

$10.14

In stock

13091

HOLDER,CLUTCH PUSH ROD

13091-1085

1
Out of stock

13095

HOUSING-COMP-CLUTCH

13095-1245

1
Out of stock

13116

ROD-PUSH,CLUTCH

13116-1104

1
Out of stock

13187

1

$76.98

In stock

13231

RELEASE-ASSY-CLUTCH

13231-1066

1

$155.05

In stock

13256

PISTON,CLUTCH RELEASE

13256-1051

1
Out of stock

16085

GEAR,OIL PUMP

16085-1108

1

$159.72

In stock

43056

BREATHER

43056-1052

1

$11.32

In stock

43057

CAP-BREATHER

43057-1001

1

$3.89

In stock

92001

BOLT,FLANGED,6X18

92001-1066

1

$4.93

In stock

92002

BOLT

92002-1613

1
Out of stock

92015

NUT,20MM

92015-1555

1

$10.37

In stock

92022

WASHER,20.3X36X2.3

92022-1116

1

$6.82

In stock

92022A

1

$30.98

In stock

92026

SPACER

92026-5001

1
Out of stock

92026A

1

$13.20

In stock

92027

COLLAR

92027-1710

1

$103.55

In stock

92049

SEAL-OIL,PISTON

92049-1165

1
Out of stock

92081

SPRING,CLUTCH

92081-1033

1

$5.88

In stock

92081A

1

$6.75

In stock

132

BOLT-FLANGED-SMALL

132J0680

1
Out of stock

601

1

$12.85

In stock
