1985 Kawasaki Ninja® Gear Change Drum & Forks Diagram

← All diagrams

Find the part on the Gear Change Drum & Forks diagram for your 1985 Kawasaki Ninja®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

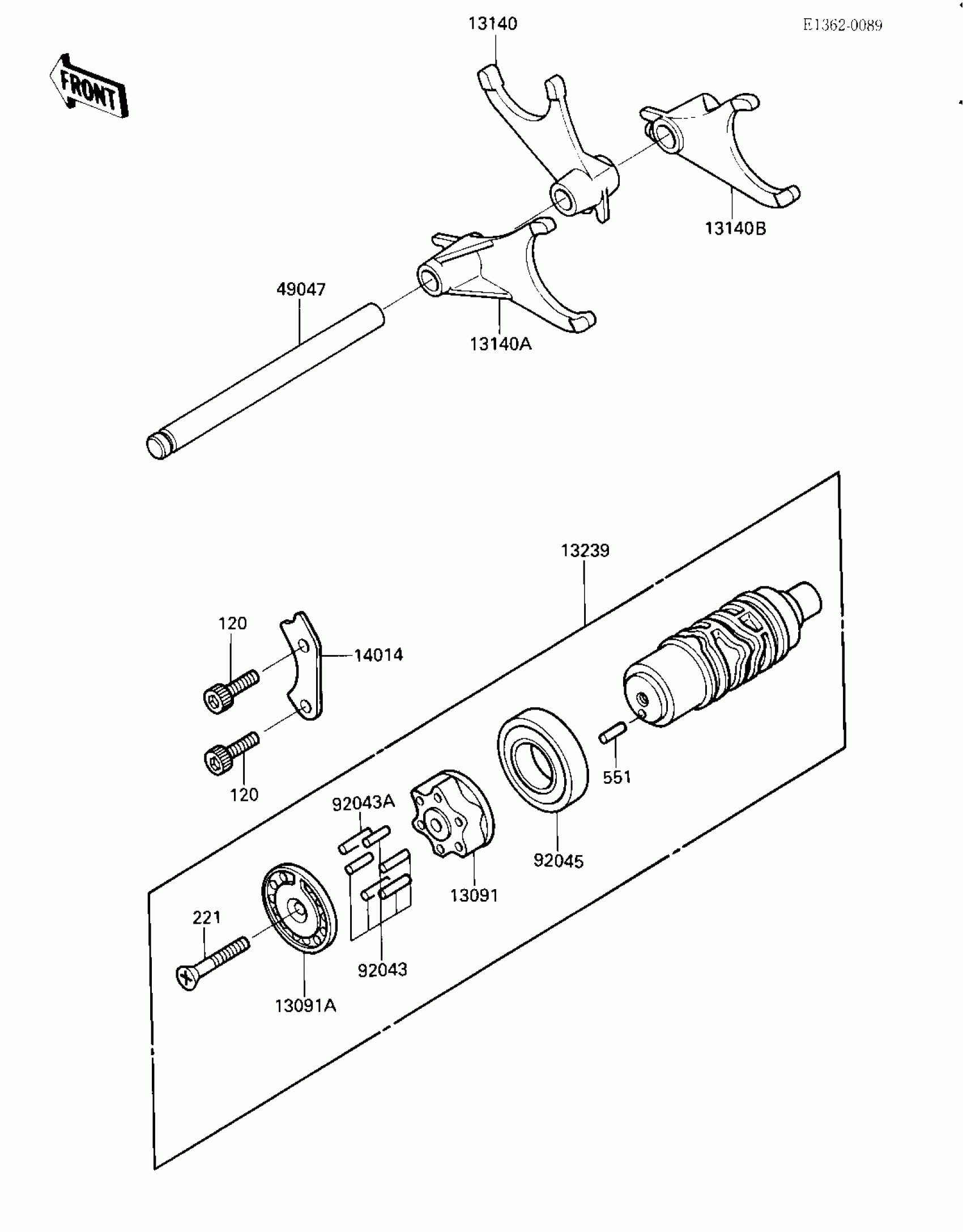

1985 Kawasaki Ninja® Gear Change Drum & Forks Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13091

HOLDER,CHANGE DRUM

13091-1275

1

$49.30

In stock

13091A

HOLDER,NEUTRAL

13091-1334

1

$24.61

In stock

13140

FORK-SHIFT

13140-1196

1

$103.41

In stock

13140A

FORK-SHIFT

13140-1197

1

$103.41

In stock

13140B

FORK-SHIFT

13140-1198

1

$103.41

In stock

13239

DRUM-ASSY-CHANGE

13239-1116

1
Out of stock

14014

PLATE-POSITION,CHANGE DRUM

14014-1059

1
Out of stock

49047

ROD-SHIFT

49047-1055

1

$34.85

In stock

92043

PIN,DOWEL,4X15.8

92042-014

1

$0.49

In stock

92043A

PIN,DOWEL,4X17.8

92042-020

1
Out of stock

92045

BEARING-BALL,16005

92045-1045

1

$28.80

In stock

120

BOLT-SOCKET,6X16

120P0616

1
Out of stock

221

1

$3.28

In stock

551

PIN-DOWEL,4X8

551A0408

1

$0.80

In stock
