1985 Kawasaki Ninja® Clutch Master Cylinder Diagram

← All diagrams

Find the part on the Clutch Master Cylinder diagram for your 1985 Kawasaki Ninja®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

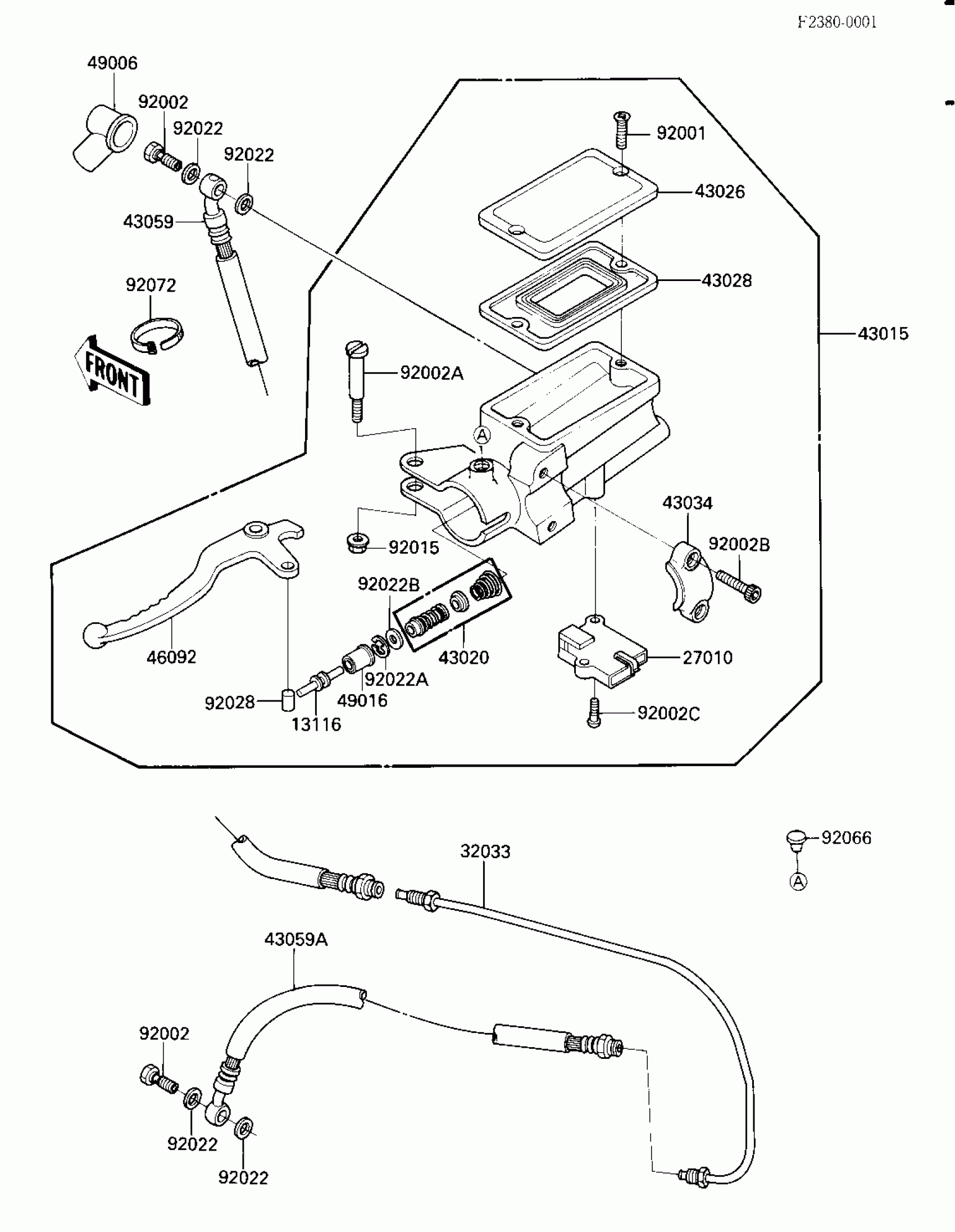

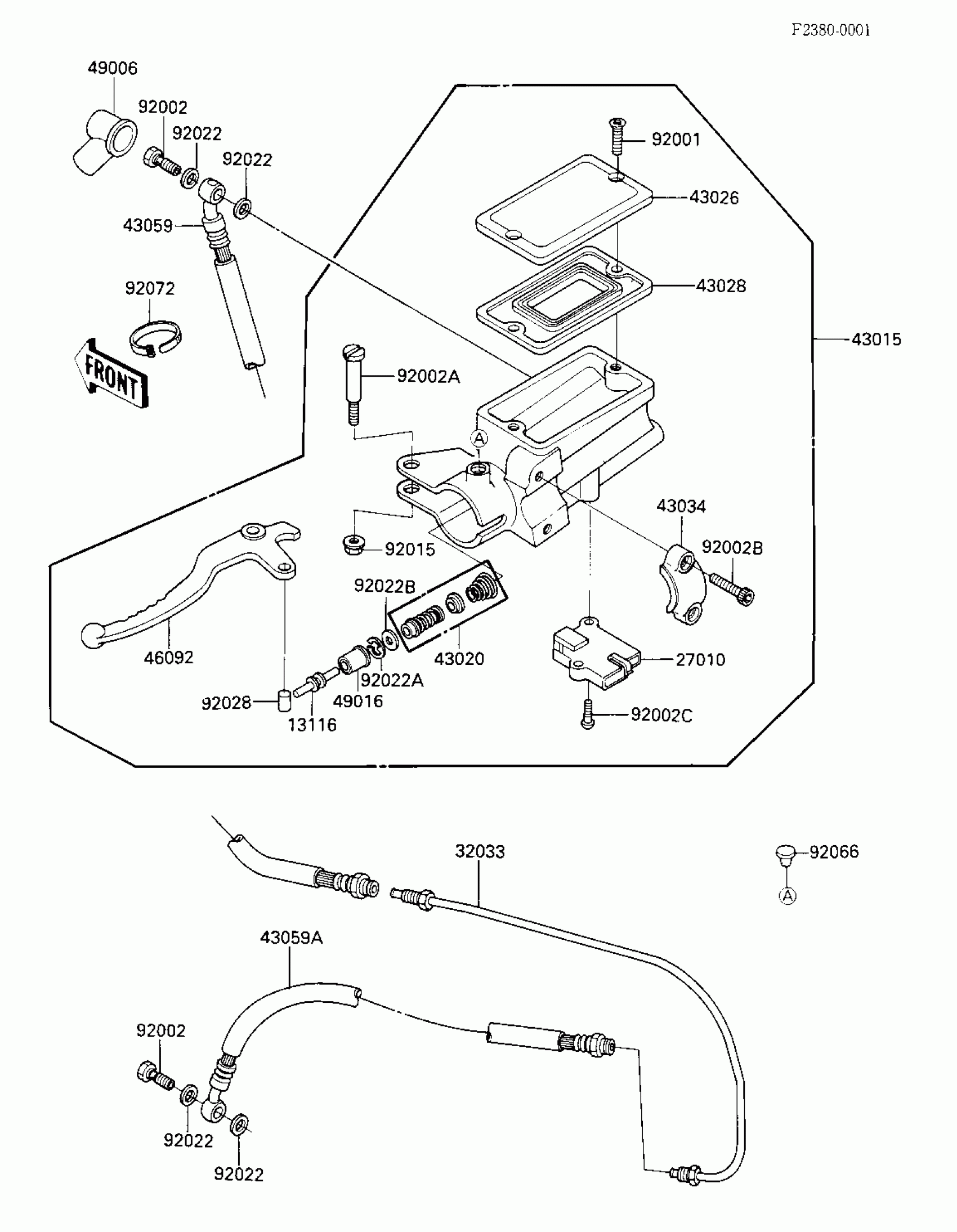

1985 Kawasaki Ninja® Clutch Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13116

1

$33.39

In stock

27010

SWITCH,CLUTCH

27010-1171

1

$32.95

In stock

32033

PIPE,CLUTCH

32033-1243

1

$103.56

In stock

43015

CYLINDER-ASSY-MASTER,CLUTCH

43015-1307

1
Out of stock

43020

1

$59.90

In stock

43026

CAP-BRAKE,FR

43026-1052

1
Out of stock

43028

1

$21.24

In stock

43034

1

$36.55

In stock

43059

HOSE-BRAKE,L=350

43059-1262

1
Out of stock

43059A

HOSE-BRAKE,L=320

43059-1263

1
Out of stock

46092

LEVER-GRIP,CLUTCH

46092-1130

1
Out of stock

49006

BOOT,DUST

49006-1041

1

$9.11

In stock

49016

1

$6.90

In stock

92001

SCREW,5MM,BLACK

92001-1727

1

$3.27

In stock

92002

BOLT

92002-1900

1
Out of stock

92002A

1

$9.29

In stock

92002B

1

$7.54

In stock

92002C

SCREW,4X16

92002-1325

1

$7.83

In stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92022

WASHER,10.5X15X1.5

43067-001

1

$1.81

In stock

92022A

CIRCLIP

92022-1605

1

$3.97

In stock

92022B

WASHER,PISTON

92022-1606

1

$3.72

In stock

92028

1

$11.67

In stock

92066

1

$3.69

In stock

92072

BAND,L=186

92072-056

1

$3.97

In stock
