1985 Kawasaki Ninja® Gear Change Mechanism Diagram

← All diagrams

Find the part on the Gear Change Mechanism diagram for your 1985 Kawasaki Ninja®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

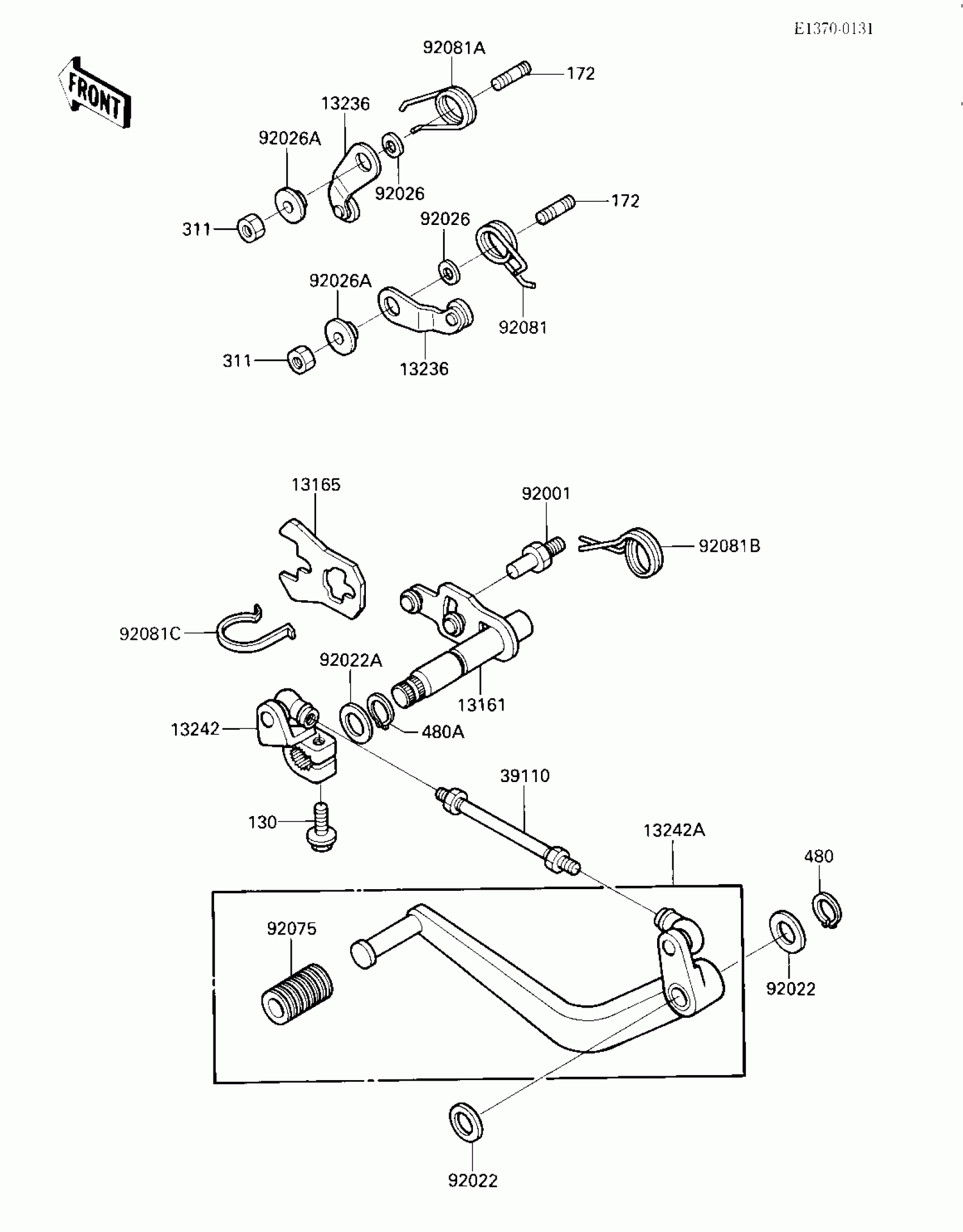

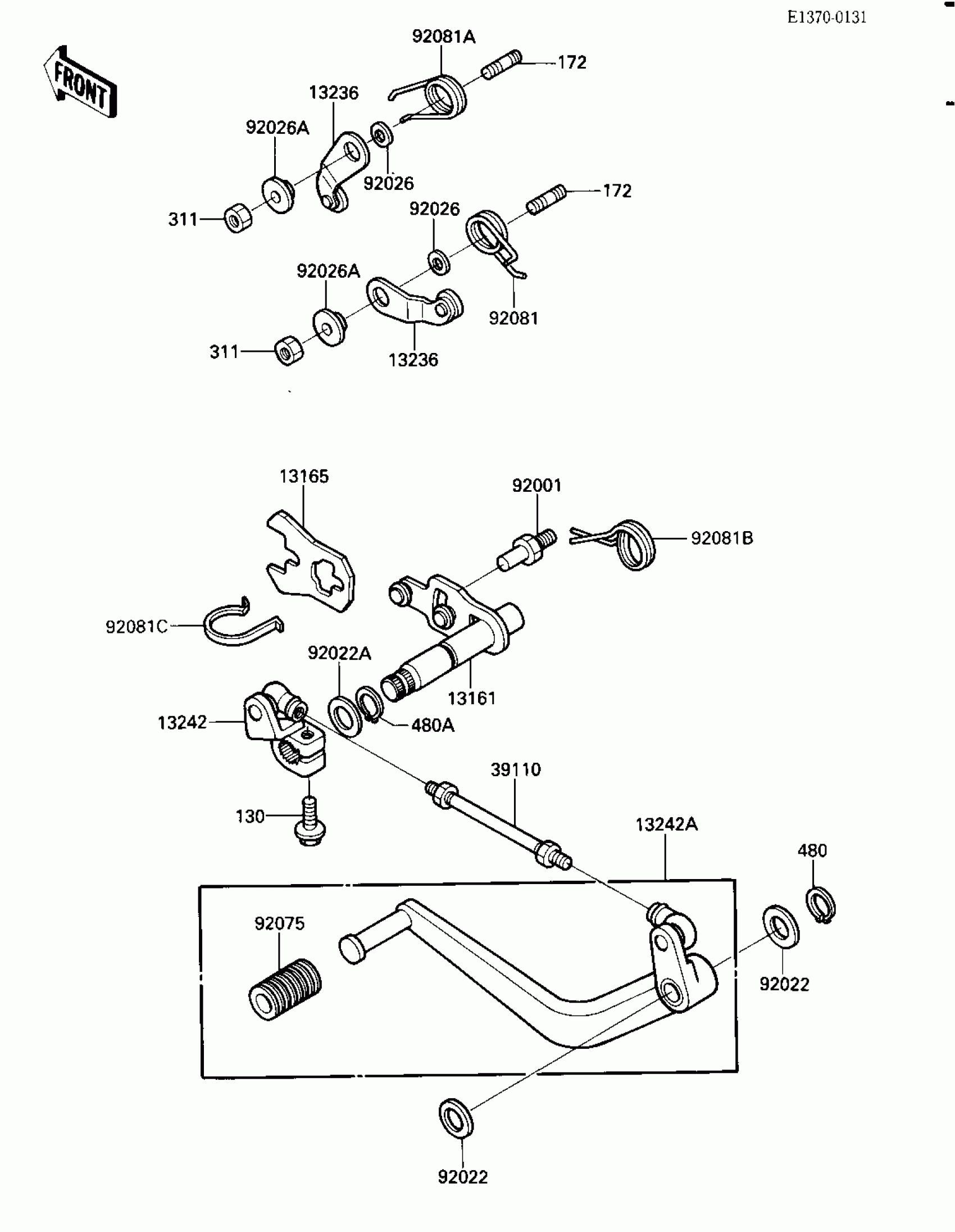

1985 Kawasaki Ninja® Gear Change Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13161

LEVER-COMP-CHANGE SHA

13161-1106

1
Out of stock

13165

PAWL

13165-1120

1

$13.39

In stock

13236

1

$18.53

In stock

13242

LEVER-ASSY-CHANGE

13242-1161

1
Out of stock

13242A

LEVER-ASSY-CHANGE,PED

13242-1170

1
Out of stock

39110

1

$12.47

In stock

92001

BOLT,RETURN SPRING

92001-1401

1

$4.17

In stock

92022

WASHER,12.5X22X1.2

92022-072

1

$3.12

In stock

92022A

WASHER,13.3X18X1

92022-1772

1

$3.98

In stock

92026

SPACER,6.3X12X1.0

92026-094

1

$8.92

In stock

92026A

SPACER

92026-1217

1

$4.37

In stock

92075

DAMPER,CHANGE PEDAL

13157-004

1
Out of stock

92081

SPRING

92081-1645

1
Out of stock

92081A

SPRING

92081-1742

1
Out of stock

92081B

1

$10.93

In stock

92081C

SPRING,CHANGE LEVER

92081-1829

1

$6.98

In stock

130

BOLT-FLANGED,6X20

130S0620

1
Out of stock

172

BOLT-STUD,6X14

172G0614

1
Out of stock

311

NUT-HEX,6MM

311G0600

1
Out of stock

480

1

$0.67

In stock

480A

1

$3.12

In stock
