1985 Kawasaki Ninja® Rear Wheel/hub/chain Diagram

← All diagrams

Find the part on the Rear Wheel/hub/chain diagram for your 1985 Kawasaki Ninja®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

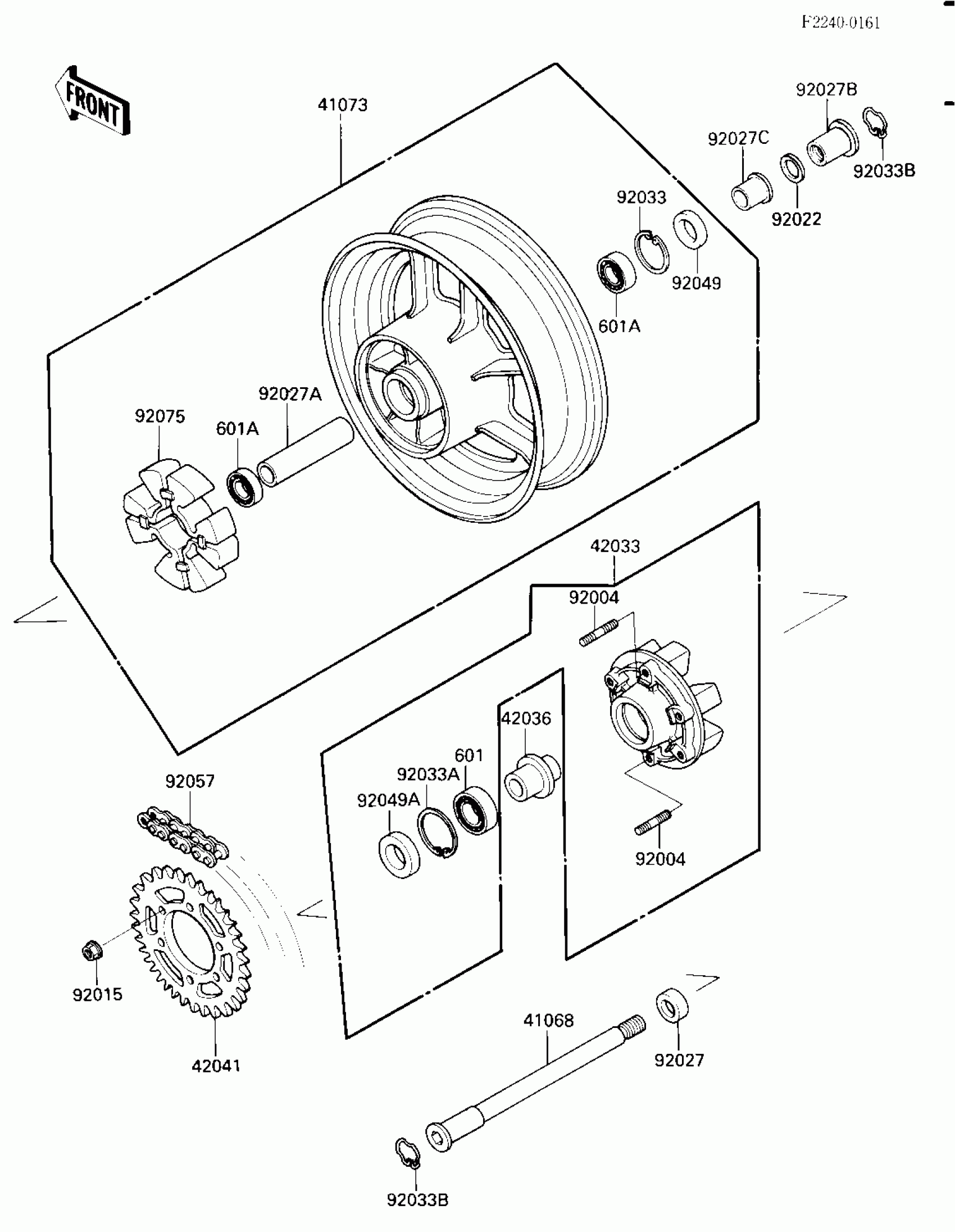

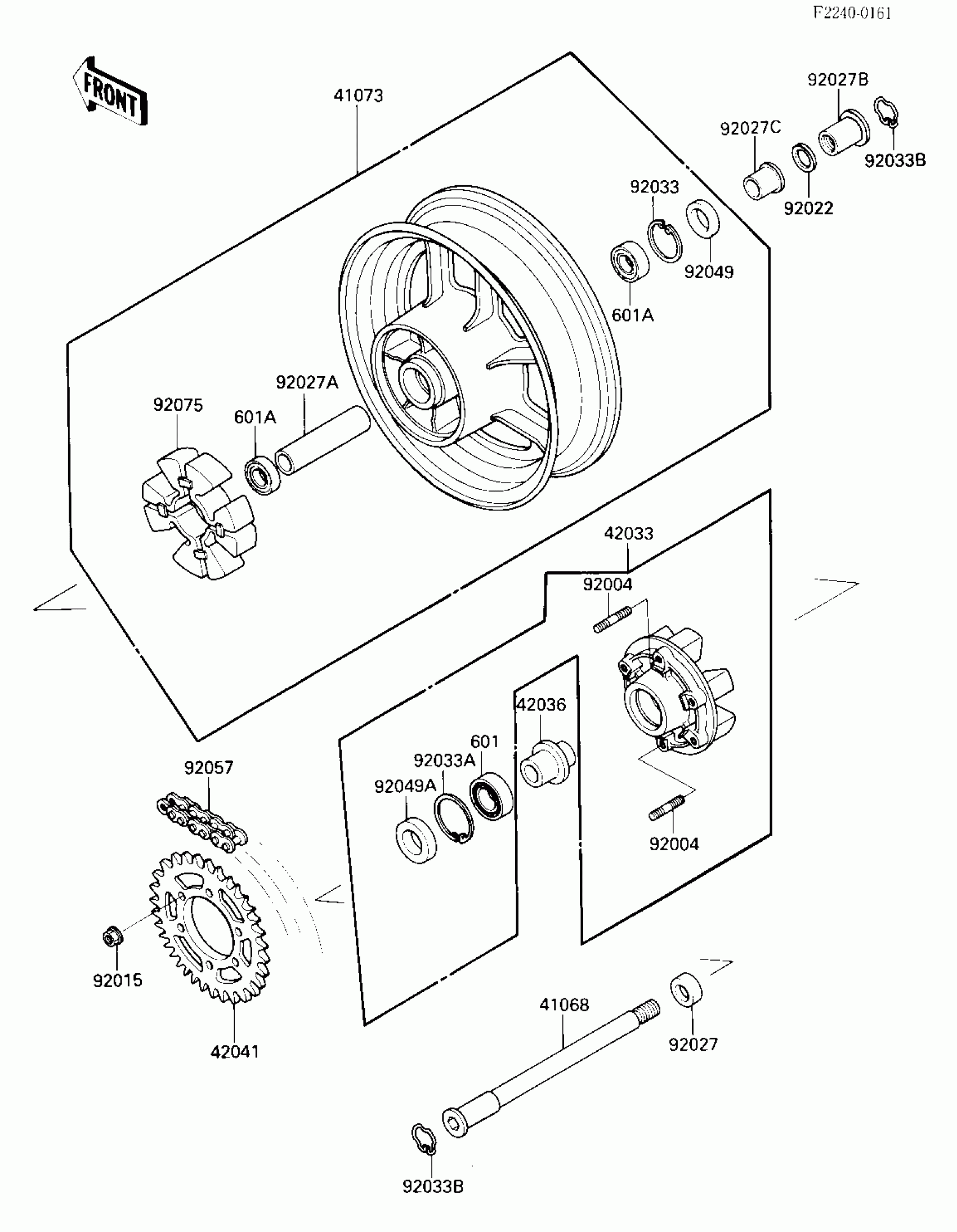

1985 Kawasaki Ninja® Rear Wheel/hub/chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41068

AXLE,RR

41068-1162

1
Out of stock

41073

WHEEL-ASSY,RR,M.GRAY

41073-1283-J9

1
Out of stock

42033

COUPLING-ASSY,RR HUB

42033-1110

1
Out of stock

42036

SLEEVE,RR HUB COUPLNG

42036-1030

1
Out of stock

42041

SPROCKET-HUB,50T

42041-1190

1
Out of stock

92004

STUD,10X19

92004-1151

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1502

1
Out of stock

92022

WASHER,23X32X2.3

92022-1618

1
Out of stock

92027

COLLAR,RR HUB COUPLIN

92027-1713

1
Out of stock

92027A

COLLAR,L=104

92027-1714

1
Out of stock

92027B

COLLAR,RR AXLE,L=28

92027-1810

1
Out of stock

92027C

COLLAR,RR HUB,L=33

92027-1811

1
Out of stock

92033

RING-SNAP,47MM

92033-1042

1
Out of stock

92033A

RING-SNAP,62MM

92033-1044

1
Out of stock

92033B

RING-SNAP,RR AXLE

92033-1156

1
Out of stock

92049

SEAL-OIL,BJN28475

92049-1056

1
Out of stock

92049A

SEAL-OIL,AJN40627

92050-027

1
Out of stock

92057

CHAIN,DRIVE,EK530KVDO

92057-1169

1
Out of stock

92075

DAMPER,SHOCK,RR HUB

92075-1593

1
Out of stock

601

BALL BEARING,#6206

601B6206

1
Out of stock

601A

BEARING-BALL,#6303ZZC3

601B6303ZZ

1
Out of stock
