2018 Kawasaki Ninja H2™ SX AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 2018 Kawasaki Ninja H2™ SX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

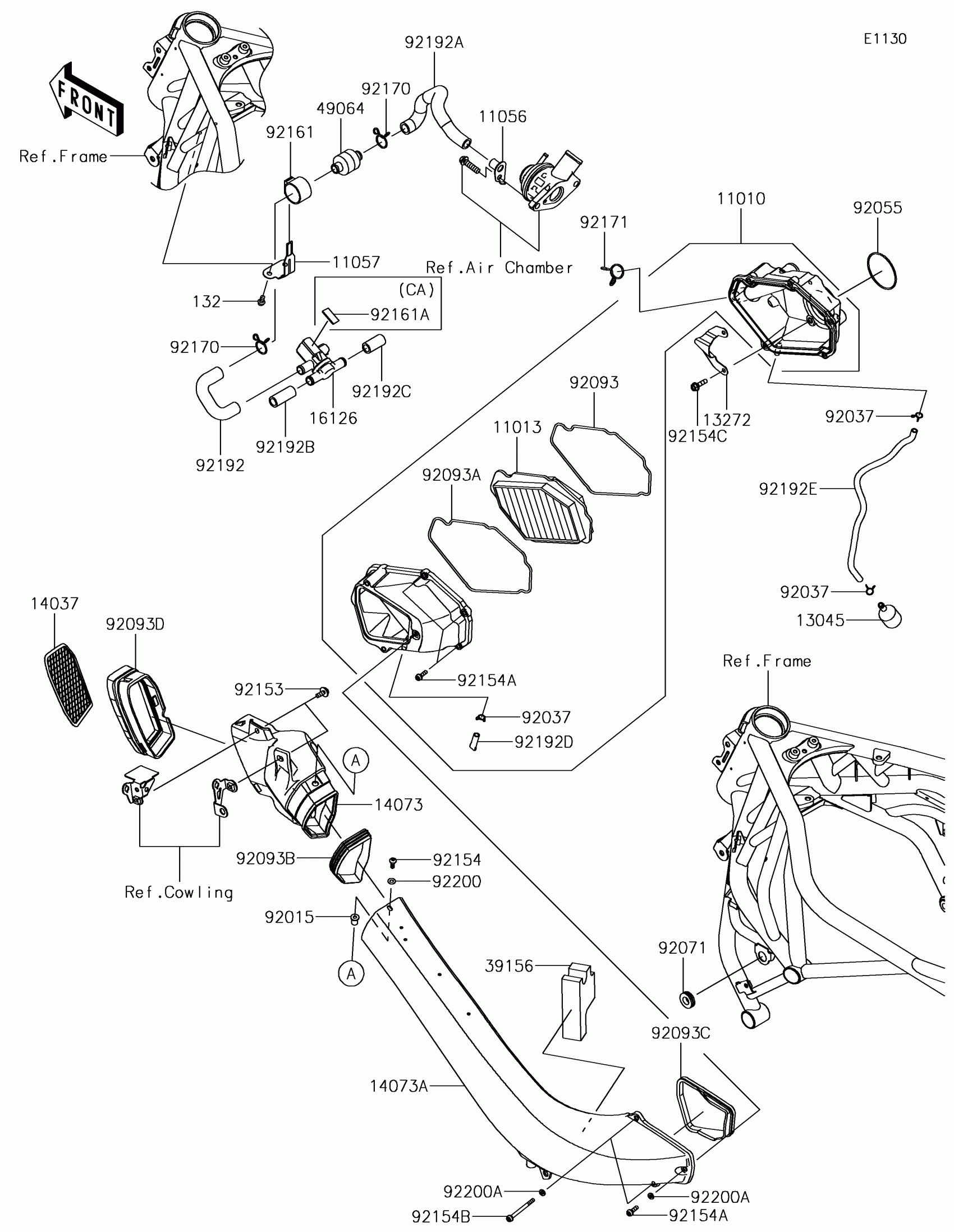

2018 Kawasaki Ninja H2™ SX AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11010

FILTER-ASSY-AIR

11010-0880

1
Out of stock

11013

ELEMENT-AIR FILTER

11013-0776

1
Out of stock

11056

BRACKET,2ND AIR TUBE

11056-4479

1
Out of stock

11057

BRACKET,FILTER

11057-1433

1
Out of stock

13045

RECEIVER-OIL

13045-1057

1
Out of stock

13272

PLATE

13272-2494

1
Out of stock

14037

SCREEN

14037-0789

1
Out of stock

14073

DUCT,RAM AIR,FR

14073-0879

1
Out of stock

14073A

DUCT,RAM AIR,RR,M.S.BLACK

14073-0880-660

1
Out of stock

16126

VALVE,AIR SWITCHING

16126-0745

1
Out of stock

39156

PAD

39156-2376

1
Out of stock

49064

FILTER-AIR

49064-0005

1
Out of stock

92015

NUT,WELL,5MM

92015-1757

1
Out of stock

92037

CLAMP

92037-1712

1
Out of stock

92055

RING-O,59.6X2.4

92055-0894

1
Out of stock

92071

GROMMET

92071-056

1
Out of stock

92093

SEAL,ELEMENT

92093-0614

1
Out of stock

92093A

SEAL,CASE

92093-0615

1
Out of stock

92093B

SEAL,RR

92093-0619

1
Out of stock

92093C

SEAL

92093-0620

1
Out of stock

92093D

SEAL,FR

92093-0711

1
Out of stock

92153

BOLT,UPSET-WP,6X16

92153-1587

1
Out of stock

92154

BOLT,SOCKET,5X16

92154-0209

1
Out of stock

92154A

BOLT,SOCKET,5X18

92154-1450

1
Out of stock

92154B

BOLT,SOCKET,5X18

92154-1452

1
Out of stock

92154C

BOLT,FLANGED,6X22

92154-3858

1
Out of stock

92161

DAMPER,FILTER

92161-1713

1

$10.58

In stock

92161A

DAMPER,12X27X2

92161-2122

1
Out of stock

92170

CLAMP

92170-1997

1

$2.19

In stock

92171

CLAMP

92171-0391

1

$3.71

In stock

92192

TUBE,ASWV-AIR FILTER

92192-1834

1
Out of stock

92192A

TUBE,FILTER INLET

92192-1835

1
Out of stock

92192B

TUBE,ASWV-HEAD CAP,LH

92192-1847

1
Out of stock

92192C

TUBE,ASWV-HEAD CAP,RH

92192-1848

1
Out of stock

92192D

TUBE,CAP

92192-1908

1
Out of stock

92192E

TUBE,6X9X345

92192-1910

1
Out of stock

92200

WASHER,NYLON,5.3X11.5X0.5

92200-1480

1
Out of stock

92200A

WASHER,5.2X10X1.5

92200-2217

1
Out of stock

132

1

$1.47

In stock
