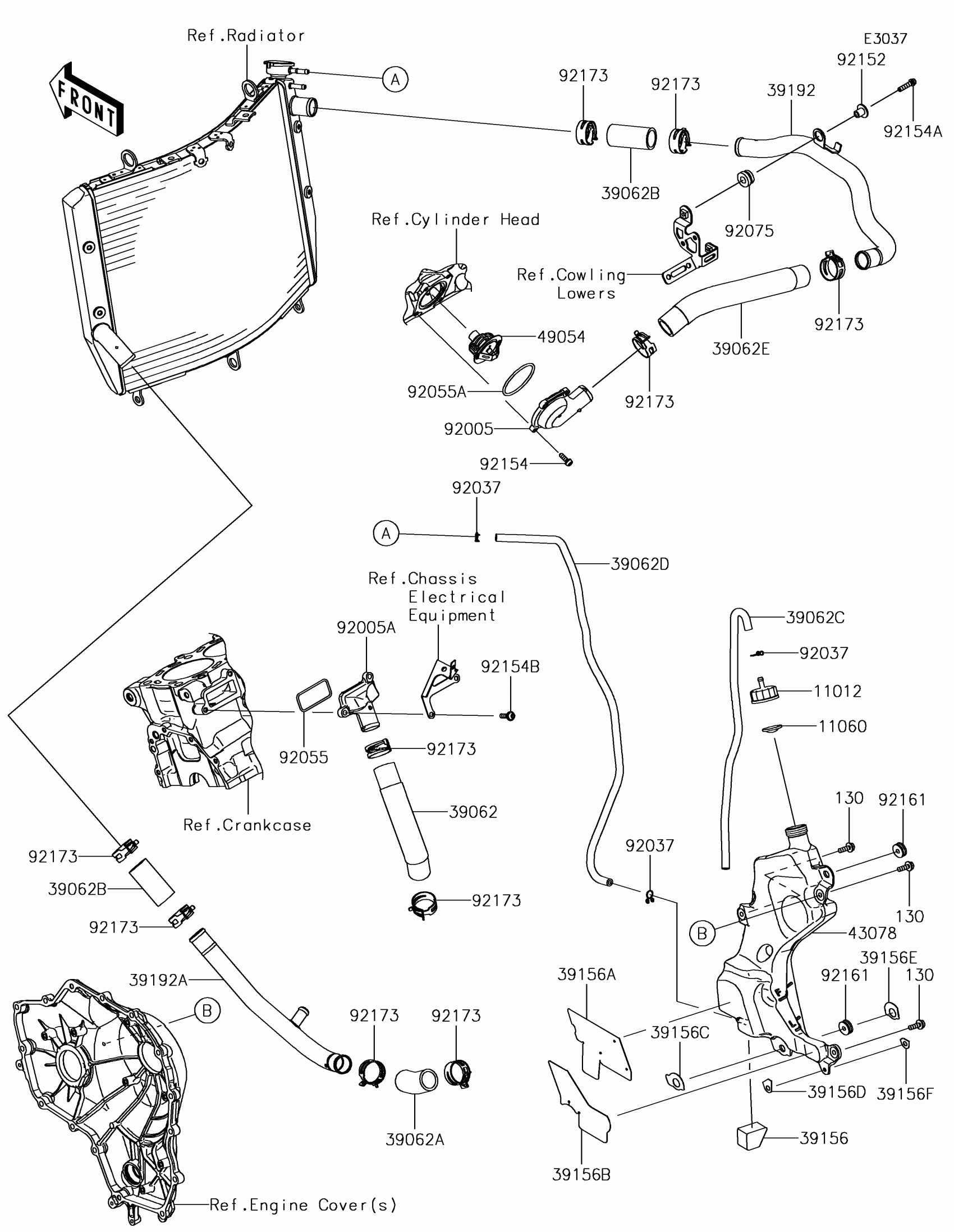

Kawasaki NINJA H2™ SX Water Pipe Diagram

#

Description
Price

11012

CAP

11012-1854

$9.14

11060

GASKET,RESERVOIR TANK CAP

11060-1349

$4.80

39062

HOSE-COOLING,W/PUMP-FITTING

39062-0681

$46.89

39062A

HOSE-COOLING,W/PIPE-W/PUMP

39062-0683

$9.53

39062B

HOSE-COOLING,RADIATOR-W/PIPE

39062-0701

$7.61

39062C

HOSE-COOLING

39062-0787

$9.81

39062D

HOSE-COOLING

39062-0788

$13.75

39062E

HOSE-COOLING,FITTING-W/PIPE

39062-0789

$50.69

39156

PAD,RESERVOIR

39156-2252

$7.68

39156A

PAD

39156-2389

$7.44

39156B

PAD

39156-2390

$7.64

39156C

PAD

39156-2391

$3.10

39156D

PAD

39156-2392

$2.37

39156E

PAD

39156-2393

$2.59

39156F

PAD

39156-2394

$2.19

39192

PIPE-WATER,RADIATOR,RH-HOSE

39192-0646

$220.48

39192A

PIPE-WATER,RADIATOR,LH-W/PUMP

39192-0648

$209.24

43078

RESERVOIR

43078-0592

$68.00

49054

THERMOSTAT

49054-0004

$51.97

92005

FITTING,THERMO COVER

92005-0887

$105.91

92005A

FITTING,CYLINDER

92005-0888

$114.96

92037

CLAMP,TUBE

92037-147

$5.61

92055

RING-O

92055-0809

$7.31

92055A

RING-O,54.5X2.6

92055-0810

$2.44

92075

DAMPER,RUBBER

92075-1123

$3.81

92152

COLLAR

92152-2112

$7.90

92154

BOLT,SOCKET,5X16

92154-1449

$1.10

92154A

BOLT,SOCKET,6X25

92154-1457

$1.32

92154B

BOLT,SOCKET,6X20

92154-1499

Unavailable

92161

DAMPER,6X20X7.5

92161-1991

$3.56

92173

CLAMP,34MM

92173-1360

$3.03

130

BOLT-FLANGED,6X18

130BA0618

$1.17
