2018 Kawasaki Ninja H2™ SX Super Charger Diagram

← All diagrams

Find the part on the Super Charger diagram for your 2018 Kawasaki Ninja H2™ SX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

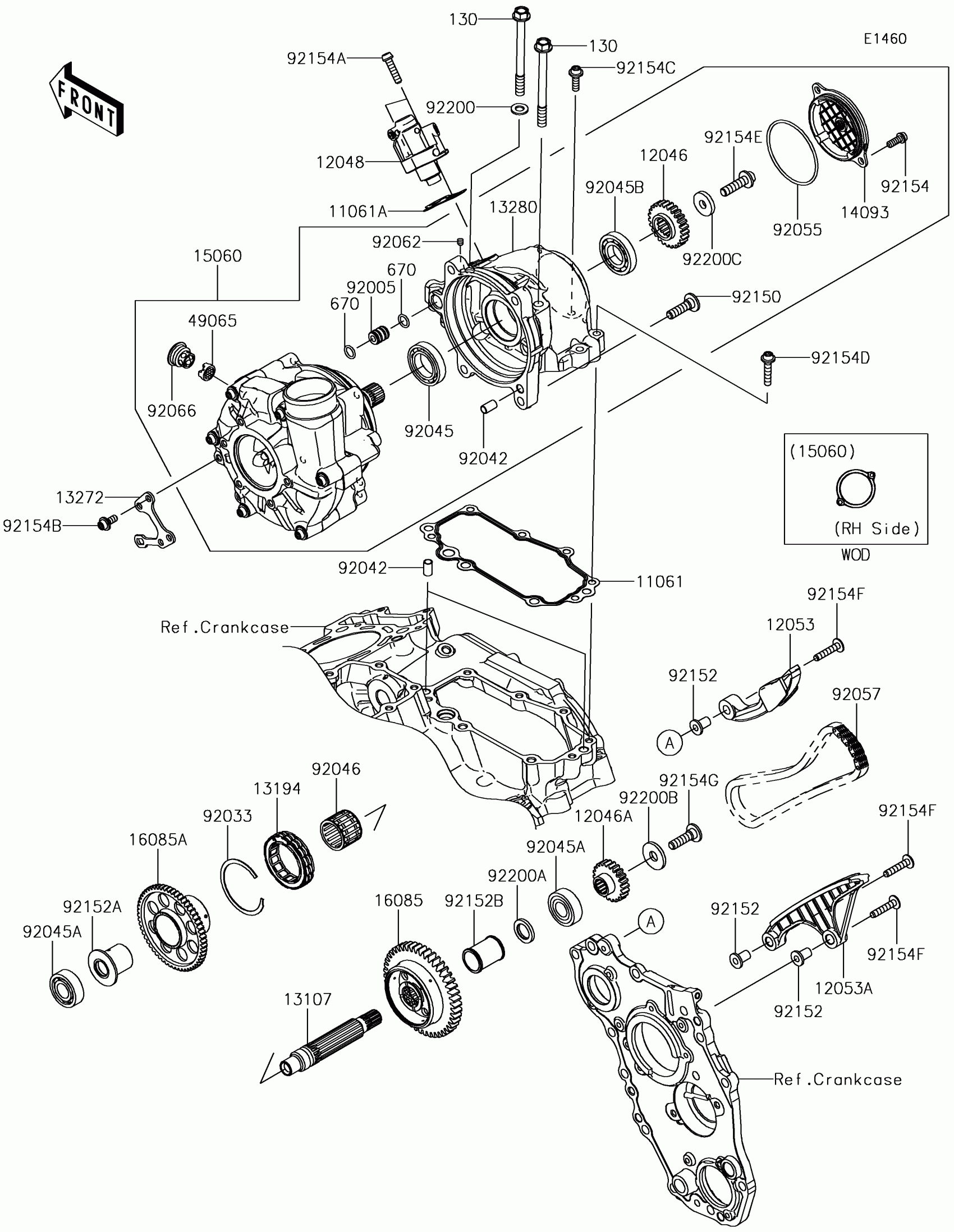

2018 Kawasaki Ninja H2™ SX Super Charger Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,HOLDER

11061-0948

1
Out of stock

11061A

GASKET,TENSIONER

11061-1279

1
Out of stock

12046

SPROCKET,DRIVEN,25T

12046-0584

1
Out of stock

12046A

SPROCKET,DRIVE,22T

12046-0604

1
Out of stock

12048

TENSIONER-ASSY

12048-0108

1
Out of stock

12053

GUIDE-CHAIN,UPP

12053-0249

1
Out of stock

12053A

GUIDE-CHAIN,LWR

12053-0250

1
Out of stock

13107

SHAFT

13107-0863

1
Out of stock

13194

CLUTCH-ONEWAY

13194-0017

1
Out of stock

13272

PLATE

13272-1849

1

$5.24

In stock

13280

HOLDER

13280-0917

1
Out of stock

14093

COVER

14093-0131

1
Out of stock

15060

COMPRESSOR-ASSY

15060-0006

1
Out of stock

16085

GEAR,BALANCER,46T

16085-0670

1
Out of stock

16085A

GEAR,STARTER,56T

16085-0671

1
Out of stock

49065

FILTER-OIL

49065-0041

1
Out of stock

92005

FITTING,OIL LINE

92005-0769

1
Out of stock

92033

RING-SNAP

92033-3731

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1
Out of stock

92045

BEARING-BALL,#6905

92045-036

1
Out of stock

92045A

BEARING-BALL,6202ZC3

92045-0785

1
Out of stock

92045B

BEARING-BALL

92045-1404

1
Out of stock

92046

BEARING-NEEDLE,22X32X24

92046-0622

1
Out of stock

92055

RING-O,2.4X62.6

92055-0790

1
Out of stock

92057

CHAIN,98XRH2020-78N2

92057-0633

1
Out of stock

92062

NOZZLE

92062-0004

1
Out of stock

92066

PLUG

92066-0821

1
Out of stock

92150

BOLT,8X30

92150-1728

1
Out of stock

92152

COLLAR

92152-1939

1
Out of stock

92152A

COLLAR

92152-1993

1
Out of stock

92152B

COLLAR

92152-2405

1
Out of stock

92154

BOLT,SOCKET,6X16

92154-1454

1
Out of stock

92154A

BOLT,SOCKET,6X25

92154-1458

1
Out of stock

92154B

BOLT,SOCKET,6X14

92154-1460

1
Out of stock

92154C

BOLT,SOCKET,6X20

92154-1667

1
Out of stock

92154D

BOLT,SOCKET,6X30

92154-1668

1
Out of stock

92154E

BOLT,SOCKET,8X30

92154-1679

1
Out of stock

92154F

BOLT

92154-2824

1
Out of stock

92154G

BOLT

92154-2825

1
Out of stock

92200

WASHER,8.2X16X1.6

92200-0047

1
Out of stock

92200A

WASHER,15.2X24X3

92200-1799

1
Out of stock

92200B

WASHER,10.2X30X3

92200-1935

1
Out of stock

92200C

WASHER,8.5X24X4.0

92200-3811

1
Out of stock

130

BOLT-FLANGED,8X90

130CC0890

1

$10.25

In stock

670

O RING,10MM

670D1510

1
Out of stock
