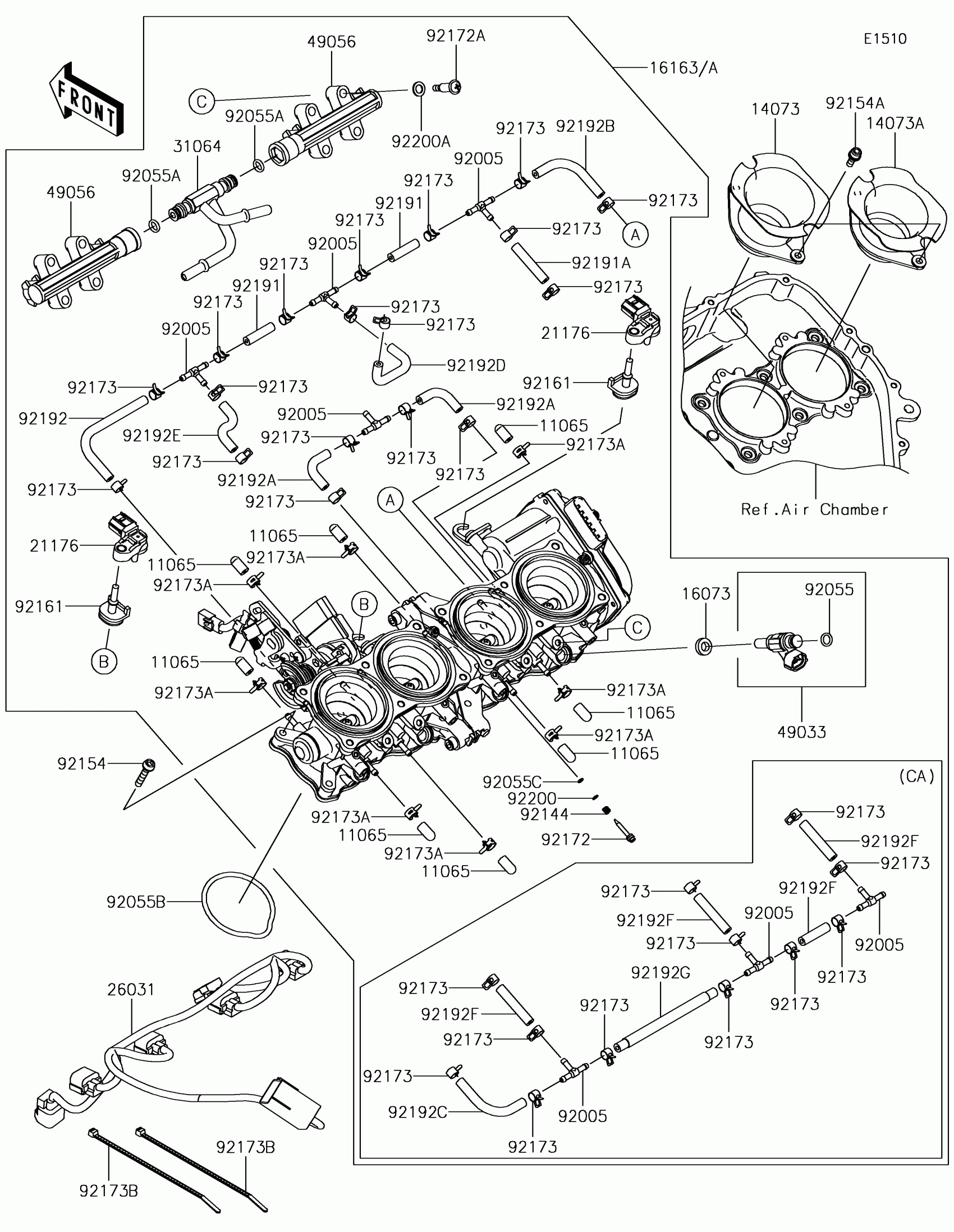

Kawasaki NINJA H2™ SX Throttle Diagram

#

Description
Price

11065

CAP

11065-0904

$5.61

11065

CAP

11065-0904

$5.61

14073

DUCT,AIR FUNNEL,#2

14073-0883

$52.81

14073A

DUCT,AIR FUNNEL,#1

14073-0887

$52.81

16073

INSULATOR

16073-0825

$11.03

16163

THROTTLE-ASSY

16163-0930

$2,239.19

16163A

THROTTLE-ASSY

16163-0932

$2,239.19

21176

SENSOR,BOOST

21176-3777

$143.30

26031

HARNESS

26031-2334

$99.40

31064

PIPE-COMP

31064-0674

$105.75

49033

NOZZLE-INJECTION

49033-0027

$118.68

49056

PIPE-INJECTION

49056-0037

$106.16

92005

FITTING

92005-1380

$15.71

92005

FITTING

92005-1380

$15.71

92055

RING-O,INJECTION NOZZLE

92055-0124

$2.09

92055A

RING-O

92055-0761

$7.31

92055B

RING-O

92055-0817

$8.42

92055C

RING-O

92055-0840

$1.73

92144

SPRING,THROTTLE STOP SCREW

92144-1674

$4.33

92154

BOLT,SOCKET,5X28

92154-1451

$0.86

92154A

BOLT,SOCKET,5X16

92154-1568

$1.88

92161

DAMPER

92161-0673

$4.85

92172

SCREW

92172-0156

$14.39

92172A

SCREW,PIPE INJECTION

92172-0828

$2.11

92173

CLAMP

92173-1420

$1.47

92173

CLAMP

92173-1420

$1.47

92173A

CLAMP

92173-1421

$1.47

92173A

CLAMP

92173-1421

$1.47

92173B

CLAMP

92173-1470

$0.93

92191

TUBE,3.2X7.4X30

92191-1550

$1.98

92191A

TUBE,3.2X7.4X40

92191-1551

$2.27

92192

TUBE,3.2X7.4X115

92192-0131

$3.68

92192A

TUBE,3.2X7.4X45

92192-1445

$7.41

92192B

TUBE,3.2X7.4X75

92192-1446

$10.93

92192C

TUBE,3.5X7.5X70

92192-1447

$13.05

92192D

TUBE

92192-1492

$13.05

92192E

TUBE

92192-1493

$13.05

92192F

TUBE,3.5X7.5X40

92192-1494

$9.53

92192G

TUBE,3.5X7.5X115

92192-1495

$24.31

92200

WASHER,PILOT AIR SCREW

92200-1564

$1.82

92200A

WASHER

92200-3807

$4.53
