2018 Kawasaki Ninja H2™ SX Fuel Evaporative System Diagram

← All diagrams

Find the part on the Fuel Evaporative System diagram for your 2018 Kawasaki Ninja H2™ SX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

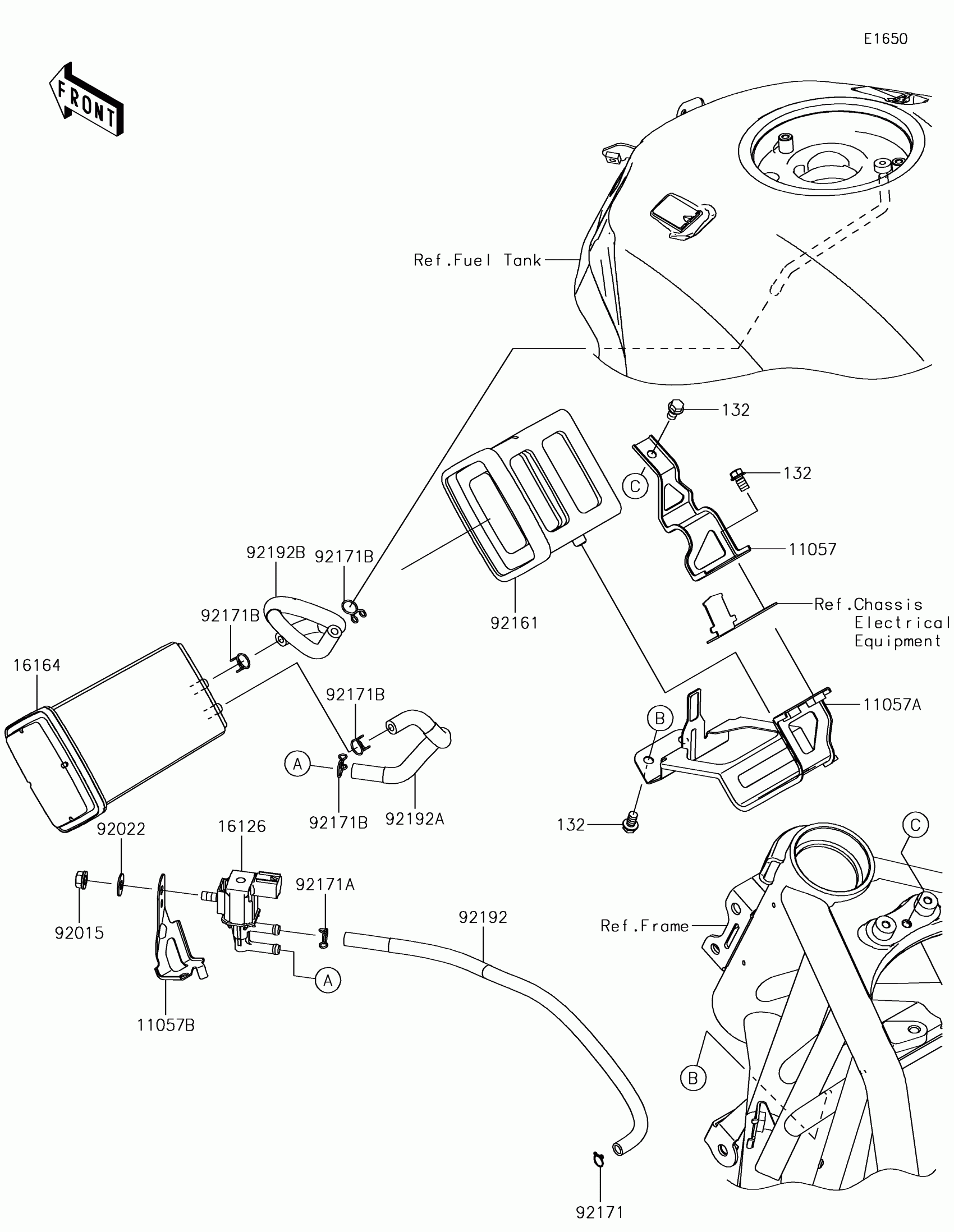

2018 Kawasaki Ninja H2™ SX Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,CANISTER,UPP

11057-1201

1
Out of stock

11057A

BRACKET,CANISTER,LWR

11057-1202

1
Out of stock

11057B

BRACKET,PVC VALVE

11057-1204

1
Out of stock

16126

VALVE,PCV

16126-0731

1
Out of stock

16164

CANISTER

16164-0012

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92022

WASHER,6.5X16X1.0

92022-1093

1
Out of stock

92161

DAMPER,CANISTER

92161-1715

1
Out of stock

92171

CLAMP

92171-0573

1
Out of stock

92171A

CLAMP

92171-0576

1
Out of stock

92171B

CLAMP

92171-0718

1
Out of stock

92192

TUBE,THROTTLE BODY-PVC VALVE

92192-1830

1
Out of stock

92192A

TUBE,CANISTER-PVC VALVE

92192-1831

1
Out of stock

92192B

TUBE,CANISTER-FUEL TANK

92192-1832

1
Out of stock

132

BOLT-FLANGED-SMALL,6X10

132BA0610

1
Out of stock
