2025 Kawasaki Ninja H2® ABS Valve Diagram

← All diagrams

Find the part on the Valve diagram for your 2025 Kawasaki Ninja H2® ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

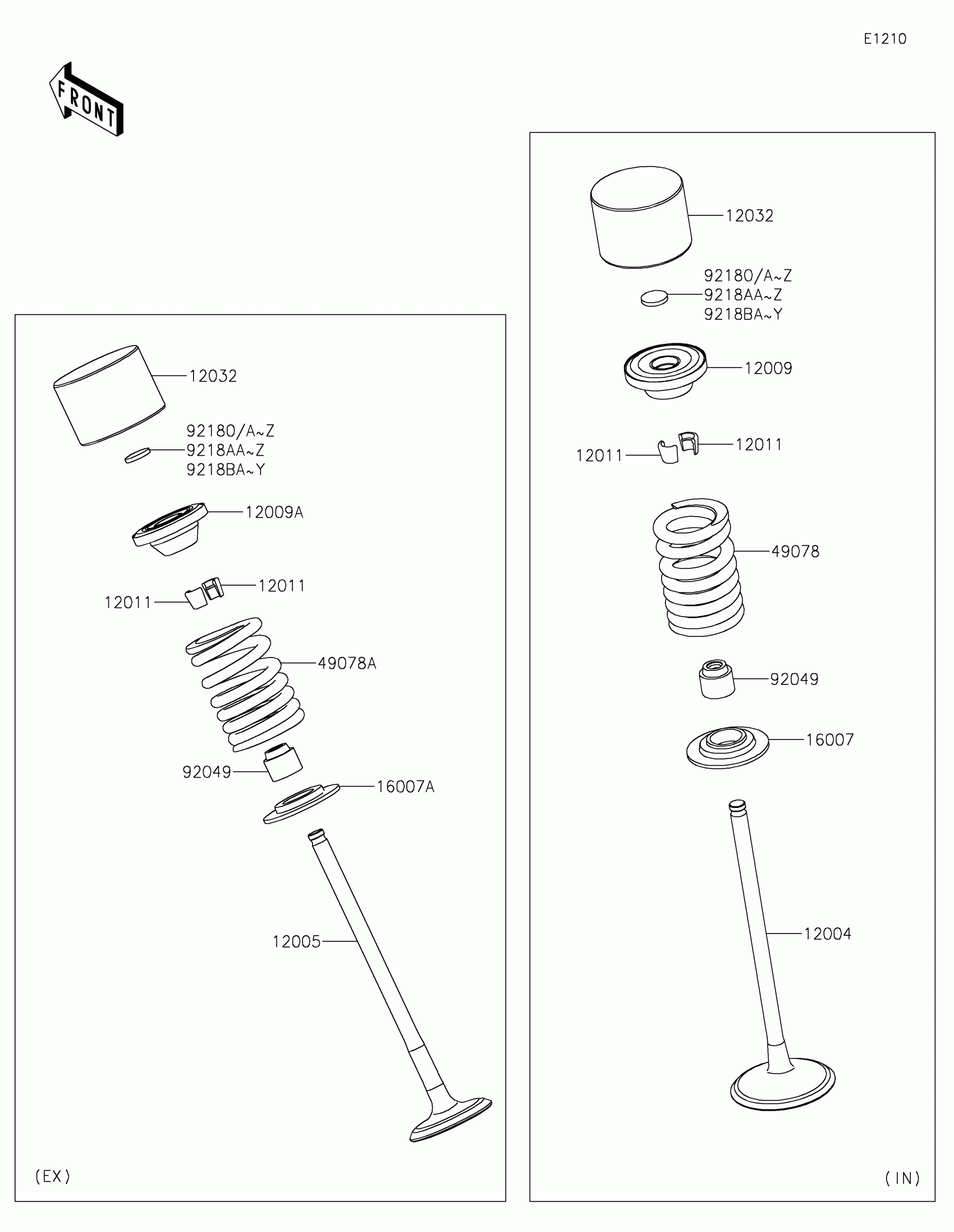

2025 Kawasaki Ninja H2® ABS Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12004

VALVE-INTAKE

12004-0744

1
Out of stock

12005

VALVE-EXHAUST

12005-0765

1
Out of stock

12009

RETAINER-VALVE SPRING,INTAKE

12009-0025

1
Out of stock

12009A

RETAINER-VALVE SPRING,EXHAUST

12009-0026

1
Out of stock

12011

COLLET

12011-1053

1
Out of stock

12032

TAPPET,D26.5

12032-0013

1
Out of stock

16007

SEAT-SPRING

16007-0034

1
Out of stock

16007A

SEAT-SPRING,EXHAUST

16007-0726

1
Out of stock

49078

SPRING-ENGINE VALVE,INTAKE

49078-0722

1
Out of stock

49078A

SPRING-ENGINE VALVE,EXHAUST

49078-0723

1
Out of stock

92049

SEAL-OIL,VSB 4.3 7.5 5.3 8.3

92049-1349

1
Out of stock

92180

SHIM,T=1.300

92180-0108

—
Out of stock

92180A

SHIM,T=1.325

92180-0109

—
Out of stock

92180B

SHIM,T=1.350

92180-0110

—
Out of stock

92180C

SHIM,T=1.375

92180-0865

—
Out of stock

92180D

SHIM,T=1.388

92180-0866

—
Out of stock

92180E

SHIM,T=1.400

92180-0867

—
Out of stock

92180F

SHIM,T=1.413

92180-0868

—
Out of stock

92180G

SHIM,T=1.425

92180-0869

—
Out of stock

92180H

SHIM,T=1.438

92180-0870

—
Out of stock

92180I

SHIM,T=1.450

92180-0871

—
Out of stock

92180J

SHIM,T=1.463

92180-0872

—
Out of stock

92180K

SHIM,T=1.475

92180-0873

—
Out of stock

92180L

SHIM,T=1.488

92180-0874

—
Out of stock

92180M

SHIM,T=1.500

92180-0875

—
Out of stock

92180N

SHIM,T=1.513

92180-0876

—
Out of stock

92180O

SHIM,T=1.525

92180-0877

—
Out of stock

92180P

SHIM,T=1.538

92180-0878

—
Out of stock

92180Q

SHIM,T=1.550

92180-0879

—
Out of stock

92180R

SHIM,T=1.563

92180-0880

—
Out of stock

92180S

SHIM,T=1.575

92180-0881

—
Out of stock

92180T

SHIM,T=1.588

92180-0882

—
Out of stock

92180U

SHIM,T=1.600

92180-0883

—
Out of stock

92180V

SHIM,T=1.613

92180-0884

—
Out of stock

92180W

SHIM,T=1.625

92180-0885

—
Out of stock

92180X

SHIM,T=1.638

92180-0886

—
Out of stock

92180Y

SHIM,T=1.650

92180-0887

—
Out of stock

92180Z

SHIM,T=1.663

92180-0888

—
Out of stock

9218AA

SHIM,T=1.675

92180-0889

—
Out of stock

9218AB

SHIM,T=1.688

92180-0890

—
Out of stock

9218AC

SHIM,T=1.700

92180-0891

—
Out of stock

9218AD

SHIM,T=1.713

92180-0892

—
Out of stock

9218AE

SHIM,T=1.725

92180-0893

—
Out of stock

9218AF

SHIM,T=1.738

92180-0894

—
Out of stock

9218AG

SHIM,T=1.750

92180-0895

—
Out of stock

9218AH

SHIM,T=1.763

92180-0896

—
Out of stock

9218AI

SHIM,T=1.775

92180-0897

—
Out of stock

9218AJ

SHIM,T=1.788

92180-0898

—
Out of stock

9218AK

SHIM,T=1.800

92180-0899

1
Out of stock

9218AL

SHIM,T=1.813

92180-0900

—
Out of stock

9218AM

SHIM,T=1.825

92180-0901

—
Out of stock

9218AN

SHIM,T=1.838

92180-0902

—
Out of stock

9218AO

SHIM,T=1.850

92180-0903

—
Out of stock

9218AP

SHIM,T=1.863

92180-0904

—
Out of stock

9218AQ

SHIM,T=1.875

92180-0905

—
Out of stock

9218AR

SHIM,T=1.888

92180-0906

—
Out of stock

9218AS

SHIM,T=1.900

92180-0907

—
Out of stock

9218AT

SHIM,T=1.913

92180-0908

—
Out of stock

9218AU

SHIM,T=1.925

92180-0909

—
Out of stock

9218AV

SHIM,T=1.938

92180-0910

—
Out of stock

9218AW

SHIM,T=1.950

92180-0911

—
Out of stock

9218AX

SHIM,T=1.963

92180-0912

—
Out of stock

9218AY

SHIM,T=1.975

92180-0913

—
Out of stock

9218AZ

SHIM,T=1.988

92180-0914

—
Out of stock

9218BA

SHIM,T=2.000

92180-0915

—
Out of stock

9218BB

SHIM,T=2.013

92180-0916

—
Out of stock

9218BC

SHIM,T=2.025

92180-0917

—
Out of stock

9218BD

SHIM,T=2.038

92180-0918

—
Out of stock

9218BE

SHIM,T=2.050

92180-0919

—
Out of stock

9218BF

SHIM,T=2.063

92180-0920

—
Out of stock

9218BG

SHIM,T=2.075

92180-0921

—
Out of stock

9218BH

SHIM,T=2.088

92180-0922

—
Out of stock

9218BI

SHIM,T=2.100

92180-0923

—
Out of stock

9218BJ

SHIM,T=2.113

92180-0924

—
Out of stock

9218BK

SHIM,T=2.125

92180-0925

—
Out of stock

9218BL

SHIM,T=2.138

92180-0926

—
Out of stock

9218BM

SHIM,T=2.150

92180-0927

—
Out of stock

9218BN

SHIM,T=2.163

92180-0928

—
Out of stock

9218BO

SHIM,T=2.175

92180-0929

—
Out of stock

9218BP

SHIM,T=2.188

92180-0930

—
Out of stock

9218BQ

SHIM,T=2.200

92180-0931

—
Out of stock

9218BR

SHIM,T=2.213

92180-0932

—
Out of stock

9218BS

SHIM,T=2.225

92180-0933

—
Out of stock

9218BT

SHIM,T=2.238

92180-0934

—
Out of stock

9218BU

SHIM,T=2.250

92180-0935

—
Out of stock

9218BV

SHIM,T=2.263

92180-0936

—
Out of stock

9218BW

SHIM,T=2.275

92180-0937

—
Out of stock

9218BX

SHIM,T=2.288

92180-0938

—
Out of stock

9218BY

SHIM,T=2.300

92180-0939

—
Out of stock
