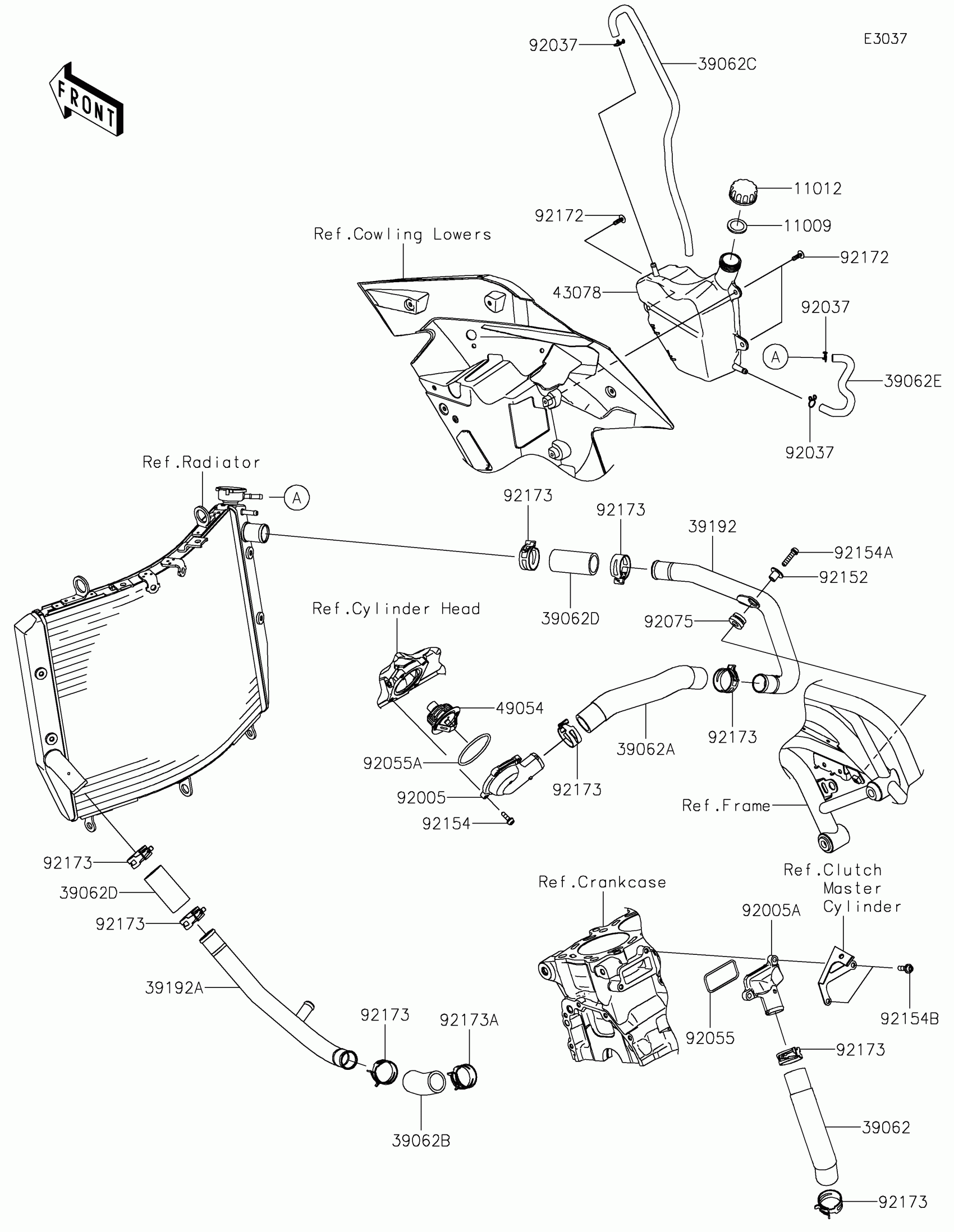

Kawasaki NINJA H2® ABS Water Pipe Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.08

11012

CAP

11012-1084

$1.25

39062

HOSE-COOLING,W/PUMP-FITTING

39062-0681

$30.92

39062A

HOSE-COOLING,THERMO-W/PIPE

39062-0682

$43.15

39062B

HOSE-COOLING,W/PIPE-W/PUMP

39062-0683

$9.53

39062C

HOSE-COOLING,OVER FLOW

39062-0687

$9.29

39062D

HOSE-COOLING,RADIATOR-W/PIPE

39062-0701

$7.61

39062E

HOSE-COOLING,RETURN

39062-0718

$8.85

39192

PIPE-WATER,RAD.-THERMO COVER

39192-0584

$220.48

39192A

PIPE-WATER,RADIATOR-WATER PUMP

39192-0585

$209.24

43078

RESERVOIR

43078-0574

$50.29

49054

THERMOSTAT

49054-0004

$51.97

92005

FITTING,THERMO COVER

92005-0770

$96.54

92005A

FITTING,CYLINDER

92005-0772

$104.15

92037

CLAMP,TUBE

92037-147

$5.61

92055

RING-O

92055-0809

$7.31

92055A

RING-O,54.5X2.6

92055-0810

$2.44

92075

DAMPER,RUBBER

92075-1123

$3.81

92152

COLLAR

92152-2112

$7.90

92154

BOLT,SOCKET,5X16

92154-1449

$1.10

92154A

BOLT,SOCKET,6X25

92154-1457

$1.32

92154B

BOLT,SOCKET,6X20

92154-1499

$1.32

92172

SCREW,TAPPING,5X16

92172-0175

$1.32

92173

CLAMP,34MM

92173-1360

$3.03

92173A

CLAMP

92173-2953

$8.00
