2025 Kawasaki Ninja H2® ABS Radiator Diagram

← All diagrams

Find the part on the Radiator diagram for your 2025 Kawasaki Ninja H2® ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

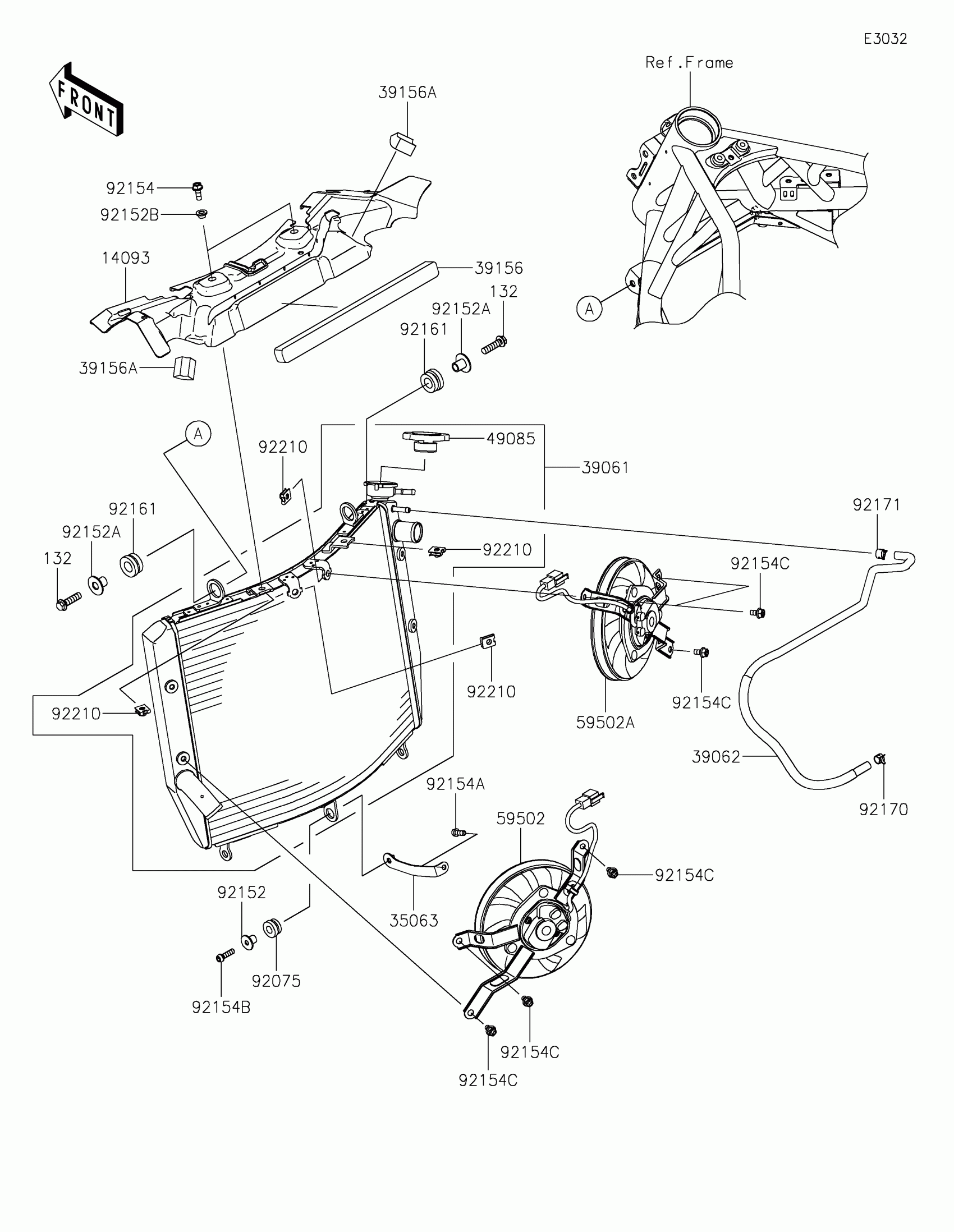

2025 Kawasaki Ninja H2® ABS Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093

COVER,HEAT

14093-0158

1
Out of stock

35063

STAY,RADIATOR

35063-0997

1
Out of stock

39061

RADIATOR-ASSY

39061-0698

1

$1,147.10

In stock

39062

1

$21.34

In stock

39156

PAD,20X285X15

39156-1840

1

$3.58

In stock

39156A

PAD,27X27X15

39156-1841

1

$0.98

In stock

49085

CAP-ASSY-PRESSURE

49085-0006

1
Out of stock

59502

FAN-ASSY

59502-0601

1
Out of stock

59502A

FAN-ASSY

59502-0602

1
Out of stock

92075

DAMPER,RUBBER

92075-1123

1
Out of stock

92152

COLLAR,6.5X10X13.1

92152-0332

1
Out of stock

92152A

COLLAR

92152-0439

1
Out of stock

92152B

COLLAR

92152-2111

1
Out of stock

92154

BOLT,FLANGED,6X16

92154-0887

1
Out of stock

92154A

BOLT,SOCKET,6X16

92154-1454

1
Out of stock

92154B

BOLT,SOCKET,6X22

92154-1456

1
Out of stock

92154C

BOLT

92154-1648

1
Out of stock

92161

DAMPER

92161-0304

1
Out of stock

92170

CLAMP

92170-1493

1

$3.97

In stock

92171

CLAMP

92171-0719

1
Out of stock

92210

NUT

92210-1323

1
Out of stock

132

1

$3.11

In stock
