Partiron

2025 Kawasaki Ninja H2® ABS Balancer Diagram

← All diagrams

Find the part on the Balancer diagram for your 2025 Kawasaki Ninja H2® ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

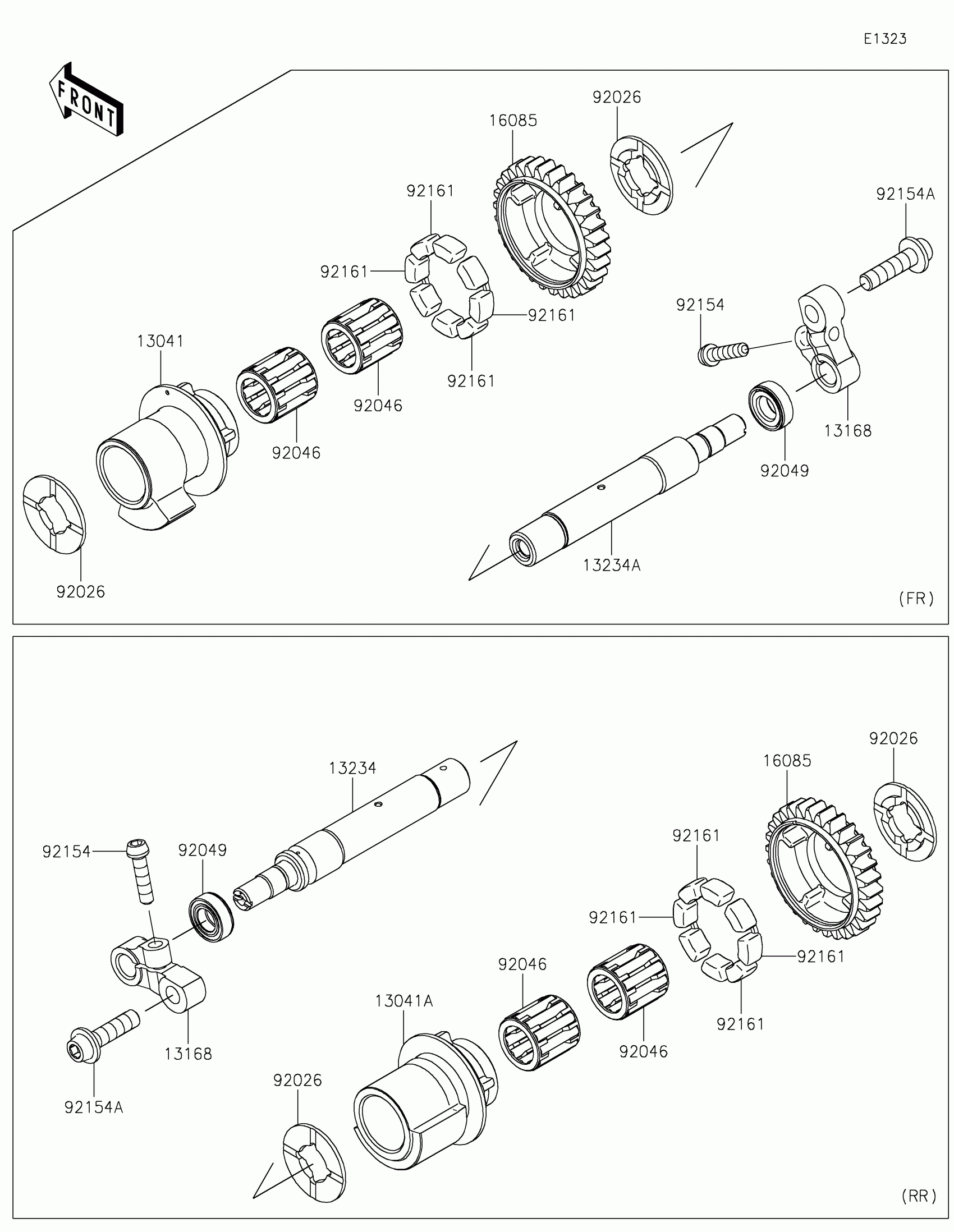

2025 Kawasaki Ninja H2® ABS Balancer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13041

BALANCER,FR

13041-0043

1
Out of stock

13041A

BALANCER,RR

13041-0045

1
Out of stock

13168

LEVER,BACKLASH ADJUSTMENT

13168-0831

1
Out of stock

13234

SHAFT-COMP

13234-0050

1
Out of stock

13234A

SHAFT-COMP

13234-0595

1
Out of stock

16085

GEAR,30T

16085-0621

1
Out of stock

92026

SPACER

92026-0730

1
Out of stock

92046

BEARING-NEEDLE

92046-1266

1
Out of stock

92049

SEAL-OIL

92049-0720

1
Out of stock

92154

BOLT,SOCKET,6X25

92154-1457

1
Out of stock

92154A

BOLT,SOCKET,8X30

92154-1679

1
Out of stock

92161

DAMPER

92161-1055

1
Out of stock
