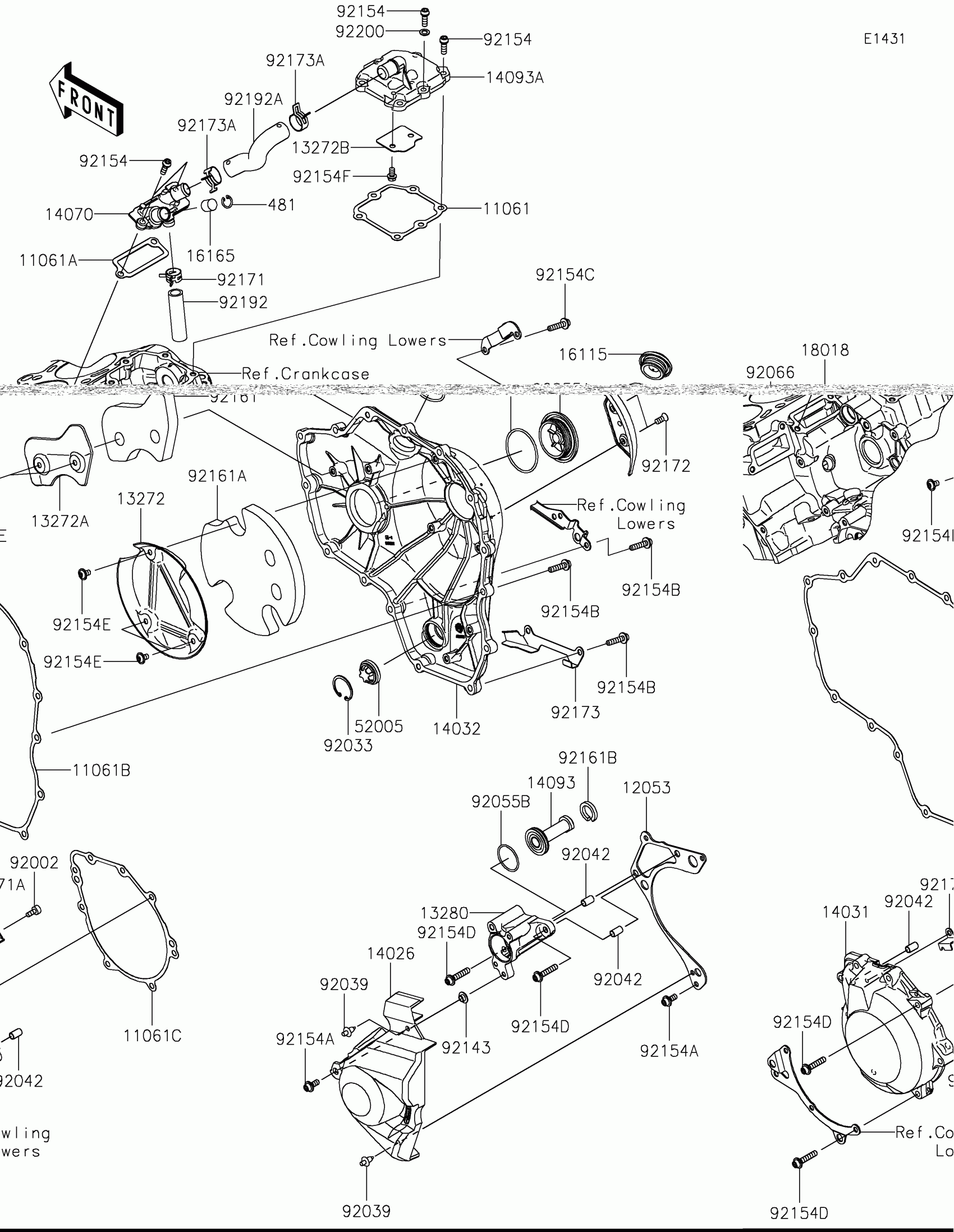

Kawasaki NINJA H2® ABS Engine Cover(s) Diagram

#

Description
Price

11061

GASKET,BALANCER COVER

11061-0941

$3.58

11061A

GASKET,BREATHER

11061-0942

$3.58

11061B

GASKET,CLUTCH COVER

11061-0944

$26.63

11061C

GASKET,GENERATOR COVER

11061-0945

$10.56

12053

GUIDE-CHAIN

12053-0221

$66.12

13272

PLATE

13272-1853

$43.56

13272A

PLATE

13272-1854

$28.84

13272B

PLATE

13272-1901

$1.47

13280

HOLDER

13280-0891

$95.27

14026

COVER-CHAIN

14026-0119

$101.01

14031

COVER-GENERATOR

14031-0621

$180.06

14032

COVER-CLUTCH

14032-0625

$286.71

14070

BODY-BREATHER

14070-0013

$167.66

14093

COVER,ROD

14093-0569

$180.28

14093A

COVER,BALANCER

14093-0631

$119.95

16115

CAP-OIL FILLER

16115-0030

$50.21

16165

SEPARATOR

16165-0011

$17.32

18018

PLATE-HEAT GUARD

18018-0590

$12.69

52005

GAUGE

52005-1120

$18.41

92002

BOLT,SOCKET,6X12

92002-1796

$3.57

92033

RING-SNAP

92033-1305

$1.93

92039

RIVET

92039-0068

$2.09

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92055

RING-O,49.7X2.4

92055-0183

$1.73

92055A

RING-O,31.5X2.6

92055-049

$3.29

92055B

RING-O,29.7X1.9

92055-0882

$13.86

92066

PLUG

92066-0800

$98.52

92143

COLLAR

92143-1331

$3.01

92154

BOLT,SOCKET,6X18

92154-1455

Unavailable

92154A

BOLT,SOCKET,6X14

92154-1460

$2.05

92154B

BOLT,SOCKET,6X25

92154-1461

$1.32

92154C

BOLT,SOCKET,6X25

92154-1462

$1.88

92154D

BOLT,SOCKET,6X30

92154-1463

$1.47

92154E

BOLT,SOCKET,6X10

92154-1551

$1.27

92154F

BOLT,FLANGED,6X10

92154-2819

$1.81

92161

DAMPER

92161-1718

$12.95

92161A

DAMPER

92161-1771

$29.50

92161B

DAMPER

92161-1782

$0.93

92171

CLAMP

92171-0533

$2.71

92171A

CLAMP

92171-0938

$3.51

92172

SCREW,TORX,6X14

92172-0901

$1.44

92173

CLAMP

92173-1387

$7.47

92173A

CLAMP

92173-1702

$4.93

92192

TUBE,BREATHER IN-SIDE

92192-1432

$13.54

92192A

TUBE,BREATHER OUT-SIDE

92192-1440

$20.39

92200

WASHER,6.8X11.5X1.0

92200-1461

$1.89

481

CIRCLIP-TYPE-C

481J1400

$1.27
