2025 Kawasaki Ninja H2® ABS Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2025 Kawasaki Ninja H2® ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

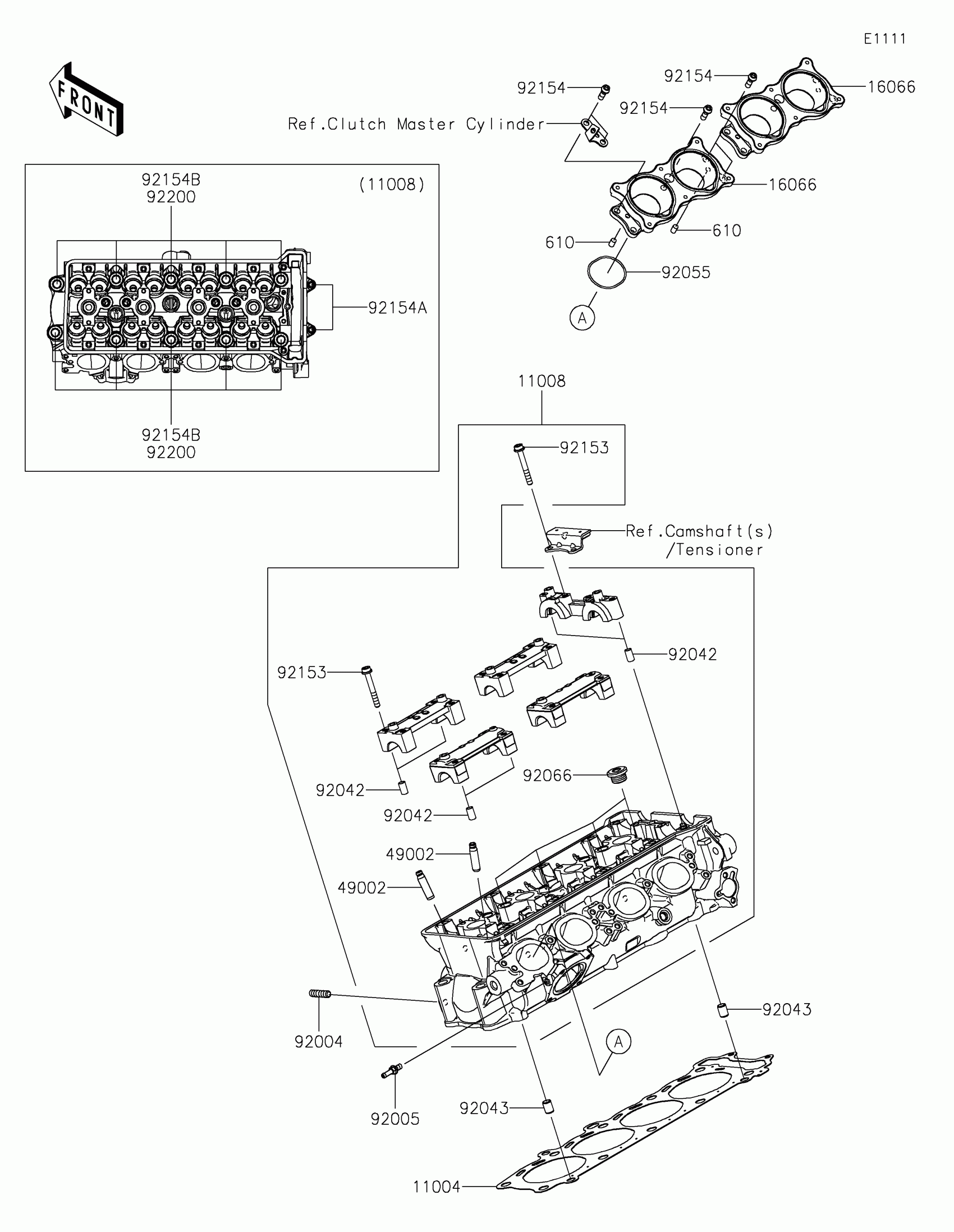

2025 Kawasaki Ninja H2® ABS Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD

11004-0754

1
Out of stock

11008

HEAD-COMP-CYLINDER

11008-0960

1
Out of stock

16066

HOLDER-THROTTLE BODY

16066-0003

1
Out of stock

49002

GUIDE-VALVE

49002-0009

1
Out of stock

92004

STUD,8X18

92004-0049

1
Out of stock

92005

FITTING

92005-0826

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1
Out of stock

92043

PIN,8.2X10X14

92043-1264

1
Out of stock

92055

RING-O,43.7X1.9

92055-1401

1
Out of stock

92066

PLUG,18X10

92066-0832

1
Out of stock

92153

BOLT,SOCKET,6X45

92153-0656

1
Out of stock

92154

BOLT,SOCKET,6X18

92154-1455

1
Out of stock

92154A

BOLT,SOCKET,6X25

92154-1457

1
Out of stock

92154B

BOLT,11X103

92154-1819

1
Out of stock

92200

WASHER,11.2X18.2X1.8

92200-0940

1
Out of stock

610

ROLLER,6X10

610A0610

1
Out of stock
