2025 Kawasaki Ninja H2® ABS Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2025 Kawasaki Ninja H2® ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

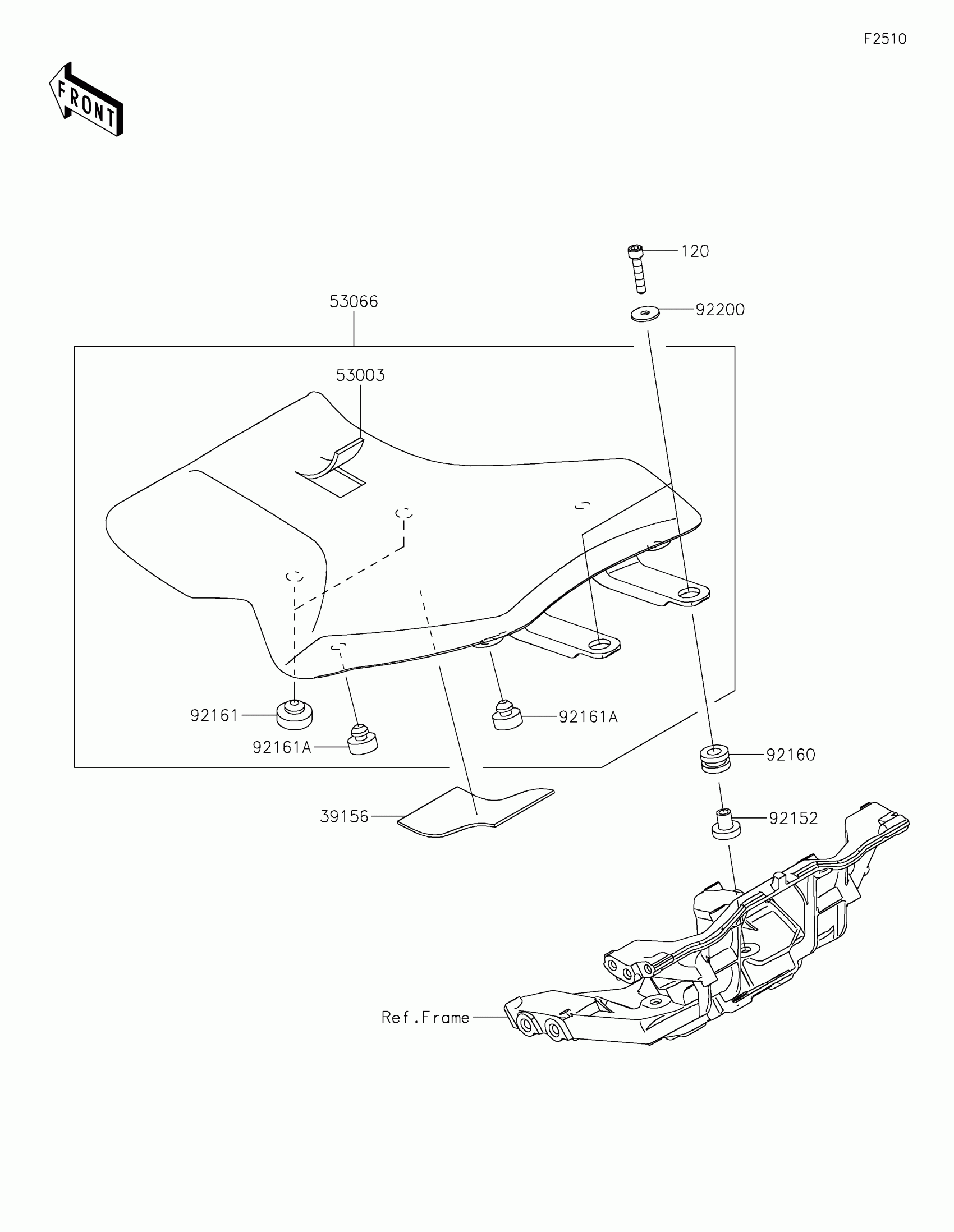

2025 Kawasaki Ninja H2® ABS Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39156

PAD,RR FRM

39156-1778

1

$4.49

In stock

53003

LEATHER,BLACK

53003-0404-MA

1

$98.82

In stock

53066

SEAT-ASSY,BLACK

53066-0462-MA

1
Out of stock

92152

COLLAR,6.5X20X16.8

92152-2119

1
Out of stock

92160

DAMPER,10X20X12

92160-1167

1
Out of stock

92161

DAMPER,SEAT,10X25X8

92161-0095

1
Out of stock

92161A

DAMPER,8X20X8

92161-0223

1
Out of stock

92200

WASHER,6X20X1.6

92200-0212

1
Out of stock

120

BOLT-SOCKET,6X30

120CA0630

1
Out of stock
