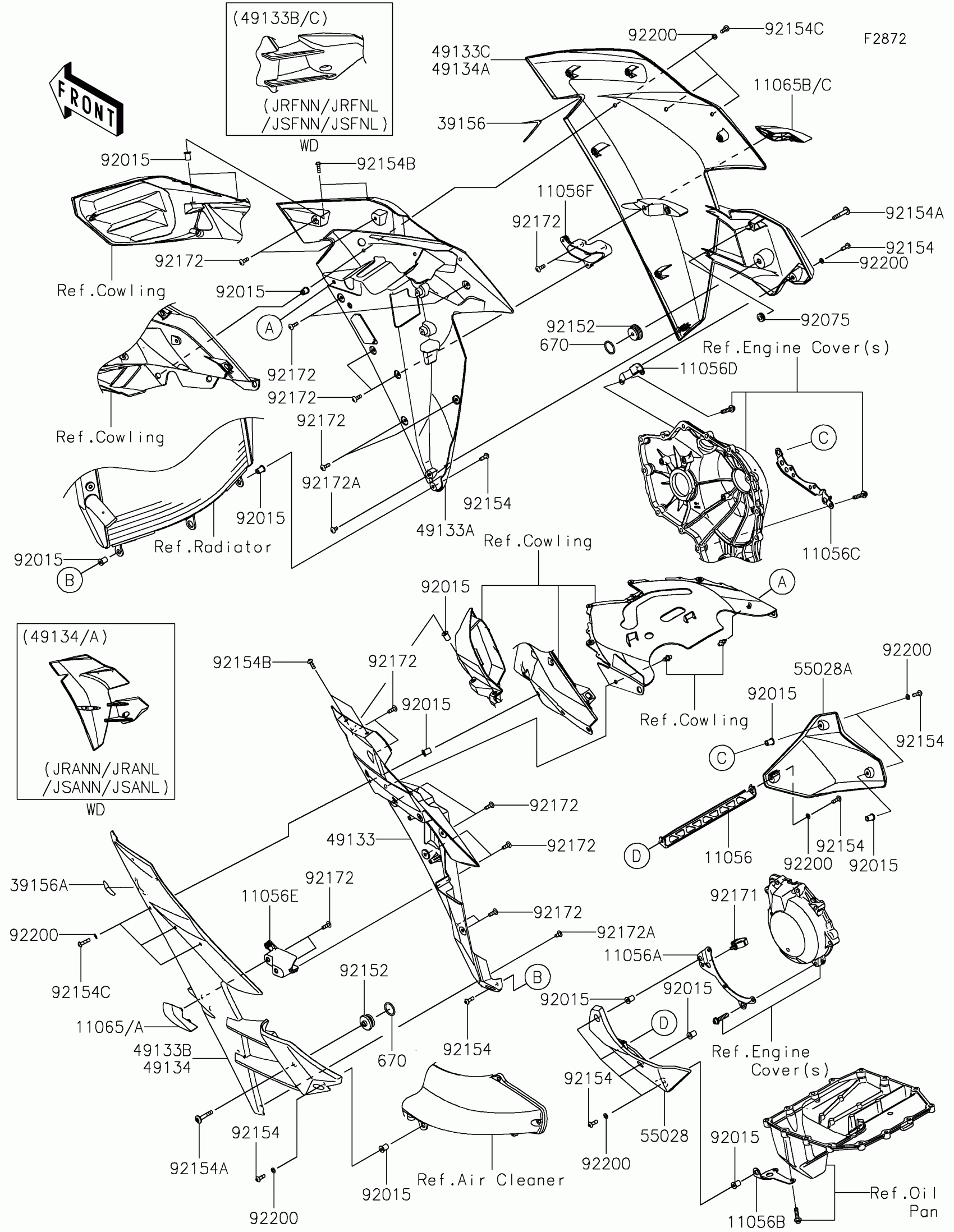

Kawasaki NINJA H2® ABS Cowling Lowers Diagram

#

Description
Price

11056

BRACKET,LWR COWL.

11056-7016

$23.78

11056A

BRACKET,LWR COWL.,G. COVER

11056-7017

$9.37

11056B

BRACKET,LWR COWL.,OIL PAN

11056-7018

$5.44

11056C

BRACKET,LWR COWL.,RH

11056-7019

$12.69

11056D

BRACKET,CLUTCH COVER

11056-7020

$7.69

11056E

BRACKET,SHROUD,LH

11056-7745

$5.44

11056F

BRACKET,OVER FLOW HOSE

11056-7746

$5.44

11065A

CAP,SHROUD,LH,M.C.S.BLACK

11065-0886-53X

$139.41

11065C

CAP,SHROUD,RH,M.C.S.BLACK

11065-0887-53X

$139.41

39156

PAD,SHROUD,RH

39156-2109

$3.58

39156A

PAD,SHROUD,LH

39156-2110

$3.58

49133

SHROUD,INNER,LH

49133-0015

Unavailable

49133A

SHROUD,INNER,RH

49133-0016

$88.15

49133B

SHROUD,LH,M.C.S.BLACK

49133-5053-53X

$1,605.78

49133C

SHROUD,RH,M.C.S.BLACK

49133-5054-53X

$1,605.78

55028

COWLING,LWR,LH,M.F.S.BLACK

55028-0540-739

$183.98

55028A

COWLING,LWR,RH,M.F.S.BLACK

55028-0541-739

$183.98

92015

NUT,WELL,5MM

92015-1757

$5.58

92075

DAMPER

92075-161

$3.57

92152

COLLAR,6.3X30X16.7

92152-1967

$23.07

92154

BOLT,SOCKET,5X16

92154-1560

$1.77

92154A

BOLT,SOCKET,6X34

92154-1627

$2.05

92154B

BOLT,SOCKET,5X16

92154-1729

$1.32

92154C

BOLT,SOCKET,5X20

92154-1781

$0.95

92171

CLAMP,20MM DIA.

92171-0069

$2.29

92172

SCREW,TAPPING,5X16

92172-0175

$1.32

92172A

SCREW,TAPPING,5X10

92172-0335

$1.57

92200

WASHER,5.2X10X1.0

92200-1820

$0.60

670

O RING,22MM

670B2022

$3.57
