2025 Kawasaki Ninja H2® ABS Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 2025 Kawasaki Ninja H2® ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

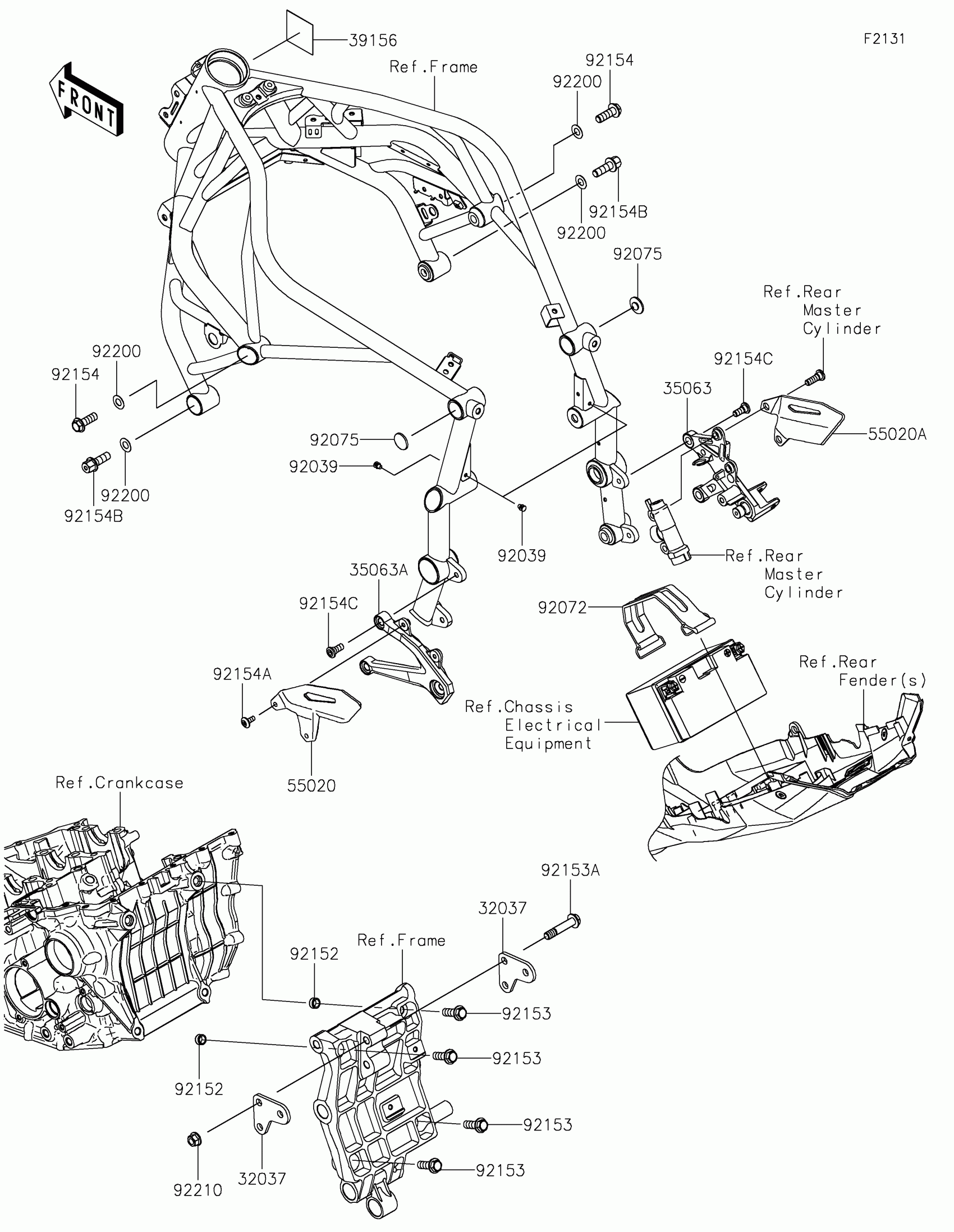

2025 Kawasaki Ninja H2® ABS Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32037

1

$20.76

In stock

35063

STAY,STEP,RH,F.W.M.GRAY

35063-0994-46T

1

$278.70

In stock

35063A

STAY,STEP,LH,F.W.M.GRAY

35063-1308-46T

1

$278.70

In stock

39156

PAD,50X50X0.5

39156-2132

1

$3.27

In stock

55020

GUARD,HEEL,LH

55020-1835

1

$93.76

In stock

55020A

GUARD,HEEL,RH

55020-1836

1

$93.76

In stock

92039

RIVET,PLASTI

92039-0773

1

$1.10

In stock

92072

BAND,L=150

92072-1338

1

$14.24

In stock

92075

DAMPER,RUBBER

92075-261

1

$3.85

In stock

92152

COLLAR,DOWEL PIN

92152-0679

1

$6.05

In stock

92153

BOLT,FLANGED,10X30

92153-0801

1
Out of stock

92153A

BOLT,FLANGED,10X51

92153-1545

1
Out of stock

92154

BOLT,FLANGED,10X30

92154-0543

1

$7.48

In stock

92154A

BOLT,SOCKET,6X14

92154-0745

1

$1.93

In stock

92154B

BOLT,FLANGED,10X30

92154-1566

1

$68.51

In stock

92154C

BOLT,SOCKET8X20

92154-1711

1

$1.68

In stock

92200

WASHER,10.2X20X0.5

92200-1732

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-1139

1
Out of stock
