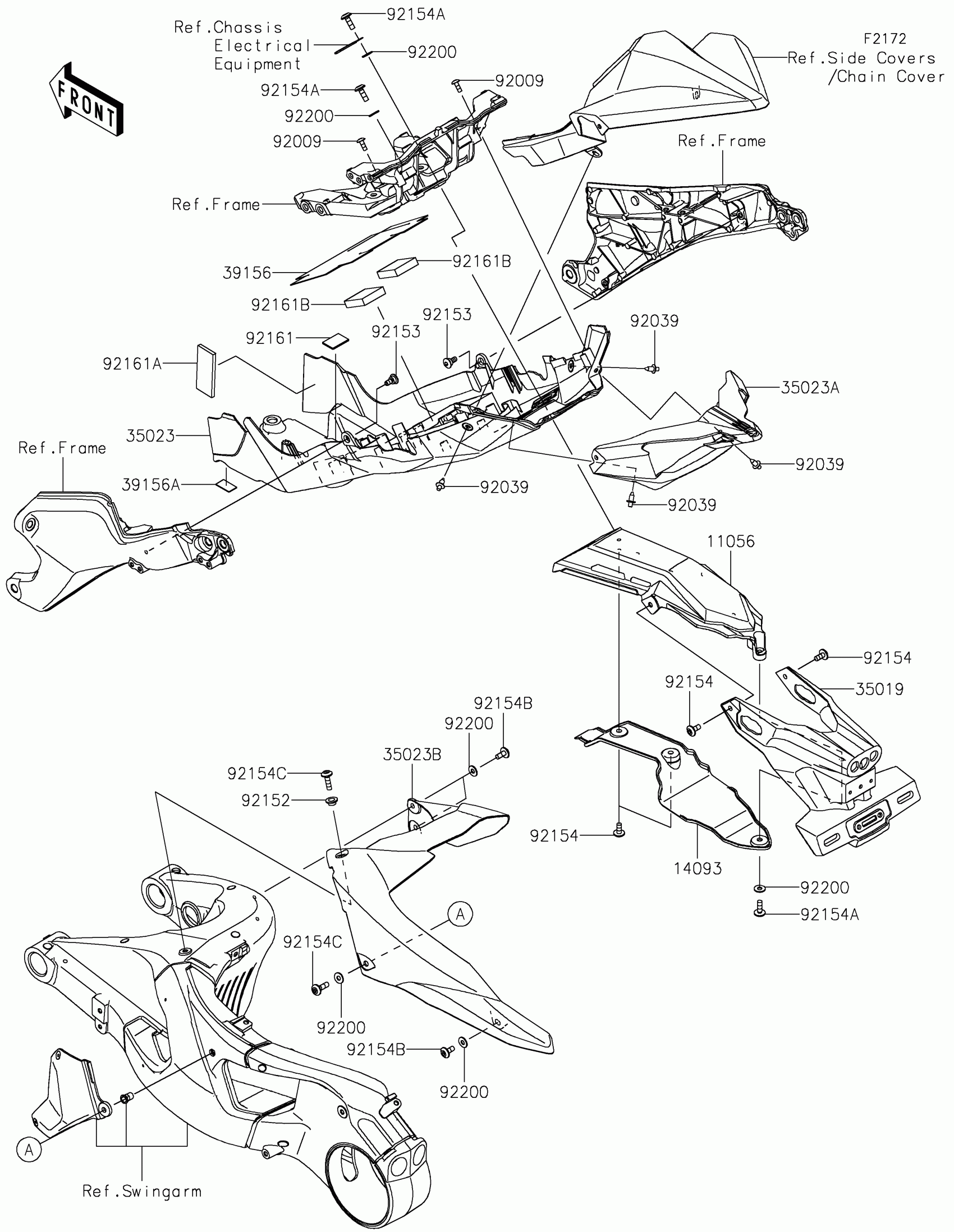

Kawasaki NINJA H2® ABS Rear Fender(s) Diagram

Description

Price

11056

BRACKET,FLAP STAY

11056-4341

$442.86

14093

COVER,FLAP STAY BRKT.

14093-0177

$15.44

35019

FLAP

35019-0667

$35.79

35023

FENDER-REAR,FR

35023-0397

$172.33

35023A

FENDER-REAR,RR

35023-0398

$39.93

35023B

FENDER-REAR

35023-0399

$49.69

39156

PAD,195X115X1

39156-1884

$24.20

39156A

PAD,15X25X1

39156-2119

$1.59

92009

SCREW,TAPPING,5X14

92009-1197

$2.99

92039

RIVET

92039-0068

$2.09

92152

COLLAR,6.5X10X6.2

92152-2152

$2.64

92153

BOLT,SOCKET,6MM

92153-1956

$2.98

92154

BOLT,SOCKET,6X14

92154-1025

$1.66

92154A

BOLT,SOCKET,6X18

92154-1694

$1.72

92154B

BOLT,SOCKET,6X14

92154-1807

$2.28

92154C

BOLT,SOCKET,6X22

92154-1810

$2.95

92161

DAMPER,30X20X2

92161-0833

$1.44

92161A

DAMPER,30X70X5

92161-1127

$5.84

92161B

DAMPER,40X40X10

92161-1603

$1.69

92200

WASHER,6.2X15X1.2

92200-1762

$0.95
