2025 Kawasaki Ninja H2® ABS Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2025 Kawasaki Ninja H2® ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

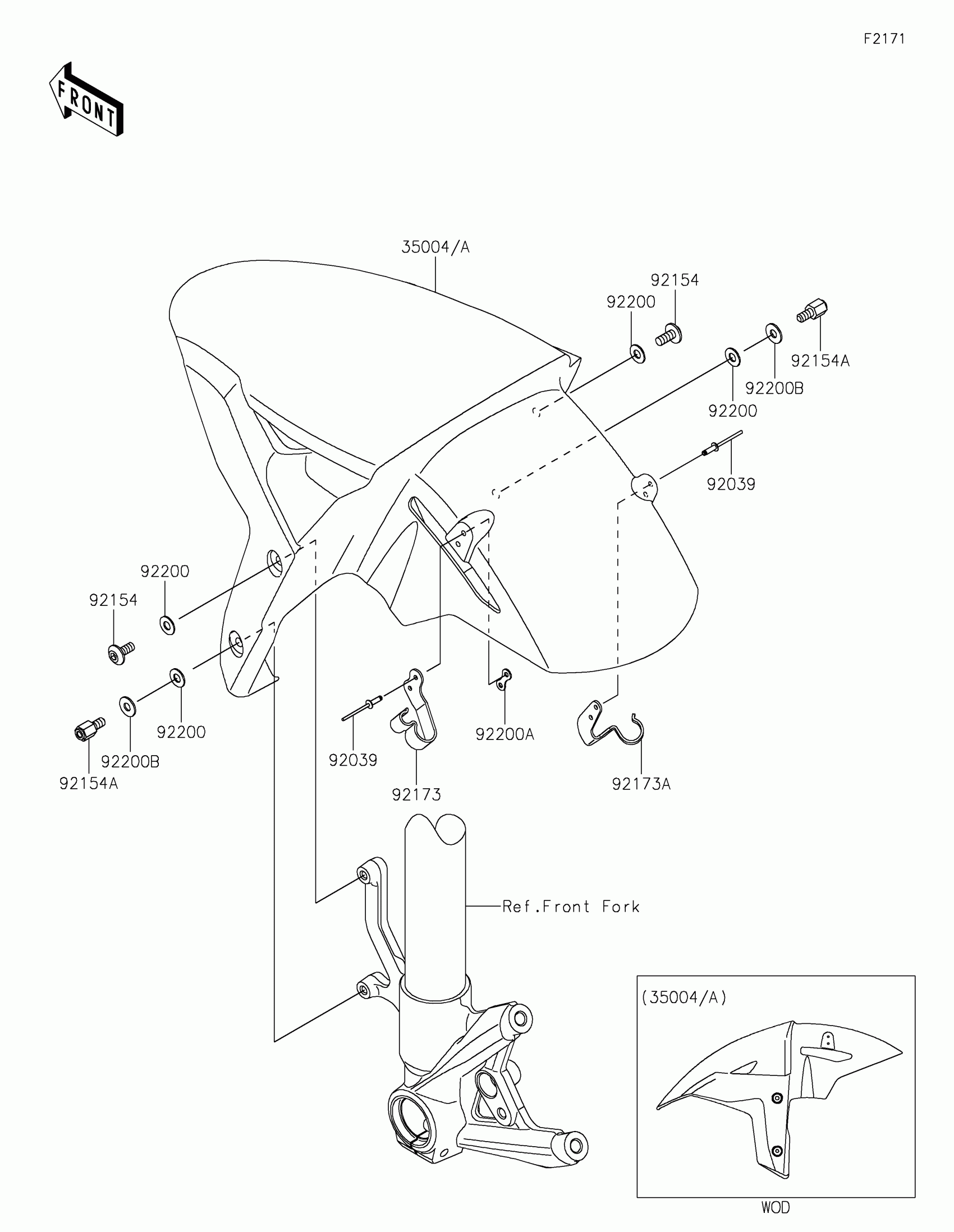

2025 Kawasaki Ninja H2® ABS Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35004

FENDER-FRONT,M.C.S.BLACK

35004-0362-53X

1
Out of stock

92039

RIVET,3.2X9.5

92039-0752

1
Out of stock

92154

BOLT,SOCKET,6X14

92154-0745

1
Out of stock

92154A

BOLT,6MM

92154-0746

1
Out of stock

92173

CLAMP,FENDER,LH

92173-1376

1
Out of stock

92173A

CLAMP,FENDER,RH

92173-1481

1
Out of stock

92200

WASHER,6.5X14X1

92200-1388

1
Out of stock

92200A

WASHER

92200-1757

1
Out of stock

92200B

WASHER,6.2X15X1.2

92200-1762

1
Out of stock
