2025 Kawasaki Ninja H2® ABS Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2025 Kawasaki Ninja H2® ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

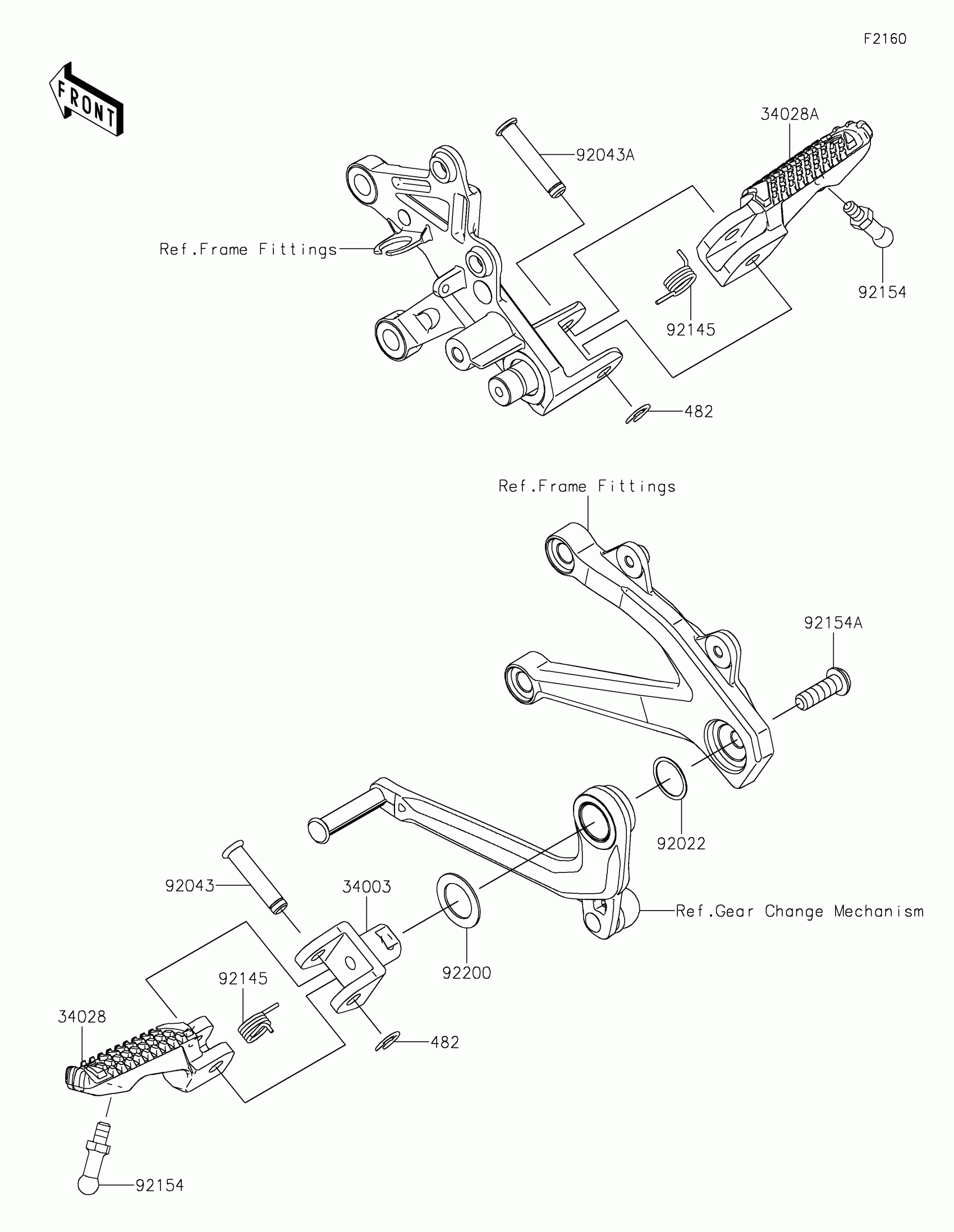

2025 Kawasaki Ninja H2® ABS Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34003

HOLDER-STEP,LH,GRAY

34003-0161-53G

1
Out of stock

34028

STEP,LH

34028-0342

1

$80.98

In stock

34028A

STEP,RH

34028-0343

1

$80.98

In stock

92022

WASHER,18.3X22X0.5

92022-271

1
Out of stock

92043

PIN,8X36.5

92043-0856

1
Out of stock

92043A

PIN,8X40.5

92043-0857

1
Out of stock

92145

SPRING,13X1.6

92145-1656

1
Out of stock

92154

BOLT,BANK SENSOR,6X10

92154-1718

1
Out of stock

92154A

BOLT,SOCKET,8X25

92154-1737

1
Out of stock

92200

WASHER,18.3X28X1

92200-1680

1
Out of stock

482

CIRCLIP-TYPE-E

482EB7000

1
Out of stock
