1985 Kawasaki Ninja® Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 1985 Kawasaki Ninja®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

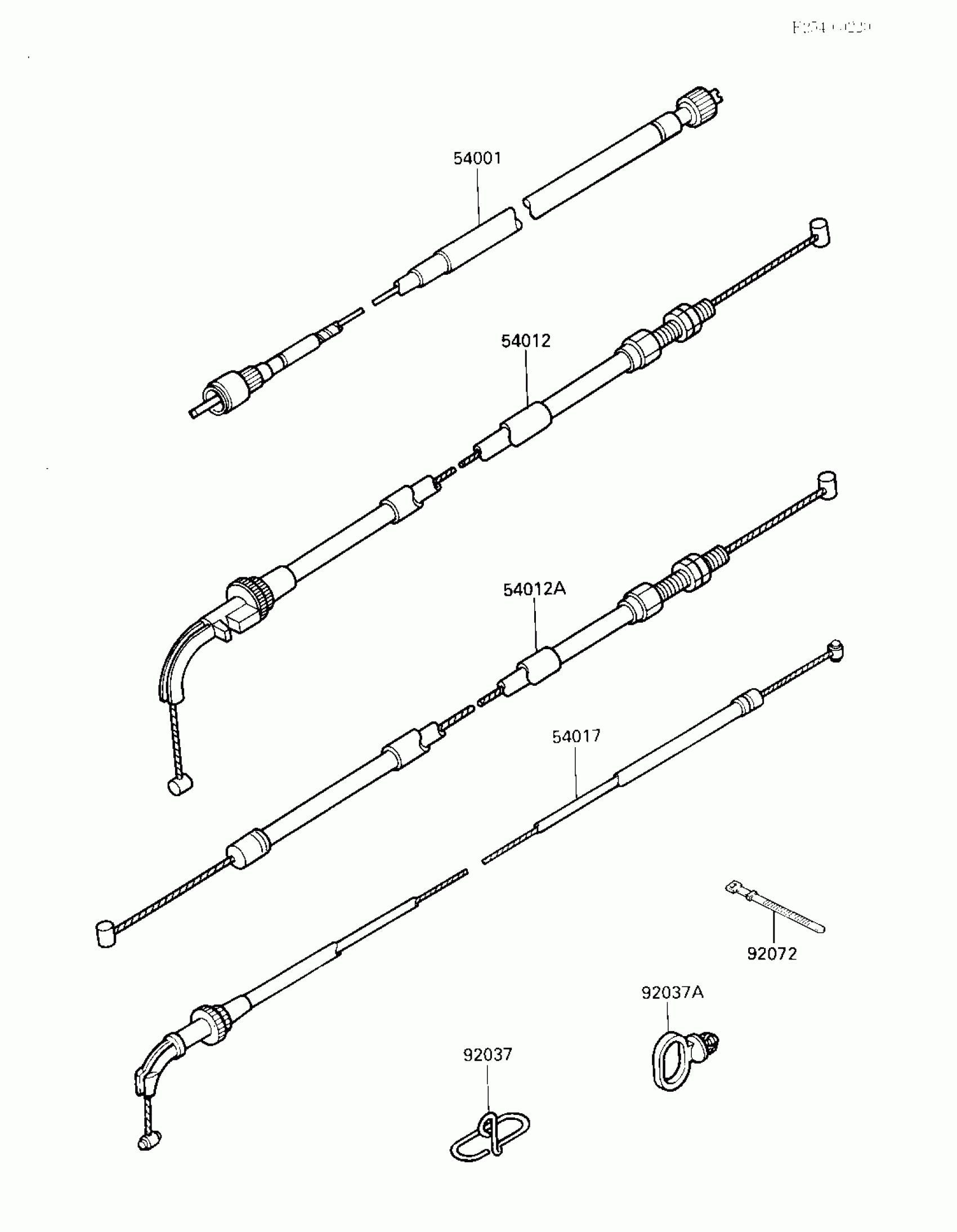

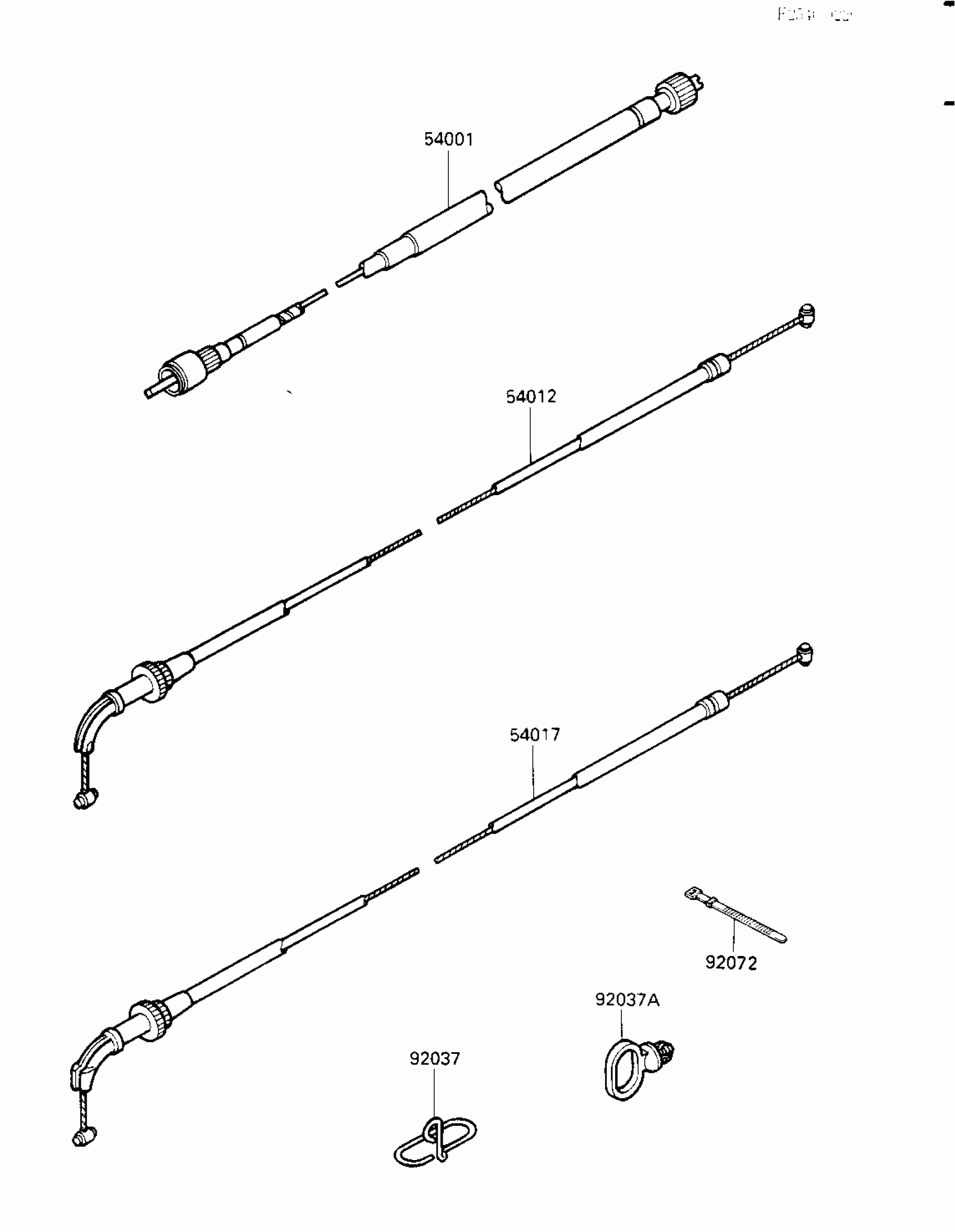

1985 Kawasaki Ninja® Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

54001

CABLE,SPEEDOMETER

54001-1014

1
Out of stock

54012

CABLE-THROTTLE

54012-1220

1
Out of stock

54017

CABLE-STARTER

54017-1053

1
Out of stock

92037

CLAMP,CABLE

92037-1031

1

$11.41

In stock

92037A

CLAMP,CABLE

92037-1459

1

$20.18

In stock

92072

BAND,L=186

92072-056

1

$3.97

In stock
← Rear Master Cylinder Front Fork →
