1985 Kawasaki Ninja® Rear Master Cylinder Diagram

← All diagrams

Find the part on the Rear Master Cylinder diagram for your 1985 Kawasaki Ninja®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

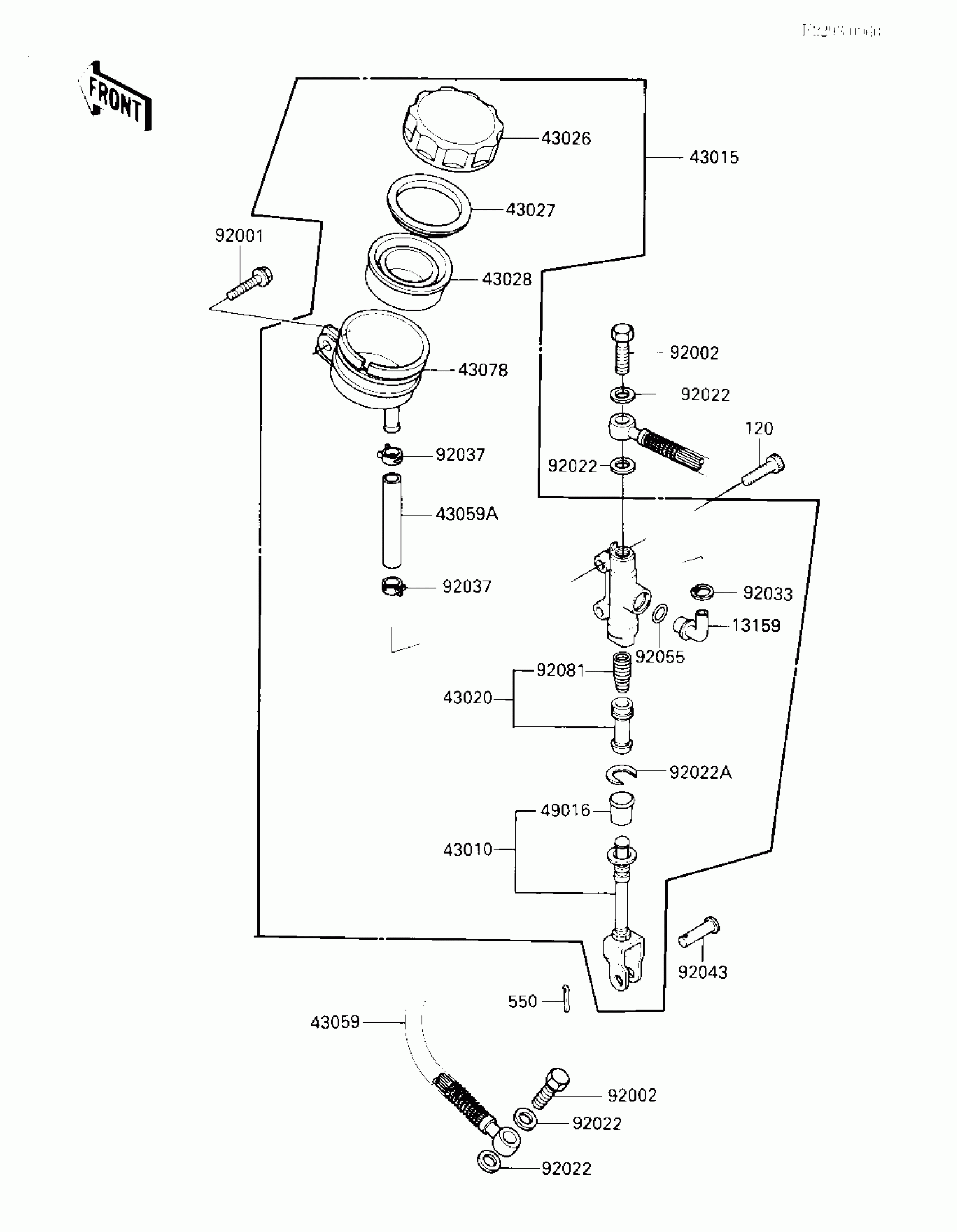

1985 Kawasaki Ninja® Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13159

1

$13.39

In stock

43010

ROD-ASSY-BRAKE

43010-1053

1
Out of stock

43015

CYLINDER-ASSY-MASTER,

43015-1261

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1057

1

$59.90

In stock

43026

CAP-BRAKE

43026-1051

1

$31.36

In stock

43027

PLATE-DIAPHRAGM

43027-1051

1

$4.22

In stock

43028

1

$15.01

In stock

43059

HOSE-BRAKE,RR,L=480

43059-1261

1

$92.86

In stock

43059A

HOSE-BRAKE,RR,L=480

43059-1261

1

$92.86

In stock

43078

RESERVOIR

43078-1054

1

$28.80

In stock

49016

1

$12.73

In stock

92001

BOLT,6X20

92001-1460

1

$3.12

In stock

92002

BOLT,OIL,L=23

92002-1888

1
Out of stock

92022

WASHER,10.5X15X1.5

43067-001

1

$1.81

In stock

92022A

WASHER,CIRCRIP

92022-1601

1
Out of stock

92033

RING-SNAP,20.5MM

92033-1186

1

$3.94

In stock

92037

CLAMP,BRAKE HOSE

92037-1547

1

$11.81

In stock

92043

PIN,8X16

92043-1013

1
Out of stock

92055

RING-O,MASTER CYLINDER

92055-1251

1
Out of stock

92081

1

$11.69

In stock

120

BOLT-SOCKET,8X35

120P0835

1
Out of stock

550

PIN COTTER 2.0X15

550D2015

1
Out of stock
