1985 Kawasaki Ninja® Rear Suspension Diagram

← All diagrams

Find the part on the Rear Suspension diagram for your 1985 Kawasaki Ninja®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

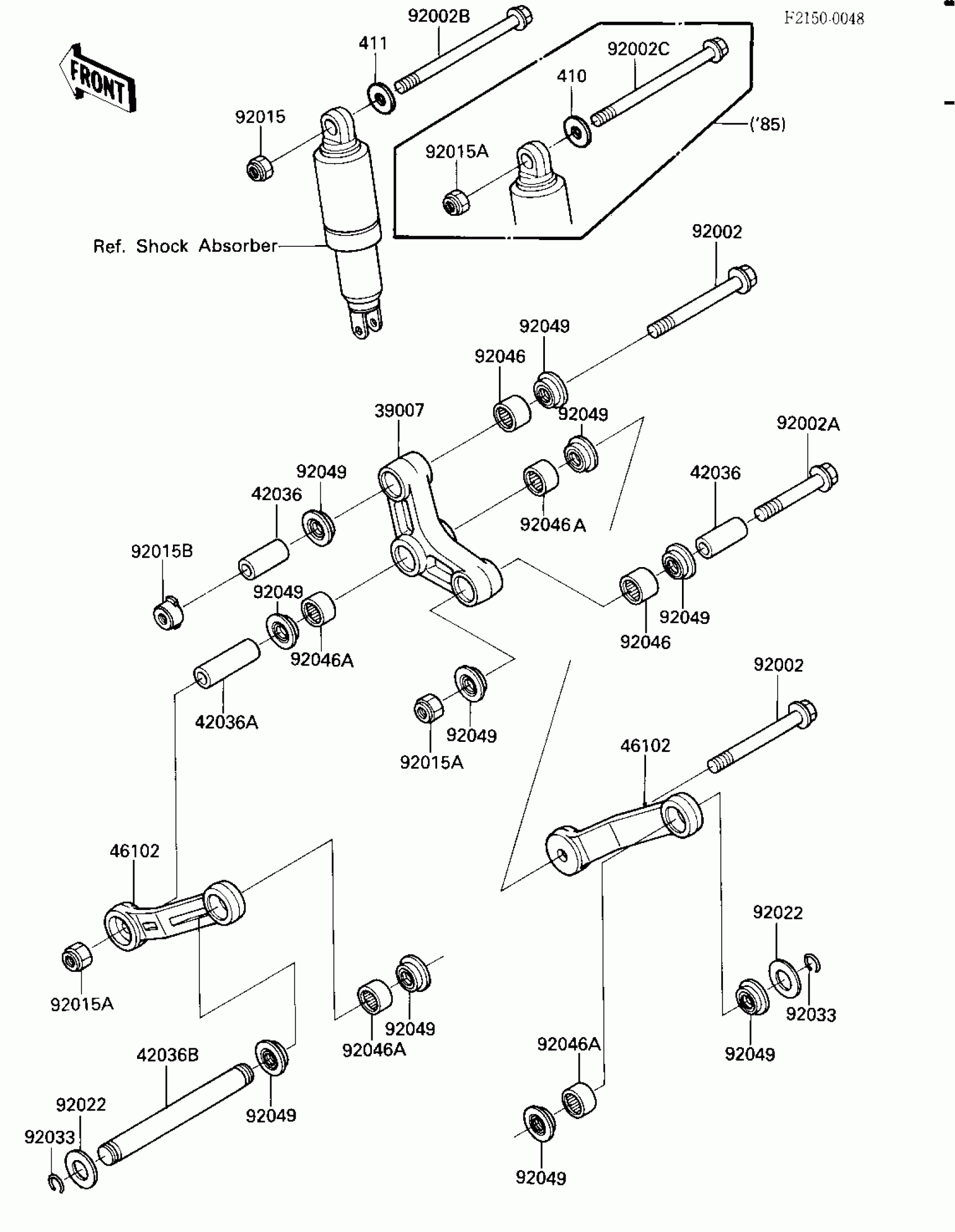

1985 Kawasaki Ninja® Rear Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39007

ARM-SUSP,UNI TRAK

39007-1055

1

$198.65

In stock

42036

SLEEVE,12.1X20X40

42036-1108

1

$20.37

In stock

42036A

SLEEVE,12.1X20X50

42036-1111

1

$20.61

In stock

42036B

SLEEVE

42036-1137

1
Out of stock

46102

ROD,UNI TRAK

46102-1108

1

$135.20

In stock

92002

BOLT,FLANGED,12X85

92002-1463

1

$18.36

In stock

92002A

BOLT,FLANGED,12X60

92002-1464

1

$12.19

In stock

92002C

BOLT,FLANGED,12X137.5

92002-1466

1
Out of stock

92015A

NUT,LOCK,12MM,BLACK

92015-1190

1
Out of stock

92015B

NUT,12MM

92015-1482

1

$12.58

In stock

92022

WASHER

92022-1590

1
Out of stock

92033

RING-SNAP,18.3MM

92033-1168

1

$3.62

In stock

92046

BEARING-NEEDLE,BM202726

92046-1110

1
Out of stock

92046A

BEARING-NEEDLE,BM202715

92046-1112

1
Out of stock

92049

SEAL-OIL,ARM

92049-1109

1
Out of stock

410

WASHER-PLAIN-SMALL,12MM

410B1200

1
Out of stock
