1985 Kawasaki Ninja® Front Wheel/hub Diagram

← All diagrams

Find the part on the Front Wheel/hub diagram for your 1985 Kawasaki Ninja®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

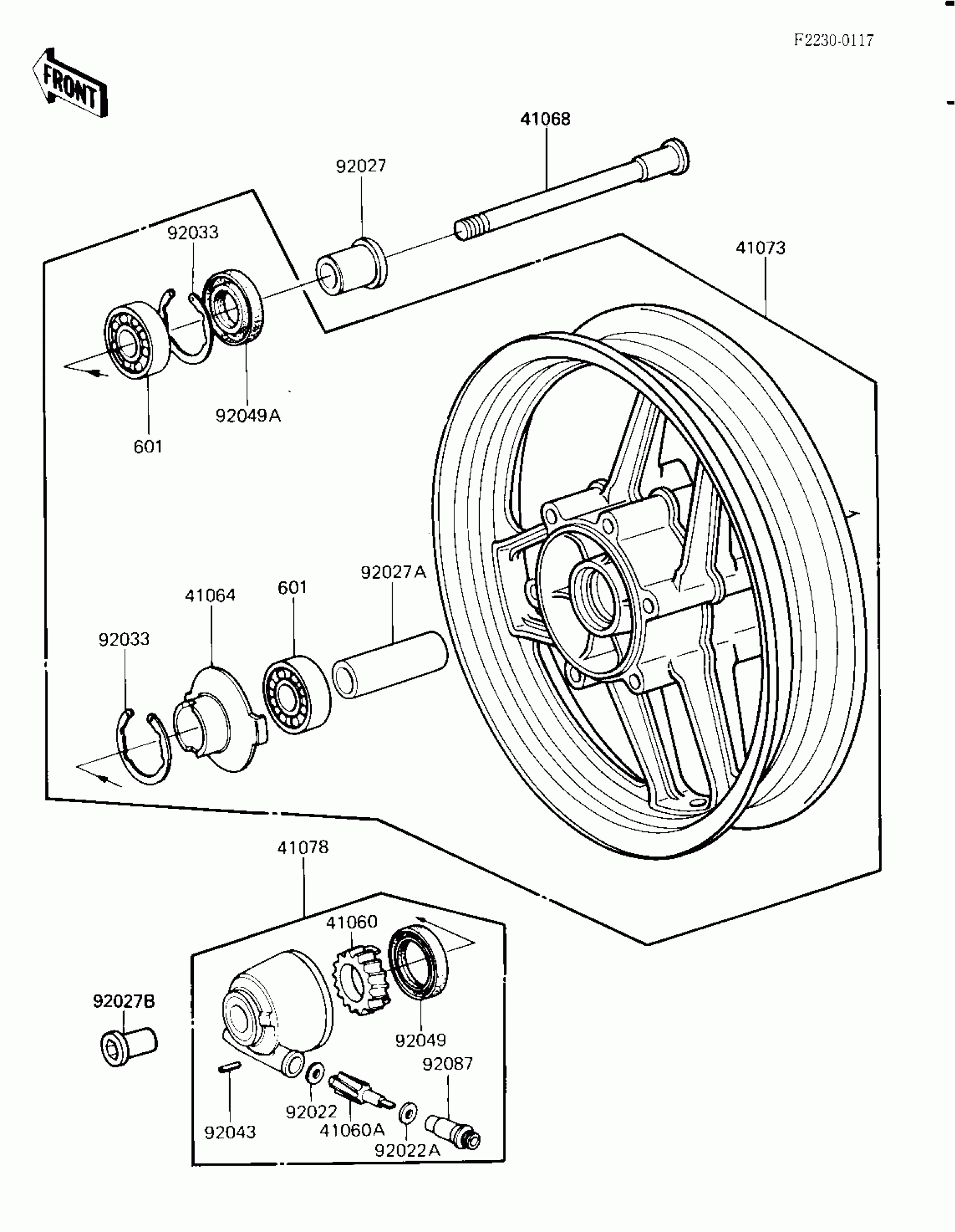

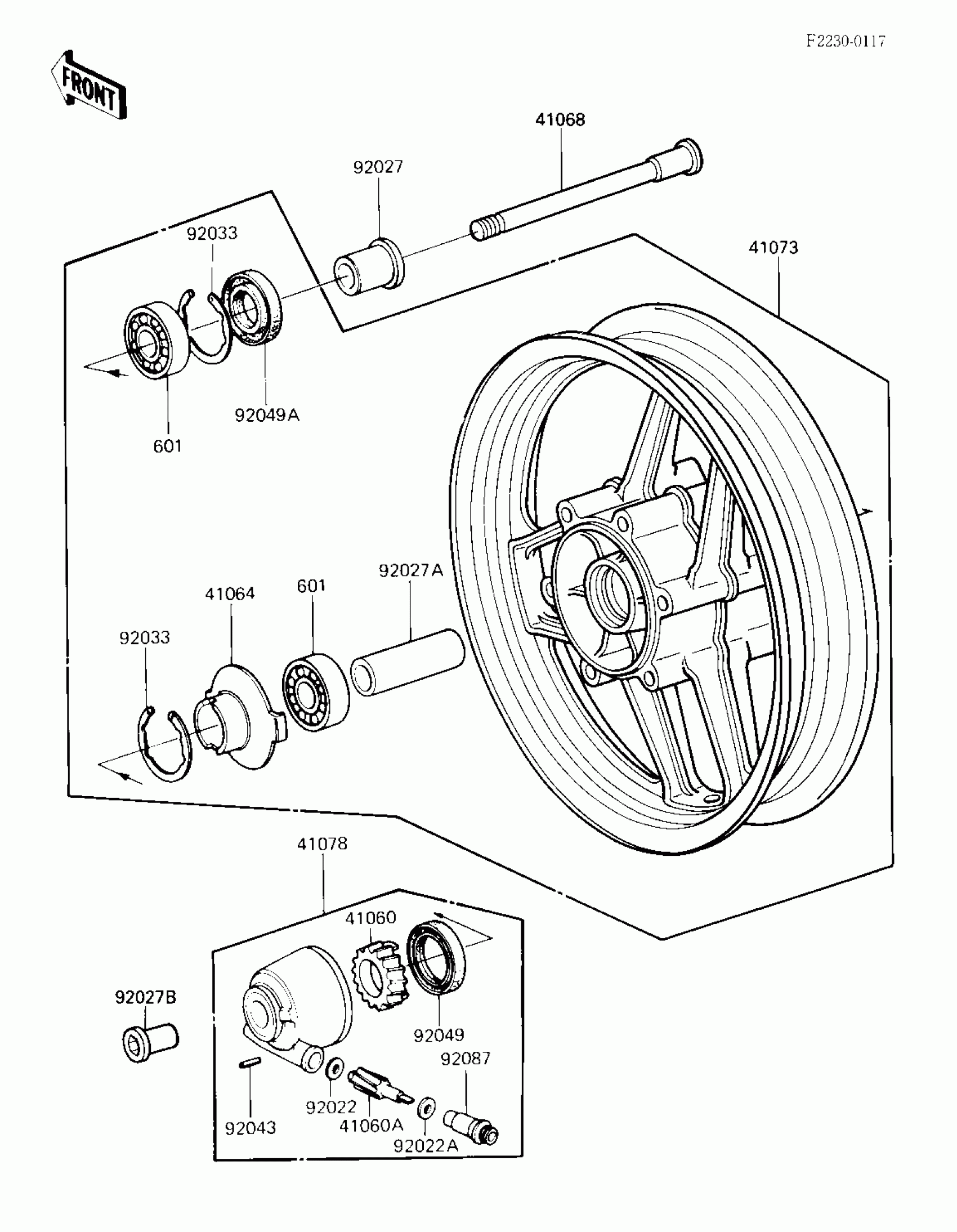

1985 Kawasaki Ninja® Front Wheel/hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41060

1

$20.37

In stock

41060A

GEAR-METER SCREW,9T

41060-1035

1
Out of stock

41064

1

$11.81

In stock

41068

AXLE,FR

41068-1164

1
Out of stock

41073

WHEEL-ASSY,FR,M.GRAY

41073-1299-J9

1

$701.08

In stock

41078

1

$135.73

In stock

92022

WASHER,5.1X9X0.4

41063-001

1

$4.17

In stock

92022A

WASHER,5.1X9X0.4

41063-001

1

$4.17

In stock

92027

COLLAR,L=30

92027-1225

1

$16.49

In stock

92027A

COLLAR,L=71

92027-1725

1

$13.39

In stock

92027B

1

$26.31

In stock

92033

RING-SNAP,42MM

92033-1041

1

$4.88

In stock

92043

PIN,SPRING

41082-001

1

$3.53

In stock

92049

SEAL-OIL,BJN30427-C3

92049-1057

1
Out of stock

92049A

SEAL-OIL,BJN22425

92049-1058

1
Out of stock

92087

BUSHING-METER GEAR

92087-1002

1

$22.34

In stock

601

UNAVAILABLE IN PRICE BOOK

601B63020

1
Out of stock
