1985 Kawasaki Ninja® Shock Absorber Diagram

← All diagrams

Find the part on the Shock Absorber diagram for your 1985 Kawasaki Ninja®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

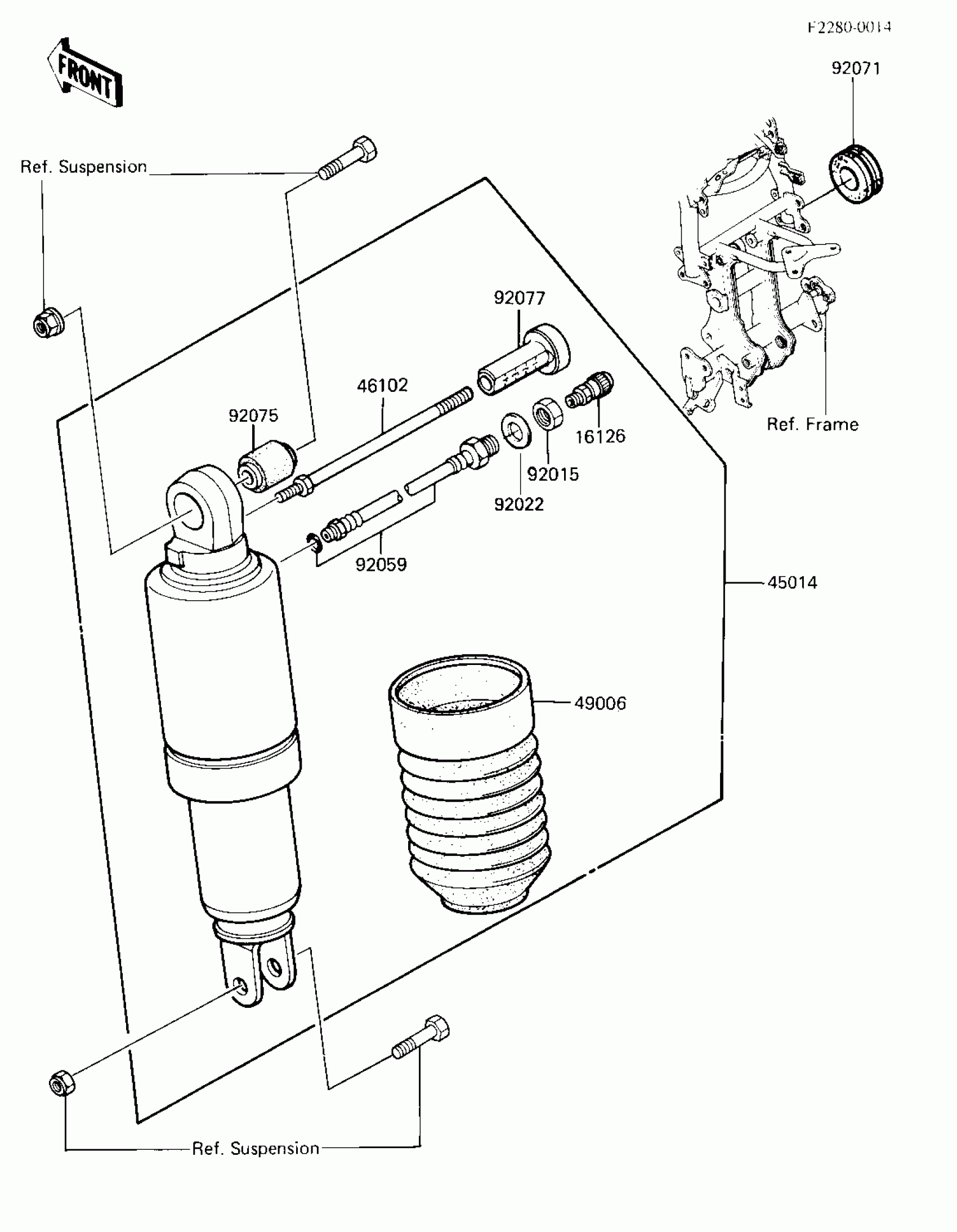

1985 Kawasaki Ninja® Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

16126

VALVE,AIR

16126-1052

1

$32.11

In stock

45014A

SHOCKABSORBER

45014-1302

1

$1,098.87

In stock

46102

1

$11.08

In stock

49006

BOOT,RR SHOCKABSORBER

49006-1151

1
Out of stock

92015

NUT,14MM

92015-1305

1
Out of stock

92022

WASHER

92022-1494

1

$4.25

In stock

92059

TUBE,SHOCKABSORBER,L=170

92059-1364

1
Out of stock

92071

GROMMET

92071-056

1

$3.39

In stock

92075A

DAMPER,SHOCKABSORBER

92075-1654

1
Out of stock

92077

1

$20.54

In stock
