1985 Kawasaki Ninja® Swing Arm Diagram

← All diagrams

Find the part on the Swing Arm diagram for your 1985 Kawasaki Ninja®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

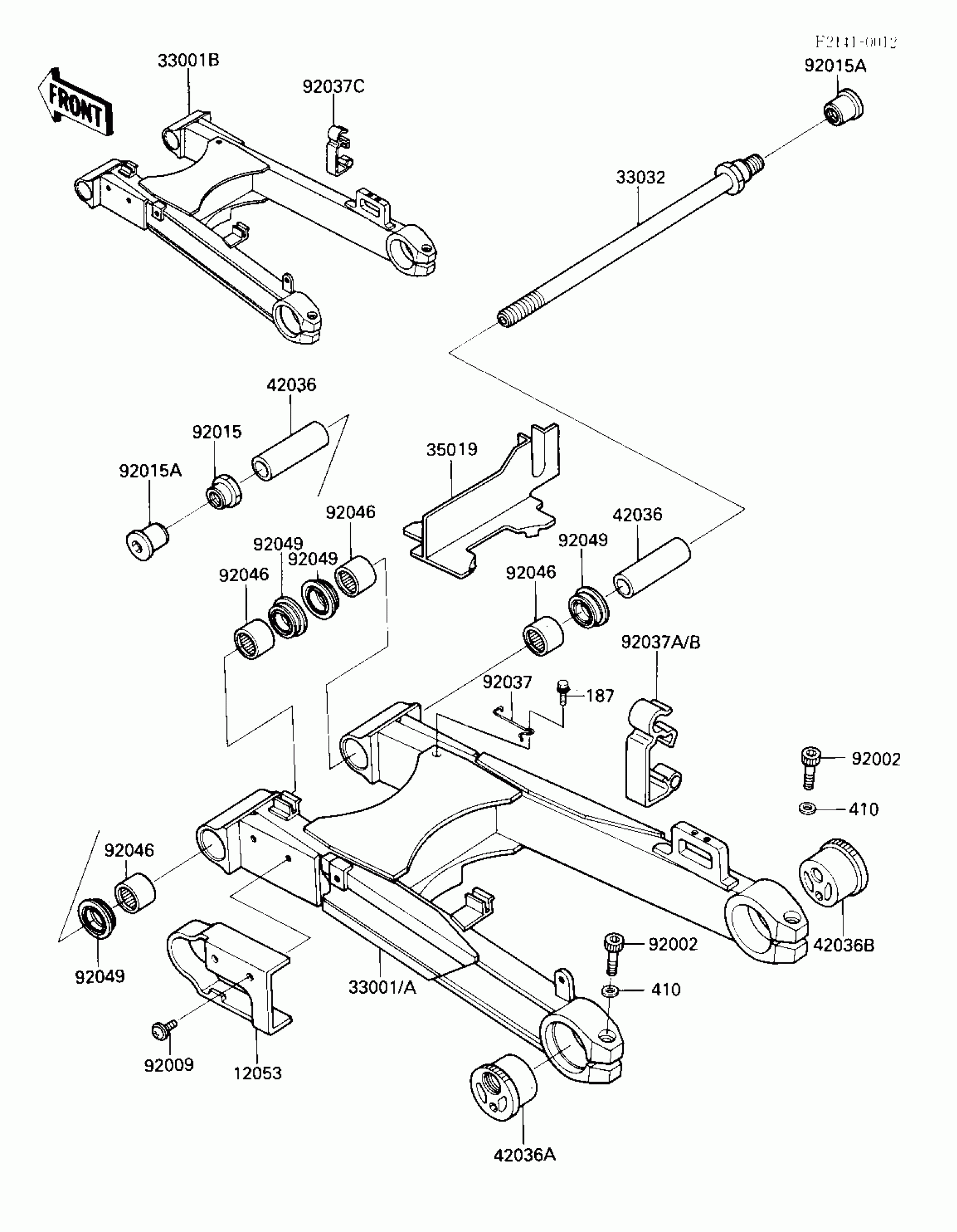

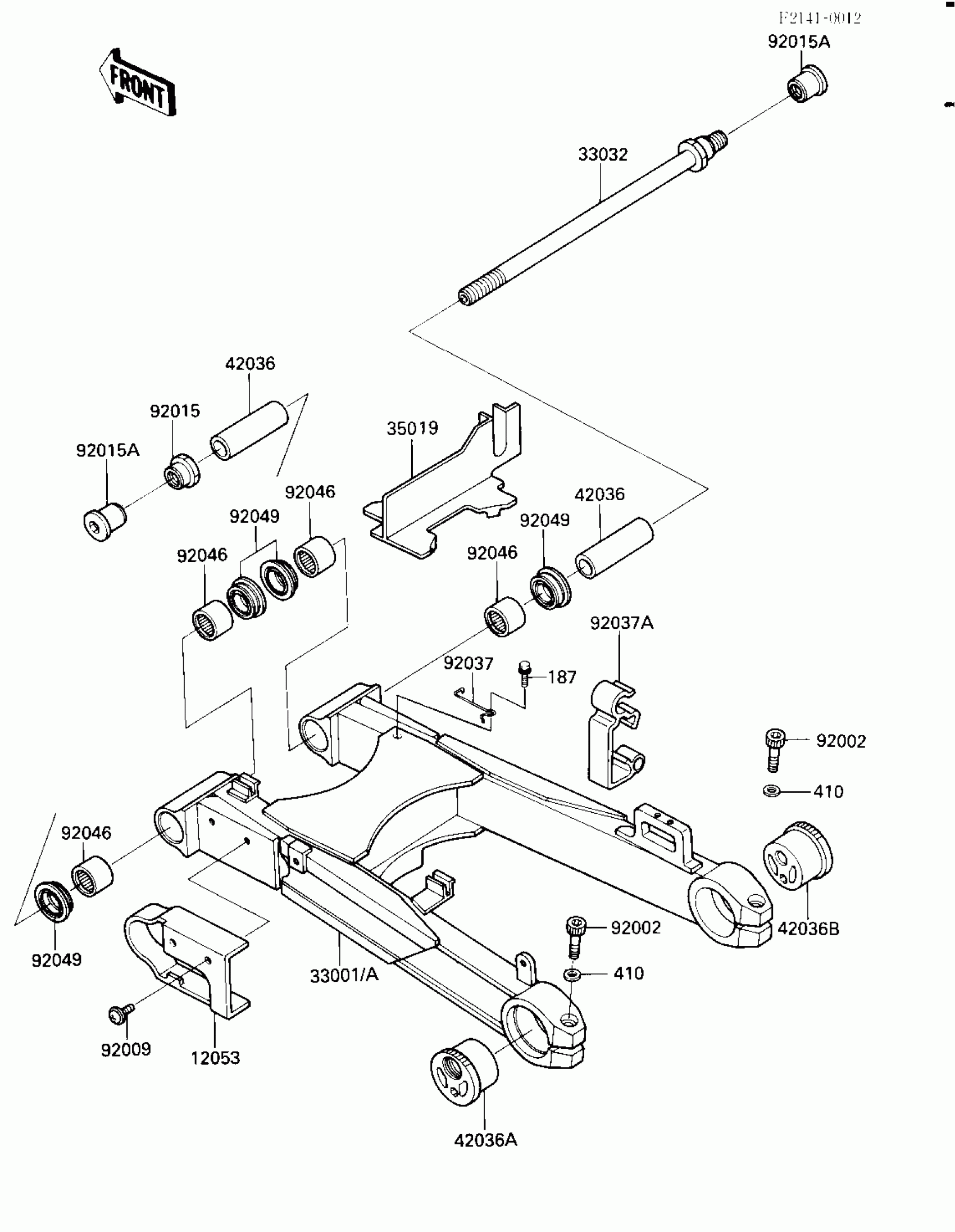

1985 Kawasaki Ninja® Swing Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12053

GUIDE-CHAIN

12053-1119

1

$78.35

In stock

33001A

ARM-COM-SWING,G.SILV

33001-1231-F2

1

$768.10

In stock

33032

SHAFT-SWING ARM

33032-1105

1

$59.96

In stock

35019

FLAP,SWING ARM

35019-1124

1
Out of stock

42036

SLEEVE,SWING ARM

42036-1114

1
Out of stock

42036A

SLEEVE,AXLE,LH

42036-1147

1

$84.05

In stock

92002

BOLT,SOCKET,10X40

92002-1452

1

$7.14

In stock

92009

SCREW,6X10,WHITE

92009-1286

1
Out of stock

92015

NUT,SWING ARM SHAFT

92015-1333

1
Out of stock

92015A

NUT,SWING ARM

92015-1334

1
Out of stock

92037

CLAMP

92037-1565

1
Out of stock

92037A

CLAMP,BRAKE HOSE

92037-1674

1

$8.39

In stock

92046

1

$23.73

In stock

92049

SEAL-OIL,MHA25X33X5.7F

92049-1166

1
Out of stock

187

BOLT-UPSET-WSP

187D0610

1

$4.15

In stock

410

W-PLAIN-S

410E1000

1

$0.63

In stock
