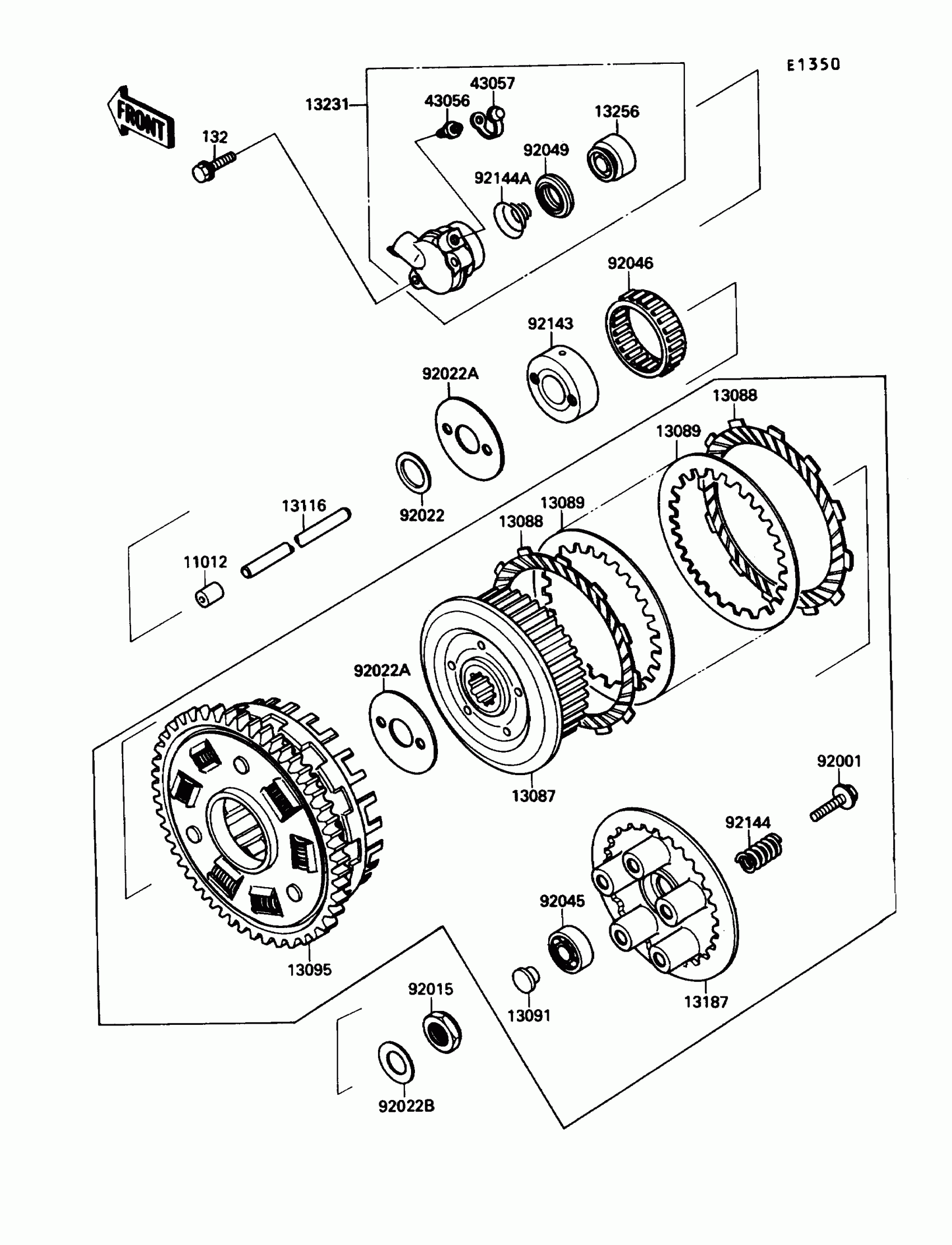

1989 Kawasaki Ninja® 750R Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1989 Kawasaki Ninja® 750R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki Ninja® 750R Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL

132W0625

1
Out of stock

601

1

$12.85

In stock

11012

CAP,PUSHROD

11012-1569

1
Out of stock

13087

HUB-CLUTCH

13087-042

1
Out of stock

13088

PLATE-FRICTION

13088-1051

1

$13.36

In stock

13089

PLATE-CLUTCH

13089-1066

1

$12.24

In stock

13091

HOLDER,CLUTCH PUSH ROD

13091-1085

1
Out of stock

13095

HOUSING-COMP-CLUTCH

13095-1149

1
Out of stock

13116

ROD-PUSH,CLUTCH

13116-1126

1
Out of stock

13187

1

$76.98

In stock

13231

RELEASE-ASSY-CLUTCH

13231-1062

1
Out of stock

13256

PISTON

13256-1052

1
Out of stock

43056

BREATHER

43056-1052

1

$11.32

In stock

43057

CAP-BREATHER

43057-1001

1

$3.89

In stock

92001

BOLT,FLANGED,6X18

92001-1066

1

$4.93

In stock

92015

NUT,20MM

92015-1555

1

$10.37

In stock

92022

WASHER

92022-1719

1

$13.31

In stock

92022B

WASHER,CLUTCH THRUST

92022-1846

1
Out of stock

92022D

WASHER,20.3X36X3.7

92022-1868

1
Out of stock

92046

BEARING-NEEDLE,K55X63X20

92046-1159

1
Out of stock

92049

SEAL-OIL,PISTON

92049-1165

1
Out of stock

92143

COLLAR,INPUTSHAFT

92143-1017

1

$103.64

In stock

92144

SPRING,CLUTCH

92144-1036

1

$8.78

In stock

92144A

1

$6.75

In stock
