1987 Kawasaki Ninja® 750R Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1987 Kawasaki Ninja® 750R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

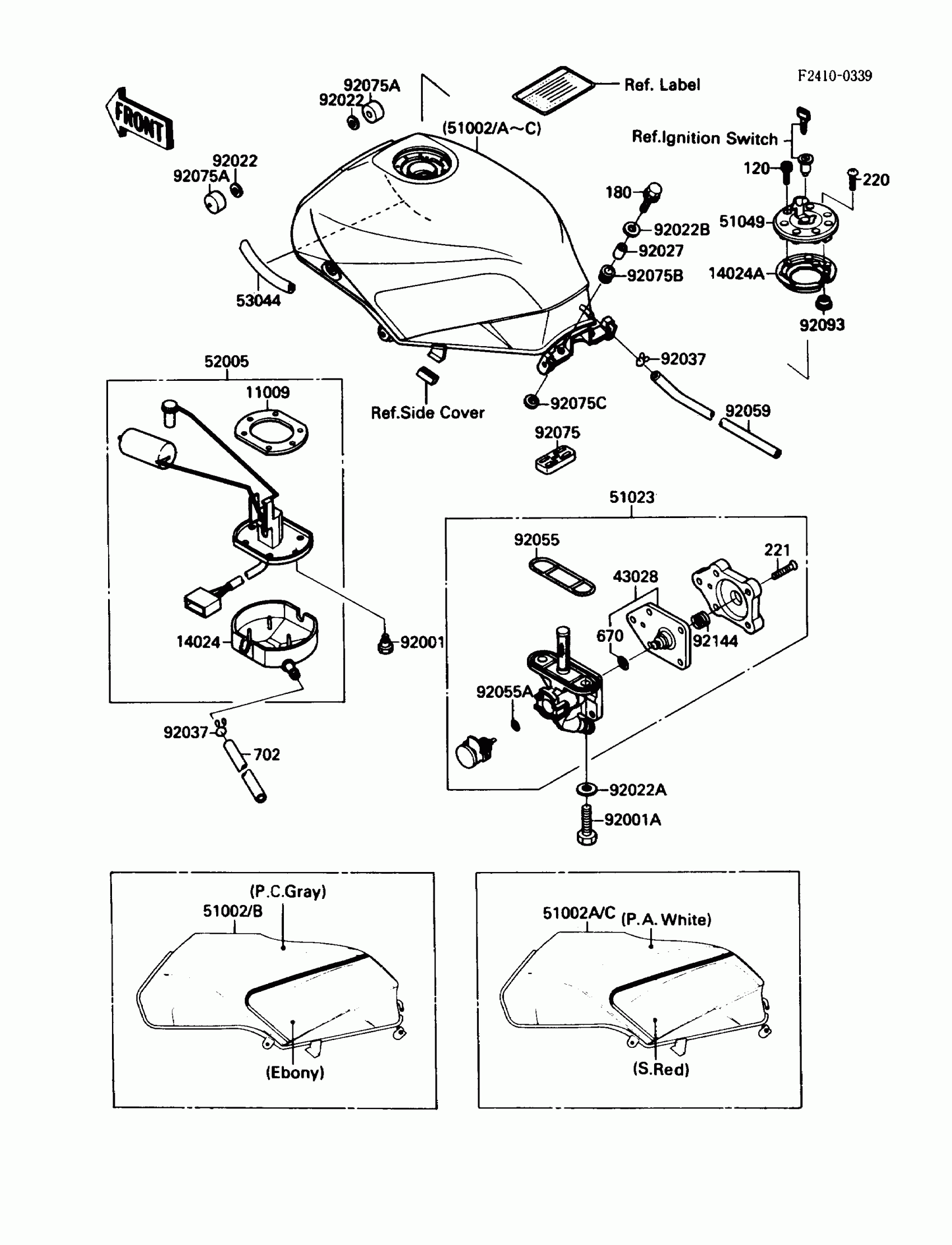

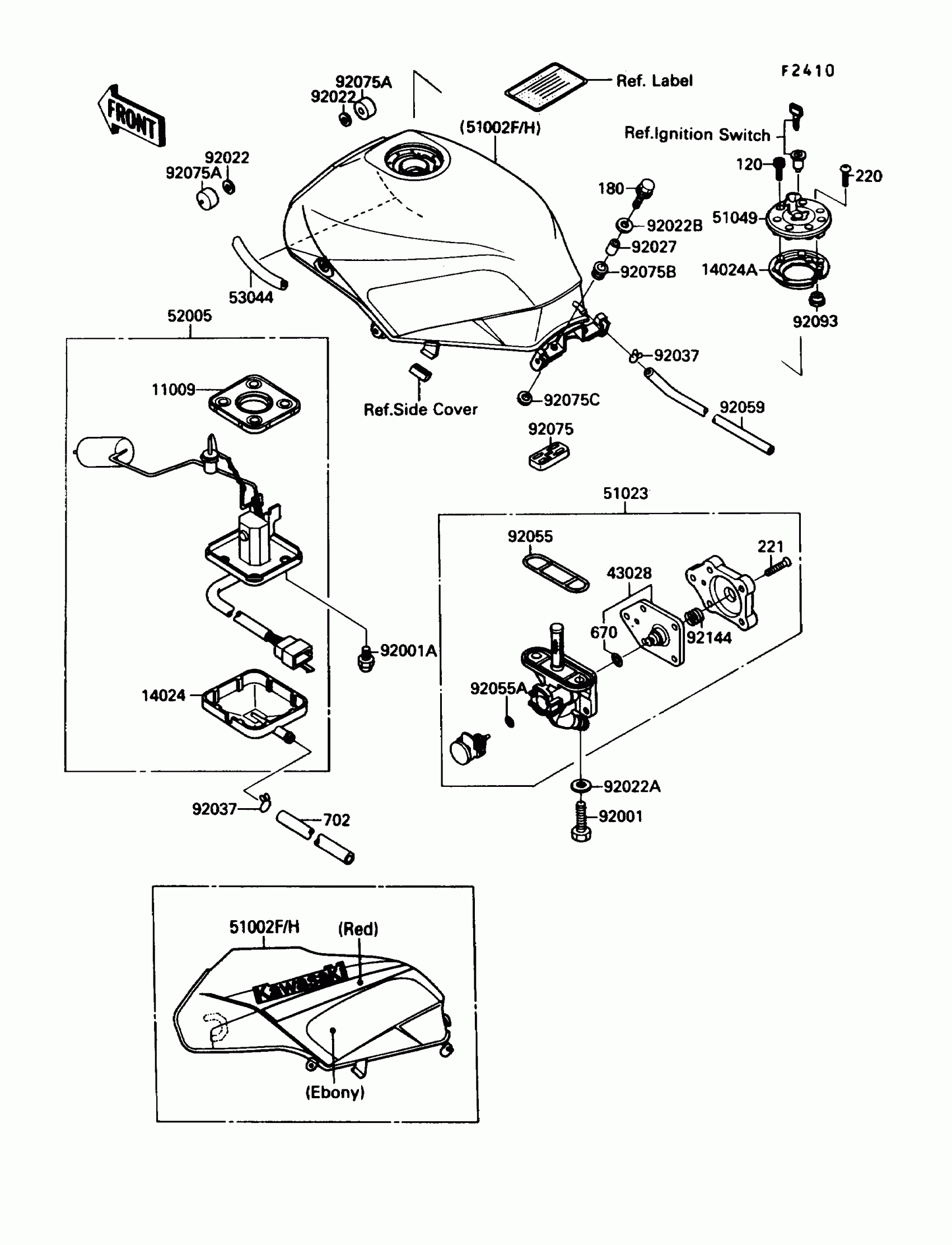

1987 Kawasaki Ninja® 750R Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,5X12

120S0512

1
Out of stock

180

BOLT-UPSET-WS

180G0625

1
Out of stock

220

SCREW-PAN-CROSS

220C0508

1
Out of stock

221

SCREW-CSK-CROS,4X14

221B0414

1
Out of stock

670

O RING,4MM

670B1504

1
Out of stock

702

TUBE-RUBBER

702A07480

1
Out of stock

11009

GASKET,FUEL GAUGE

11009-1037

1
Out of stock

14024

COVER,FUEL GAUGE

14024-1434

1
Out of stock

14024A

COVER,TANK CAP

14025-1913

1
Out of stock

43028

DIAPHRAGM,TAP

43028-1068

1
Out of stock

51023

TAP-ASSY,FUEL

51023-1133

1
Out of stock

51049

CAP-TANK,FUEL

51049-1079

1
Out of stock

52005

GAUGE,FUEL

52005-1079

1
Out of stock

53044

TRIM,L=120

53044-1171

1
Out of stock

92001

BOLT,FUEL GAUGE

92001-1069

1
Out of stock

92001A

BOLT,6X20

92001-1091

1
Out of stock

92022

WASHER,10.5X26X2.3

92022-044

1
Out of stock

92022A

WASHER-PLAIN

92022-183

1
Out of stock

92022B

WASHER,6.5X22X1.6

92022-237

1
Out of stock

92027

COLLAR,6.8X10X14.5

92027-156

1
Out of stock

92037

CLAMP,TUBE

92037-147

1
Out of stock

92055

RING-O,FUEL TAP PACKING

92055-1112

1
Out of stock

92055A

RING-O,TAP BOTTOM

92055-1377

1
Out of stock

92059

TUBE,6X10X335

92059-1830

1
Out of stock

92075

DAMPER,FUEL TANK,RR

92075-1114

1
Out of stock

92075A

DAMPER,FUEL TANK

92075-125

1
Out of stock

92075B

RUBBER,FENDER COVER

92075-174

1
Out of stock

92075C

DAMPER,FEMALE

92075-175

1
Out of stock

92144

SPRING,TAP DIAPHRAGM

92144-1119

1
Out of stock

51002

TANK-COMP-FUEL,EBONY/P.C.GRAY

51002-5257-T4

1
Out of stock

51002A

TANK-COMP-FUEL,P.A.WHITE/S.RED

51002-5258-W2

1
Out of stock

51002B

TANK-COMP-FUEL,EBONY/P.C.GRAY

51002-5276-T4

1
Out of stock

51002C

TANK-COMP-FUEL,P.A.WHITE/S.RED

51002-5277-W2

1
Out of stock

92093

SEAL,FUEL TANK CAP

92093-1030

1
Out of stock
